BATTERY

GSXR750 2008 (K8) USA (E03)

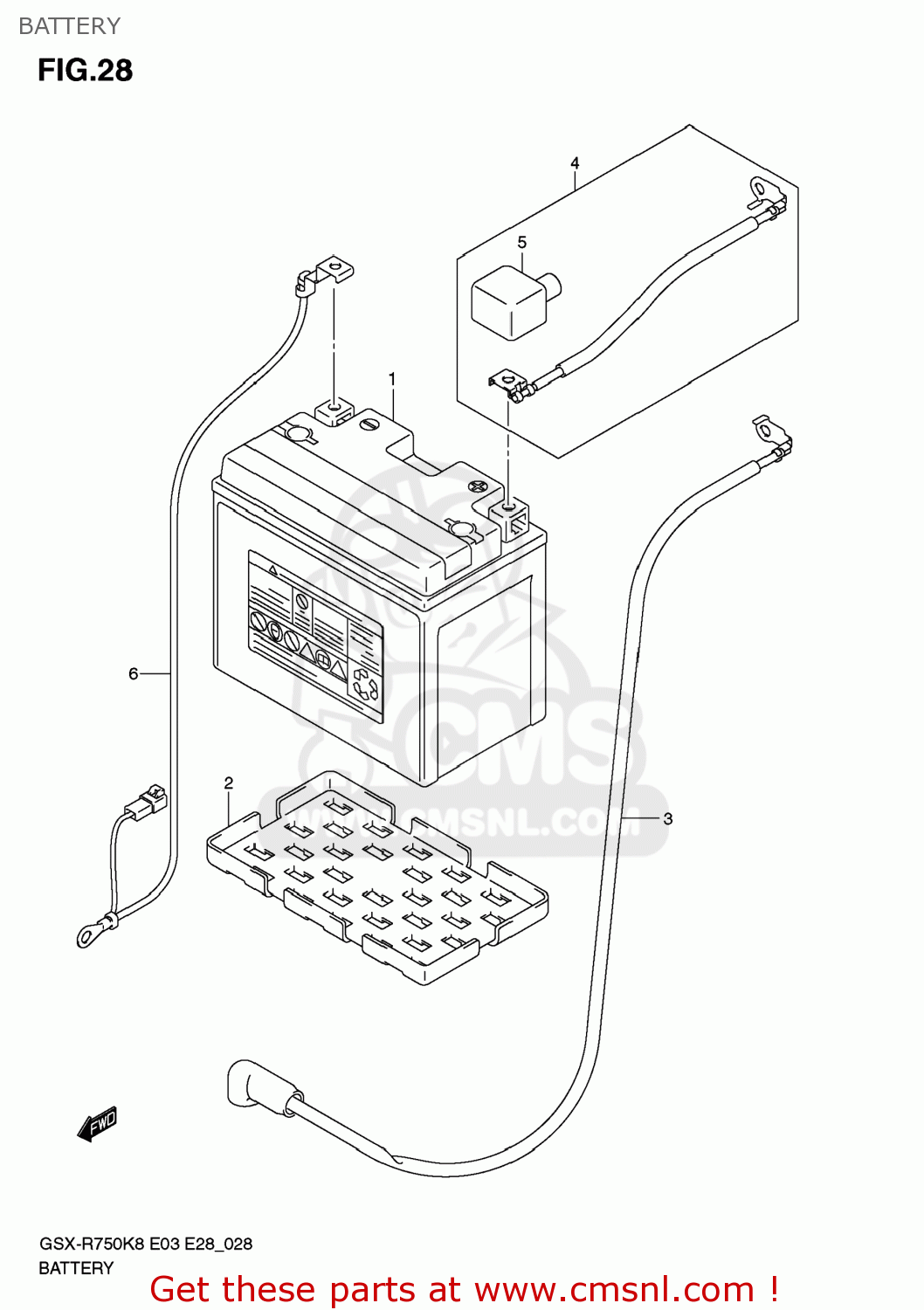

Battery diagram GSXR750 2008 (K8) USA (E03)

BATTERY GSXR750 2008 (K8) USA (E03)

BATTERY GSXR750 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361002F01
ref: 1

BATTERY(YT12A-BS,12V10.5AH)

€ 91.50

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

3381037H00
ref: 3

WIRE,STARTER MOTOR LEAD

€ 26.00

4

3382037H00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 24.00

5

3362416G00
ref: 5

CAP,BATTERY PLUS

€ 4.50

6

3386037H00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 24.50
