FRAME

GSXR750 2008 (K8) USA (E03)

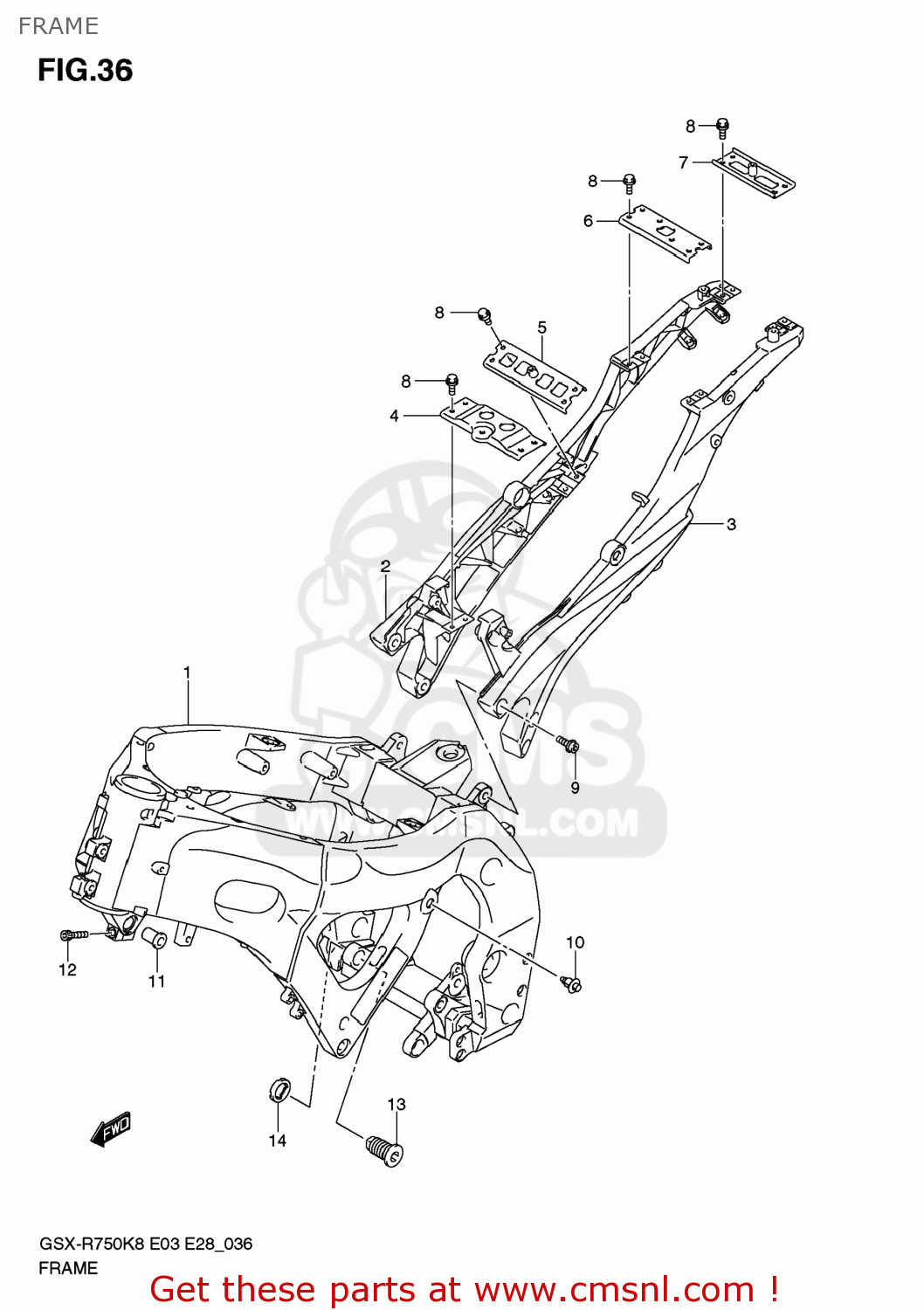

Frame diagram GSXR750 2008 (K8) USA (E03)

FRAME GSXR750 2008 (K8) USA (E03)

FRAME GSXR750 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110002H10YAP
ref: 1

FRAME(BLACK)

€ 4,100.00

2

4121137H00YUG
ref: 2

RAIL,SEAT,R(BLACK)

€ 368.00

3

4122137H00YUG
ref: 3

RAIL,SEAT,L(BLACK)

€ 368.00

4

4177001H00
ref: 4

BRIDGE,SEAT RAIL FR

€ 25.50

5

4274037H00
ref: 5

BRIDGE,SEAT RAIL LWR

€ 17.50

6

4273037H00
ref: 6

BRIDGE,SEAT RAIL UPR

€ 35.00

7

4275037H00
ref: 7

BRIDGE,SEAT RAIL RR

€ 23.00

8

0910306285
ref: 8

BOLT(6X12)

€ 2.50

9

4123318G20
ref: 9

BOLT,SEAT RAIL

€ 7.50

10

4358501H01
ref: 10

PLUG,TANK RAIL

€ 3.50

11

4191140F01
ref: 11

SPACER,ENGINE MOUNTING

€ 16.50

12

0910608185
ref: 12

BOLT(8X32)

€ 2.00

13

4192135F00
ref: 13

BOLT,CRANK CASE ADJUST

€ 35.00

14

4192218G00
ref: 14

NUT,ADJUST BOLT

€ 23.50
