CYLINDER HEAD
GSXR750 2008 (K8) USA (E03)

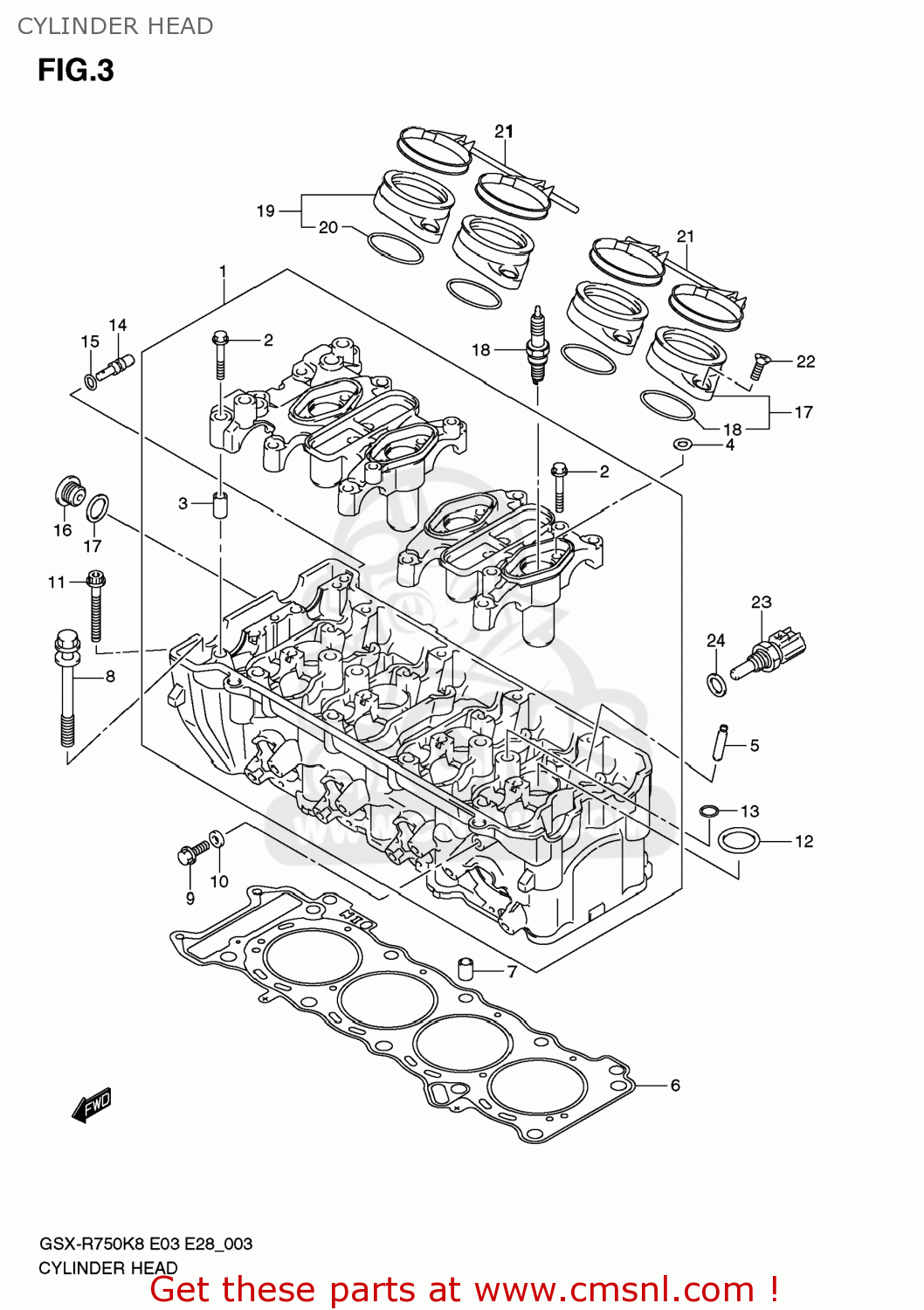

Cylinder head diagram GSXR750 2008 (K8) USA (E03)
CYLINDER HEAD GSXR750 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110038H00
ref: 1
HEAD ASSY,CYLINDER
€ 1,927.00
2
0910306266
ref: 2
BOLT(6X40)
€ 2.50
3
0920608007
ref: 3
PIN(6.2X8X16)
€ 2.50
4
0916806018
ref: 4
GASKET(6.2X13X1.2) (NAS)
€ 2.00
5
1111529G70
ref: 5
GUIDE,VALVE(OS:0.3)
€ 18.50
6
1114102H00
ref: 6
GASKET,CYLINDER HEAD (NAS)
€ 54.50
7
0421111169
ref: 7
PIN
€ 2.00
8
1111729G00
ref: 8
BOLT,CYLINDER HEAD
€ 7.50
9
0910306222
ref: 9
BOLT(6X12)
€ 2.00
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
€ 2.00
11
071200650A
ref: 11
BOLT
€ 2.50
12
1117981402
ref: 12
O-RING
€ 8.50
13
0928011001
ref: 13
O RING(D:2.4,ID:10.8)
€ 4.50
14
0949380005
ref: 14
JET(8)
€ 12.00
15
0928004004
ref: 15
O RING(D:1.2,ID:4)
€ 2.00
16
0924816012
ref: 16
PLUG,16X8
€ 4.50
17
0916816009
ref: 17
GASKET(16X22X0.8) (NAS)
€ 2.00
18-1
0948200558
ref: 18-1
PLUG,SPARK(CR9EIA-9)
€ 21.00
18-2
0948200557
ref: 18-2
PLUG,SPARK(IU27D)
€ 21.00
18-3
0948200556
ref: 18-3
PLUG,SPARK(CR8EIA-9)
€ 20.00
18-4
0948200560
ref: 18-4
PLUG,SPARK(CR10EIA-9)
€ 13.50
18-5
0948200555
ref: 18-5
PLUG,SPARK(IU24D)
€ 20.00
18-6
0948200559
ref: 18-6
PLUG,SPARK(IU31D)
€ 13.50
19
1310138H00
ref: 19
PIPE ASSY,INTAKE
€ 52.50
20
0928046006
ref: 20
O RING(D:2.4,ID:47X42)
€ 8.00
21
1382602H12
ref: 21
CLAMP,INTAKE PIPE
€ 21.00
22
0912006007
ref: 22
BOLT(6X18.4)
€ 2.50
23
1365049X00
ref: 23
SENSOR,TEMP
€ 73.00
24
0916812017
ref: 24
GASKET(12X17X1) (NAS)
€ 2.00
