REAR MASTER CYLINDER
GSXR750 2008 (K8) USA (E03)

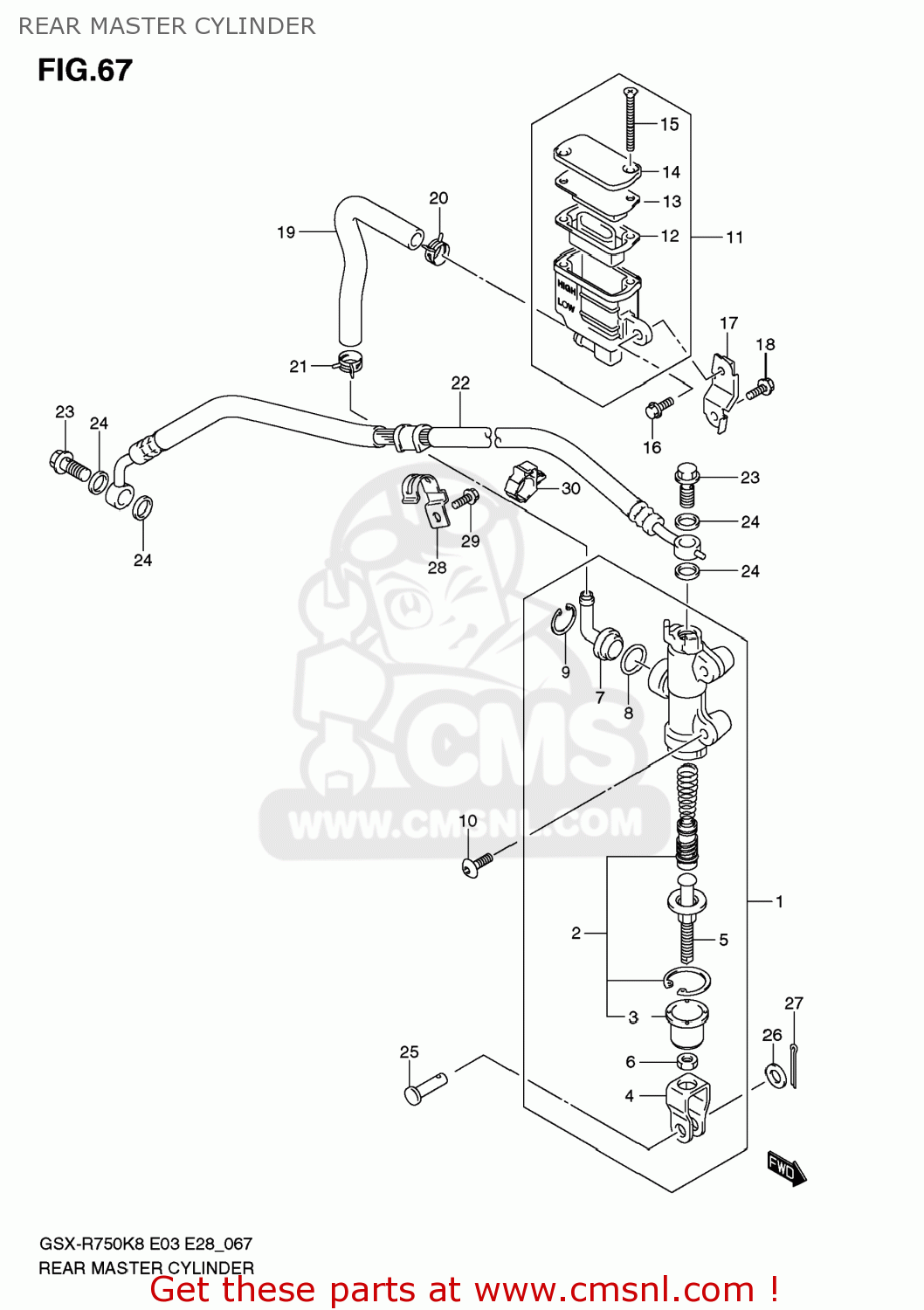

Rear master cylinder diagram GSXR750 2008 (K8) USA (E03)
REAR MASTER CYLINDER GSXR750 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960001H20
ref: 1
CYLINDER ASSY,RR MASTER
€ 194.50
2
6960034820
ref: 2
PISTON/CUP SET
€ 37.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969222H00
ref: 4
YOKE
€ 15.50
5
6967001H00
ref: 5
ROD,PUSH
€ 17.00
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0913906125
ref: 10
SCREW(6X20)
€ 3.00
11
6974001H10
ref: 11
TANK ASSY,RESERVOIR
€ 21.50
12
6966701H00
ref: 12
DIAPHRAGM
€ 4.50
13
6966801H00
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
6966901H00
ref: 14
CAP
€ 8.50
15
6968901H00
ref: 15
SCREW
€ 3.00
16
015470612A
ref: 16
BOLT
€ 2.00
17
6975001H00
ref: 17
BRACKET,RR RESERVOIR TANK
€ 11.00
18
015470612A
ref: 18
BOLT
€ 2.00
19
6973001H10
ref: 19
HOSE,RR RESERVOIR TANK
€ 28.00
20
0940112404
ref: 20
CLIP
€ 2.50
21
0940114410
ref: 21
CLIP
€ 2.50
22
6948001H00
ref: 22
HOSE,RR BRAKE
€ 101.00
23
0936010062
ref: 23
BOLT UNION
€ 5.00
24
0916110009
ref: 24
WASHER(10X15X1.5)
€ 2.00
25
0920006068
ref: 25
PIN(6X18.2)
€ 5.00
26
083220106A
ref: 26
WASHER
€ 2.00
27
041112015A
ref: 27
PIN
€ 1.50
28
6926801H00
ref: 28
CLAMP,RR BRAKE HOSE
€ 11.00
29
015470612A
ref: 29
BOLT
€ 2.00
30
0940317306
ref: 30
CLAMP
€ 2.50
