HEADLAMP

GSXR750 2008 (K8) USA (E03)

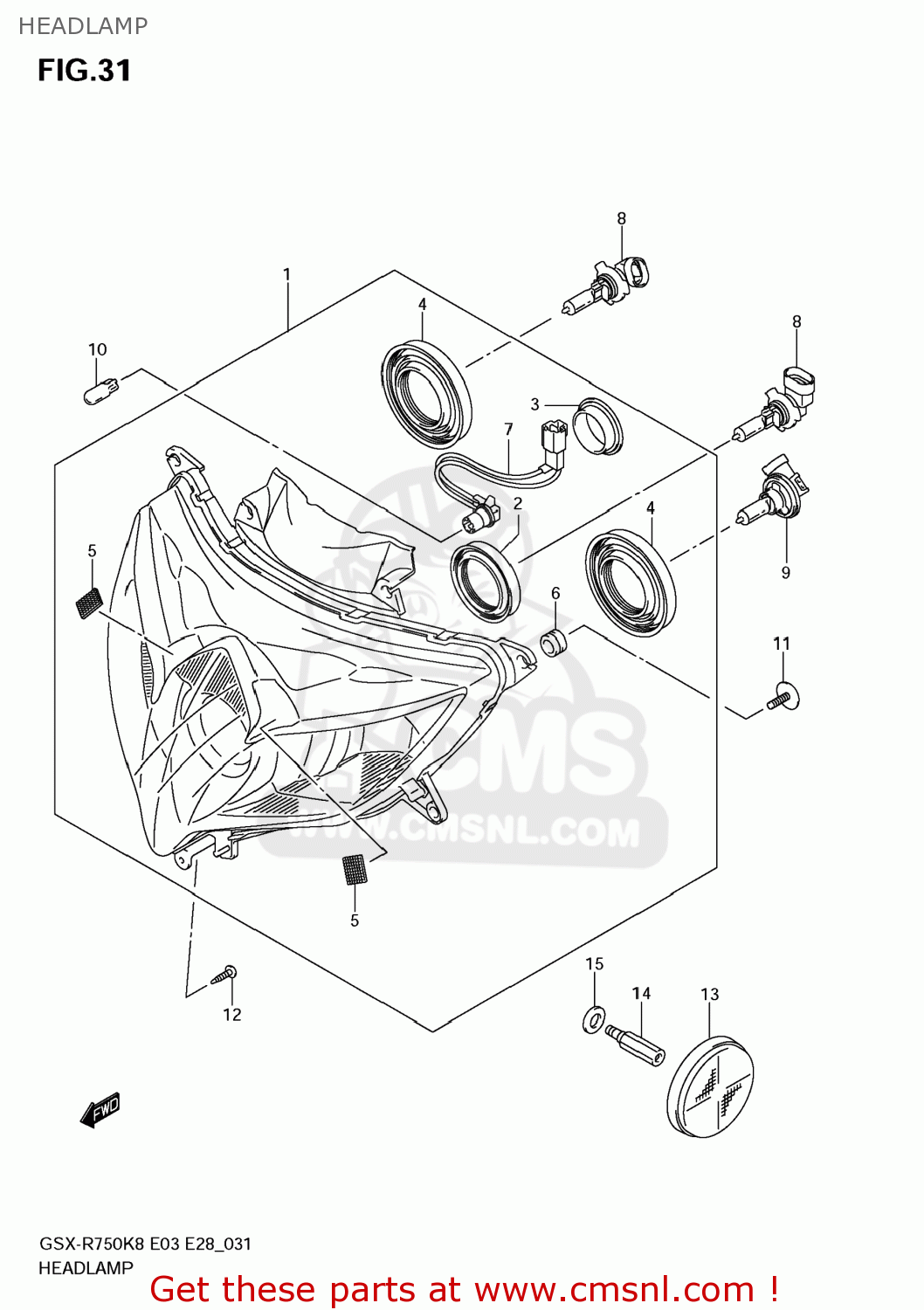

Headlamp diagram GSXR750 2008 (K8) USA (E03)

HEADLAMP GSXR750 2008 (K8) USA (E03)

HEADLAMP GSXR750 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510037H30999
ref: 1
35100-37H31-999

HEADLAMP ASSY

€ 591.50

2

3517901H00
ref: 2

COVER,SOCKET

€ 16.00

3

3517937H00
ref: 3

COVER,BACK

€ 22.00

4

3517976F10
ref: 4

COVER,SOCKET

€ 6.00

5

4457237H00
ref: 5

FASTENER,COWLING

€ 5.50

6

0932009039
ref: 6

CUSHION

€ 6.00

7

3611837H00
ref: 7

SOCKET & LEAD

€ 20.00

8

0947112151
ref: 8

BULB(12V60W,HB3,#9005)

€ 56.50

9

0947112210
ref: 9

BULB(12V55W,H11)

€ 48.50

10

0947112216
ref: 10

BULB(12V5W)

€ 5.00

11

0913605062
ref: 11

SCREW(5X15)

€ 2.50

12

035410516B
ref: 12

SCREW

€ 2.00

13

3595014A10
ref: 13
35950-14A11

REFLECTOR,REFLEX

€ 11.00

14

0911906109
ref: 14

BOLT

€ 8.00

15

0916008090
ref: 15

WASHER(8.5X14X1.6)

€ 2.50
