THROTTLE BODY HOSE/JOINT
GSXR750 2008 (K8) USA (E03)

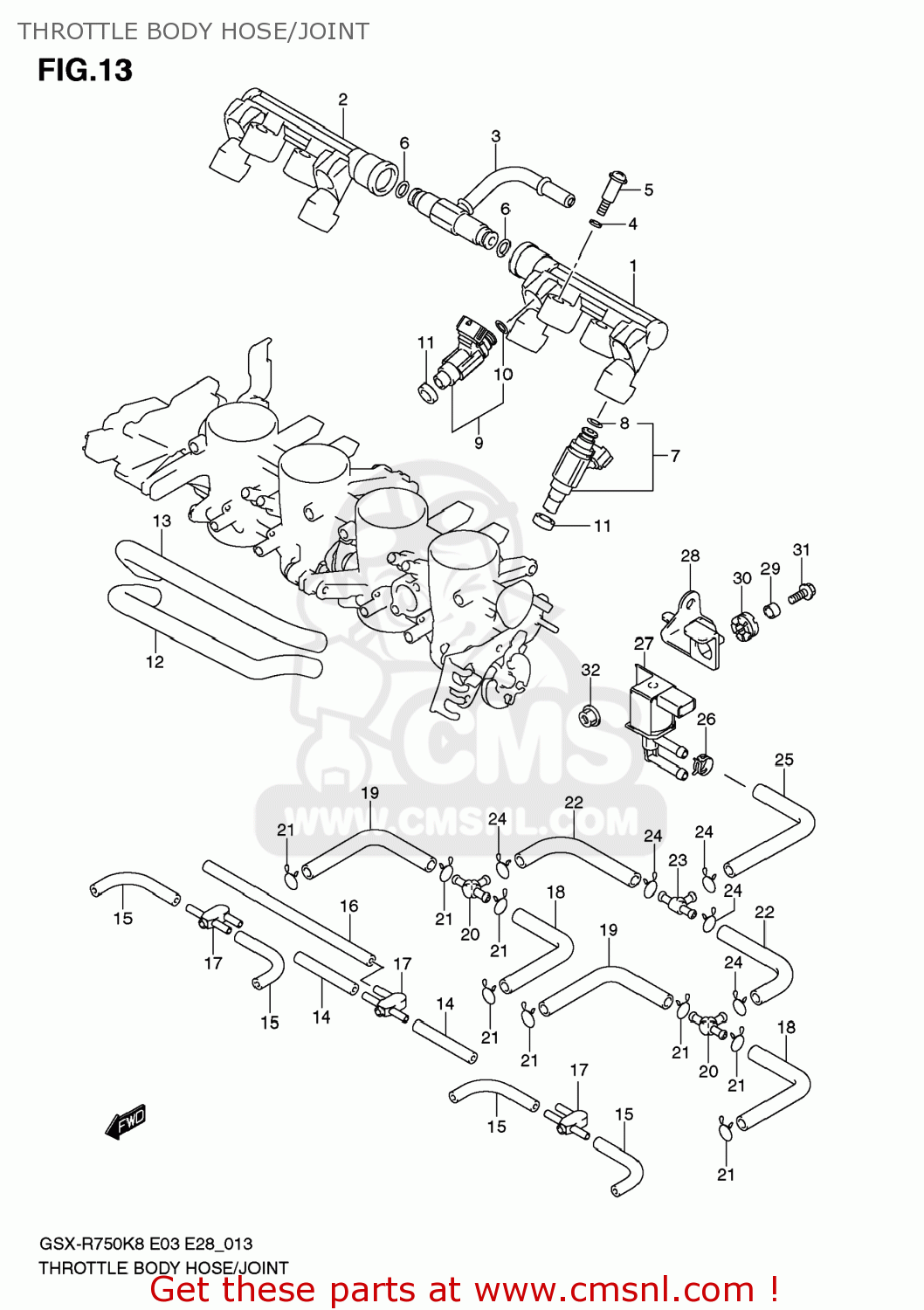

Throttle body hose/joint diagram GSXR750 2008 (K8) USA (E03)
THROTTLE BODY HOSE/JOINT GSXR750 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1347337H00
ref: 1
DELIVERY PIPE ASSY
€ 67.50
2
1347337H10
ref: 2
DELIVERY PIPE ASSY
€ 81.50
3
1347329G00
ref: 3
NIPPLE ASSY
€ 56.50
4
1360229G00
ref: 4
PACKING (NAS)
€ 2.00
5
1360129G00
ref: 5
SCREW
€ 2.50
6
1572129G00
ref: 6
O RING
€ 6.00
7
1571037H00
ref: 7
INJECTOR ASSY
€ 311.00
8
1571716G00
ref: 8
O RING
€ 9.50
9
1571037H10
ref: 9
INJECTOR ASSY
€ 311.00
10
1571716G00
ref: 10
O RING
€ 9.50
11
1572229G00
ref: 11
SEAL
€ 9.50
12
1369837H00
ref: 12
HOSE
€ 31.50
13
1369837H10
ref: 13
HOSE
€ 31.50
14
1368337H00
ref: 14
HOSE
€ 8.50
15
1368337H10
ref: 15
HOSE
€ 5.00
16
1368304F50
ref: 16
HOSE (3.2X7.4X200)
€ 11.00
17
1347118H00
ref: 17
JOINT
€ 6.50
18
1368337H20
ref: 18
HOSE
€ 24.00
19
1368337H30
ref: 19
HOSE
€ 24.00
20
1368529G00
ref: 20
NIPPLE
€ 10.50
21
1367129G00
ref: 21
CLIP
€ 3.00
22
1368037H00
ref: 22
HOSE
€ 26.00
23
1368548B00
ref: 23
NIPPLE
€ 9.00
24
1367106A10
ref: 24
CLIP
€ 3.00
25
1368037H10
ref: 25
HOSE
€ 27.00
26
0940110411
ref: 26
CLIP
€ 1.50
27
1811782K00
ref: 27
VALVE,CANISTER PURGE
€ 74.50
28
1316537H00
ref: 28
BRACKET,SOLENOID VALVE
€ 9.00
29
0918006310
ref: 29
SPACER(6.5X10X10)
€ 2.00
30
0932010055
ref: 30
CUSHION
€ 3.50
31
0911606212
ref: 31
BOLT(6X20)
€ 2.00
32
083161006A
ref: 32
NUT
€ 2.50
