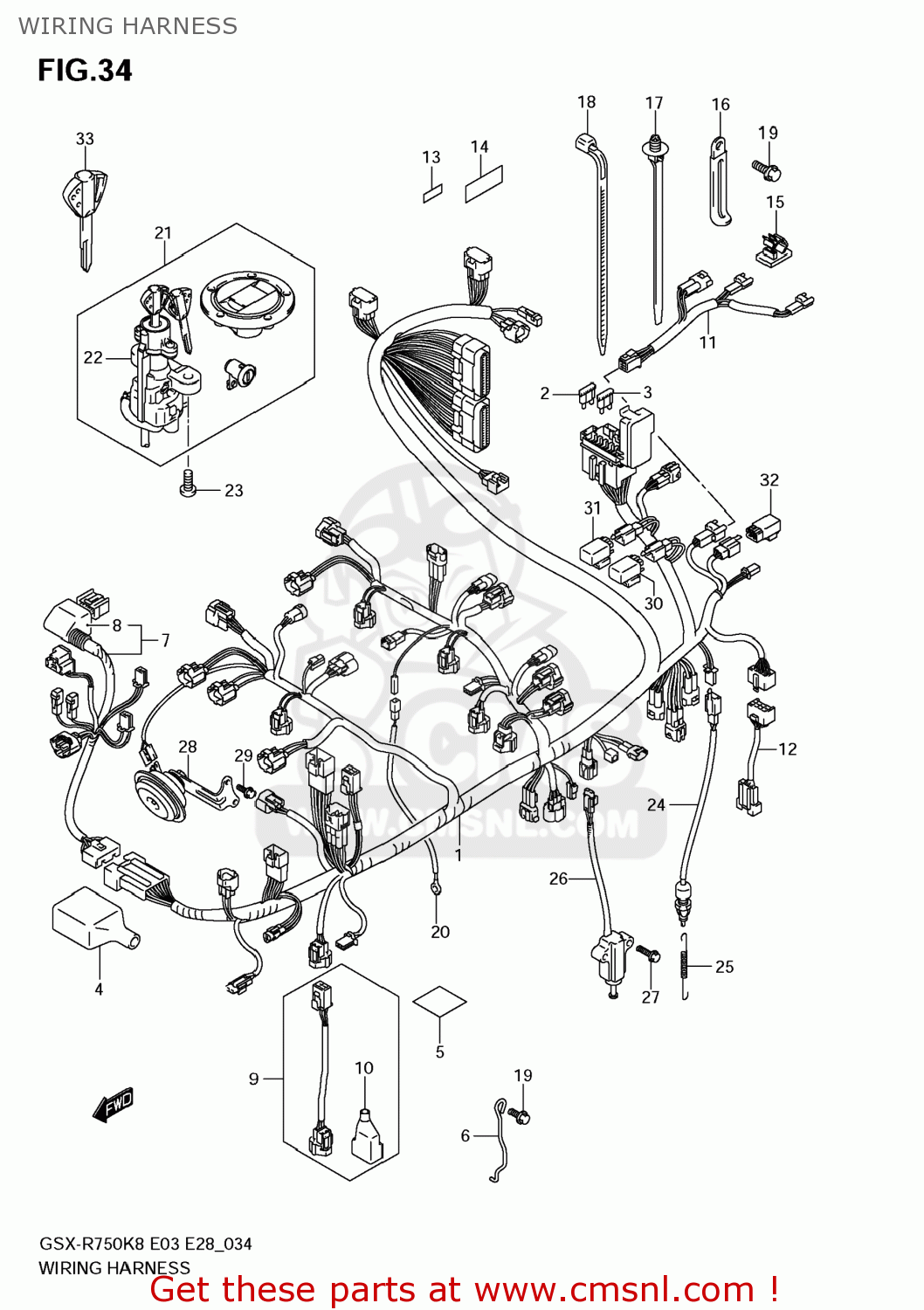

WIRING HARNESS

ref

part #

description

quantity

1

3661037H30
ref: 1

HARNESS,WIRING NO.1

€ 615.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661818G00
ref: 4

COVER

€ 8.50

5

3365229F00
ref: 5

PROTECTOR(30X80X1)

€ 3.00

5

3365229F00
ref: 5

PROTECTOR(30X80X1)

€ 3.00

6

3661937H00
ref: 6

GUIDE,WIRING HARNESS

€ 7.50

7

3662037H00
ref: 7

HARNESS,WIRING NO.2

€ 223.00

8

3661841G00
ref: 8

COVER,CONNECTOR

€ 6.50

9

3685437H00
ref: 9

WIRE,ACTUATOR LEAD

€ 45.50

10

1331101H10
ref: 10

COVER,SUB THROTTLE ACTUATOR

€ 9.50

11

3685537H00
ref: 11

WIRE,RR COMB

€ 57.00

12

3685737H00
ref: 12

WIRE,RELAY LEAD

€ 68.00

13

3692037H00
ref: 13

PROTECTOR,WIRING HARNESS

€ 2.50

14

3692045G00
ref: 14

PROTECTOR,WIRING HARNESS

€ 2.50

15

0940306310
ref: 15

CLAMP

€ 3.00

16

0940406429
ref: 16

CLAMP(L:45)

€ 2.50

17

0940717403
ref: 17

CLAMP(L:154)

€ 5.50

18

0940714403
ref: 18

CLAMP(L:125)

€ 2.50

19

015500612A
ref: 19

BOLT

€ 2.50

20

3685101H00
ref: 20

WIRE,OIL PRESSURE SWITCH LEAD

€ 14.00

21-1

3710140820
ref: 21-1
37101-40821

LOCK SET

€ 370.50

21-2

3710140840
ref: 21-2
37101-40841

LOCK SET

€ 346.50

22

3710041G10
ref: 22
37100-41G11

LOCK ASSY,STEE

€ 120.00

23

0913908016
ref: 23

BOLT(8X20)

€ 3.50

24

3774045D00
ref: 24
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

25

0944306087
ref: 25

SPRING

€ 3.00

26

3784035F10
ref: 26

SWITCH ASSY,SIDE STAND

€ 94.50

27

015500616A
ref: 27

BOLT

€ 2.50

28

3850037H00
ref: 28

HORN ASSY

€ 83.00

29

015500616A
ref: 29

BOLT

€ 2.50

30

3874024X50
ref: 30

RELAY ASSY

€ 37.50

31

3874024X50
ref: 31

RELAY ASSY

€ 37.50

32

3874039G00
ref: 32

RELAY ASSY,HEADLAMP

€ 34.00

33

3714641G00
ref: 33

KEY,BLANK(IMMOBII)

€ 49.50
