THROTTLE BODY

GSXR750 2008 (K8) USA (E03)

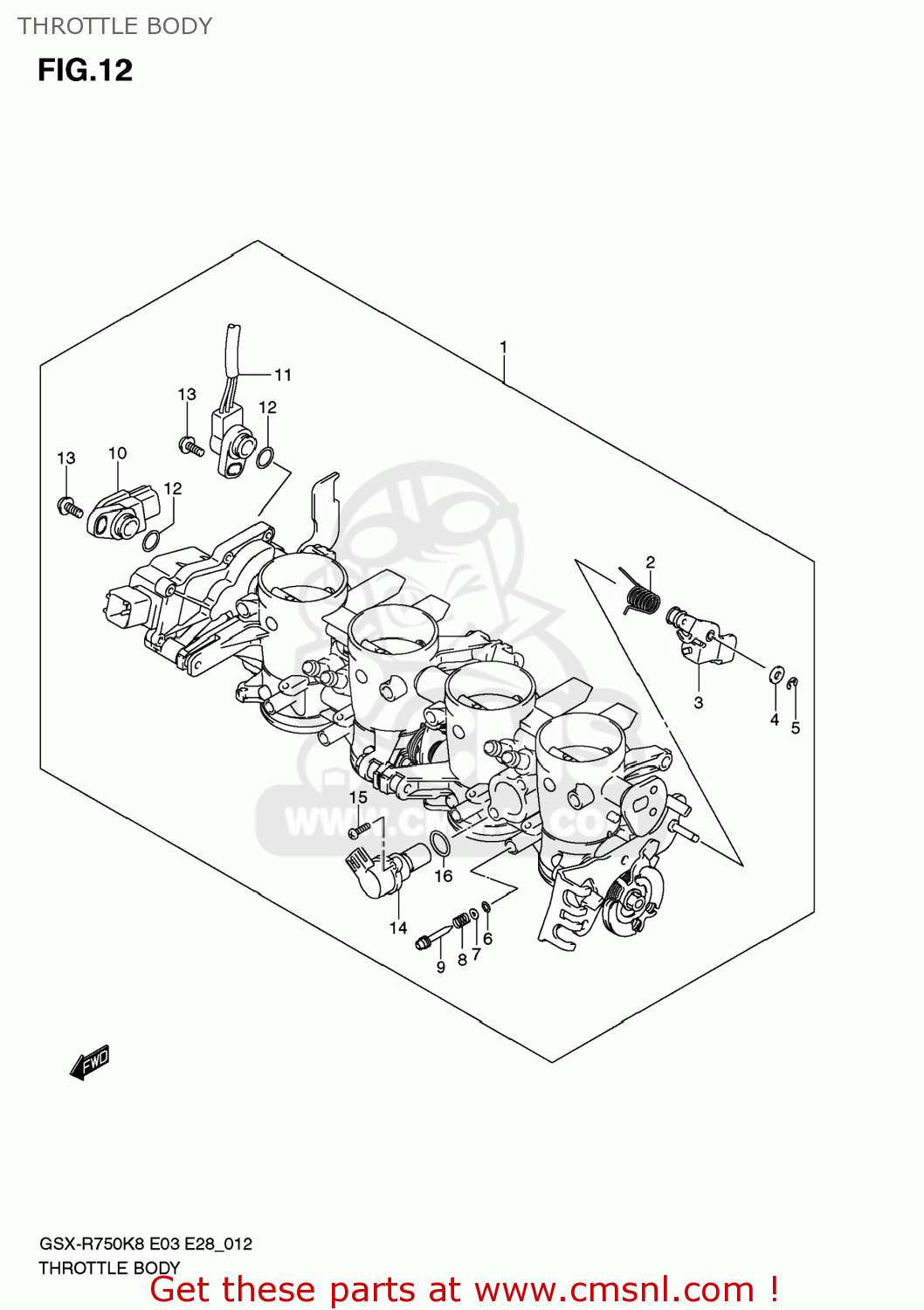

Throttle body diagram GSXR750 2008 (K8) USA (E03)

THROTTLE BODY GSXR750 2008 (K8) USA (E03)

THROTTLE BODY GSXR750 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1340638H00
ref: 1-1

BODY ASSY,THROTTLE

€ 1,205.00

1-2

1340638H10
ref: 1-2

BODY ASSY,THROTTLE

€ 1,330.50

2

1342629G00
ref: 2

SPRING,TORSION

€ 3.50

3

1342037H00
ref: 3

LEVER ASSY,LINK

€ 43.50

4

1342729G00
ref: 4

PACKING (NAS)

€ 2.50

5

1342429G00
ref: 5

E RING

€ 2.50

6

1329529900
ref: 6

O RING,PILOT AIR SCREW

€ 4.00

7

1360647A00
ref: 7

WASHER

€ 2.00

8

1326848700
ref: 8

SPRING,THROTTLE SCREW

€ 3.50

9

1326933E00
ref: 9

SCREW

€ 8.50

10

1358029G00
ref: 10

SENSOR ASSY

€ 101.50

11

1358040F30
ref: 11

SENSOR ASSY,TH

€ 188.00

12

1357529G00
ref: 12

O RING

€ 3.00

13

1360502F00
ref: 13

SCREW

€ 3.00

14

1811737H00
ref: 14
18117-37H01

VALVE,ISC

€ 440.50

15

1360537H00
ref: 15

SCREW

€ 2.50

16

1367937H00
ref: 16

O RING

€ 4.50
