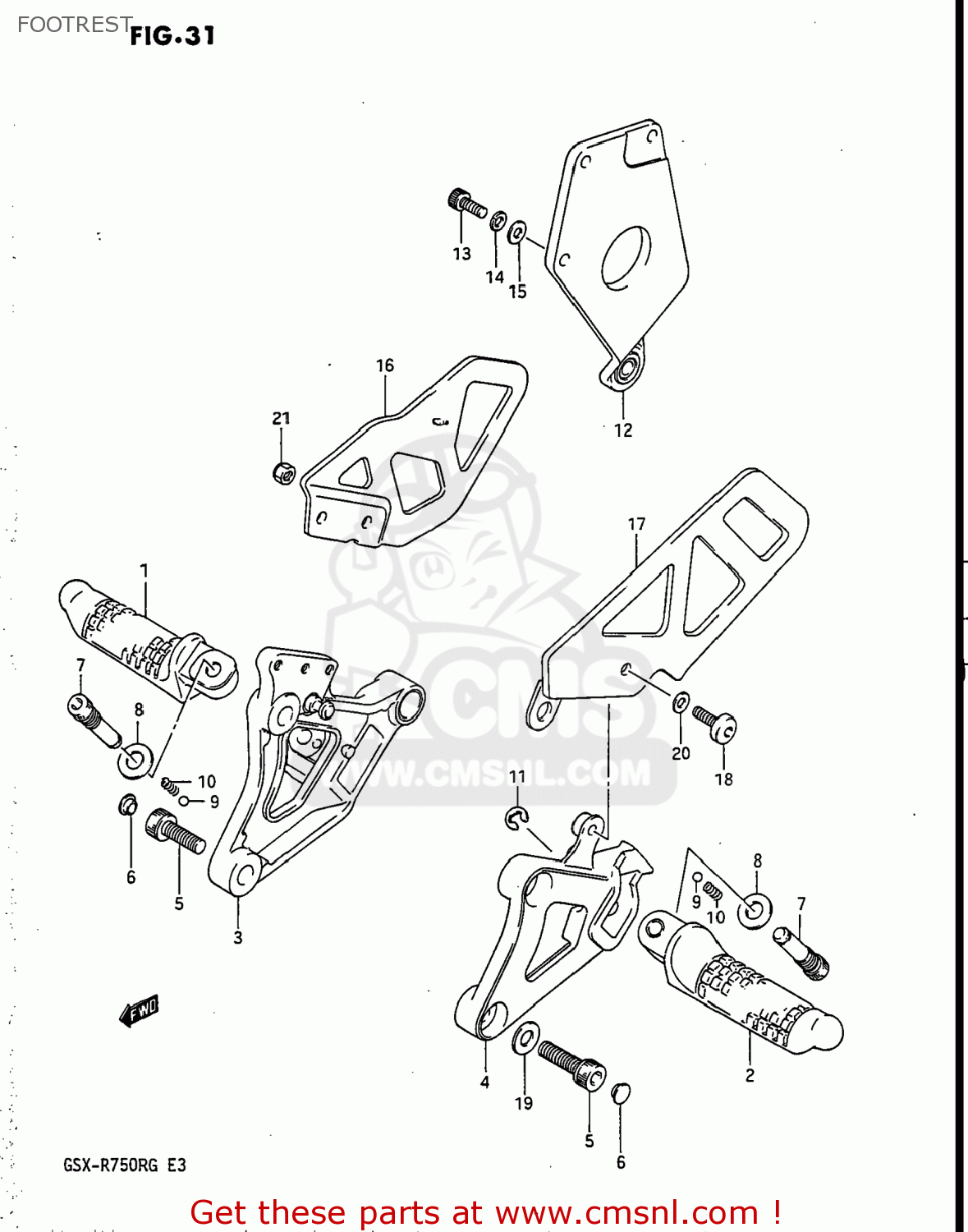

FOOTREST

ref

part #

description

quantity

1

4350127A01
ref: 1
43501-27A02

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 122.50

2

4350227A01
ref: 2
43502-27A02

FOOTREST ASSEMBLY,FRONT,LEFT

€ 65.00

3

4351027A00
ref: 3

BRACKET,FOOTREST,R

€ 115.50

4

4352227A00
ref: 4

BRACKET,FOOTREST,L

€ 85.00

5

0711010258
ref: 5
07130-10257

BOLT

€ 3.00

6

4357534500
ref: 6

CAP

€ 1.50

7

4352927A00
ref: 7

BOLT,FR FOOTREST

€ 6.50

8

4359627A00
ref: 8
09160-10126

PLATE,SPRING STOP

€ 2.50

9

0611207004
ref: 9
06111-07004

BALL

€ 1.50

10

0944005003
ref: 10

SPRING

€ 1.50

11

0833211068
ref: 11
08332-1106A

E RING 6MM

€ 2.00

12

4381027A30
ref: 12

BRACKET COMP,MUFFLER

€ 0.00

13

0110706257
ref: 13
01500-06257

BOLT

€ 2.00

14

0832121067
ref: 14
08321-01067

WASHER,LOCK

€ 2.50

15

0832211068
ref: 15
08322-0106B

WASHER 6MM

€ 2.00

16

4359527A30
ref: 16

GUARD,FRONT FOOTREST,RIGHT

€ 92.00

17

4357027A30
ref: 17

GUARD COMP,FRONT FOOTREST

€ 109.50

18

0910606057
ref: 18

BOLT(6X18)

€ 4.50

19

0916010005
ref: 19

WASHER(10.5X20X3.2)

€ 2.00

20

0832221067
ref: 20
08322-01067

WASHER

€ 2.00

21

0831921068
ref: 21
08319-2106A

NUT 6MM

€ 2.00
