WIRING HARNESS
GSXR750R 1986 (G) USA (E03)

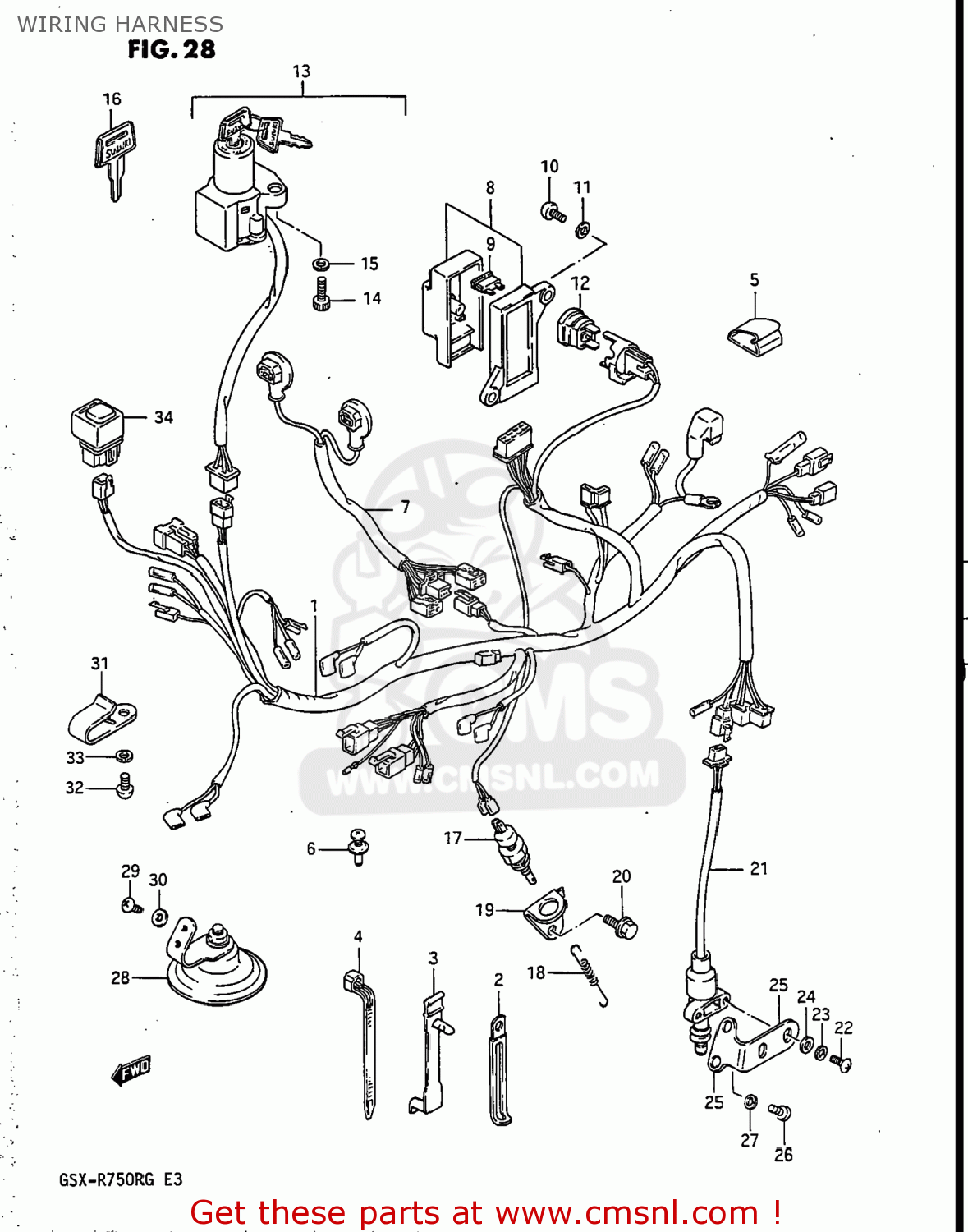

Wiring harness diagram GSXR750R 1986 (G) USA (E03)
WIRING HARNESS GSXR750R 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661027A50
ref: 1
36610-27A82
HARNESS,WIRING
€ 342.00
2
0940406415
ref: 2
09404-06433
CLAMP
€ 3.00
3
0940707401
ref: 3
09407-05403
CLAMP(L:55)
€ 1.50
4-1
0940711401
ref: 4-1
CLAMP(L:95)
€ 2.50
4-2
0940714403
ref: 4-2
CLAMP(L:125)
€ 2.50
4-3
0940718402
ref: 4-3
CLAMP(L:165)
€ 2.50
4-4
0940725403
ref: 4-4
09407-25401
CLAMP
€ 4.00
5
0940800052
ref: 5
CLIP
€ 0.00
6
0940907305
ref: 6
09409-07305-5PK
CLIP
€ 1.50
7
3685606B10
ref: 7
36856-06B02
WIRE
€ 72.50
8
3674005A01
ref: 8
36740-27A00
BOX ASSEMBLY,FUSE
€ 77.50
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11
0832221067
ref: 11
08322-01067
WASHER
€ 2.00
12
3675005A00
ref: 12
BREAKER ASSY,CIRCUT
€ 36.50
13
3711006B00
ref: 13
SWITCH ASSY,IGNITION
€ 148.00
14
3715247011
ref: 14
07130-0616B
BOLT
€ 3.00
15
0832121067
ref: 15
08321-01067
WASHER,LOCK
€ 2.50
16
3714516700
ref: 16
KEY,BLANK
€ 11.00
17
3774024A00
ref: 17
SWITCH ASSY,STOP LAMP
€ 20.50
18
0944306056
ref: 18
09443-06056-XC0
SPRING
€ 3.50
19
4325127A00
ref: 19
BRACKET,STOP LAMP SWITCH
€ 3.50
20
0154706208
ref: 20
01547-06207
BOLT (6X20)
€ 2.50
21
3784014A01
ref: 21
SWITCH ASSY,SIDE STAND WARN
€ 75.00
22
0211205205
ref: 22
02112-0520B
SCREW 5X20
€ 2.50
23
0832121055
ref: 23
08321-0105A
WASHER,LOCK
€ 3.00
24
0832221055
ref: 24
08322-0105A
WASHER,5MM
€ 2.50
25
4236127A00
ref: 25
BRACKET,PROP STAND WARNING
€ 3.50
26
0211206128
ref: 26
02112-06127
SCREW 6X12
€ 2.00
27
0832121067
ref: 27
08321-01067
WASHER,LOCK
€ 2.50
28
3850028A00
ref: 28
HORN ASSEMBLY
€ 0.00
29
0211205105
ref: 29
02112-0510A
SCREW
€ 2.00
30
0832221055
ref: 30
08322-0105A
WASHER,5MM
€ 2.50
31
3661906B00
ref: 31
CLAMP,HANDLE SWITCH LEVER
€ 4.00
32
0211206125
ref: 32
02112-0612A
SCREW
€ 1.50
33
0832121064
ref: 33
08321-0106A
WASHER,LOCK
€ 2.00
34
3864006B00
ref: 34
38740-24X50
RELAY, ANTINOSE DIVE FORK
€ 37.50
