STARTER CLUTCH

GSXR750R 1986 (G) USA (E03)

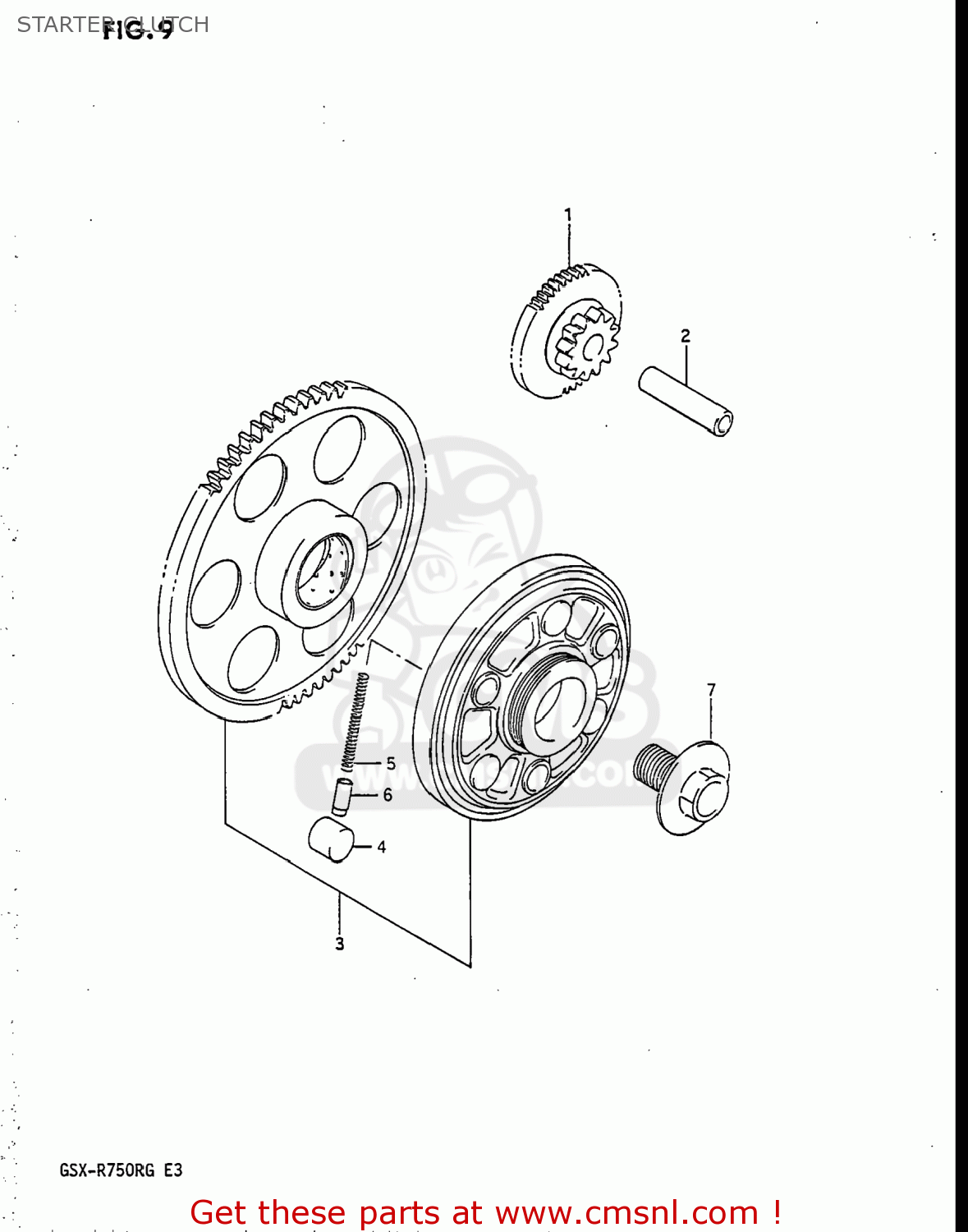

Starter clutch diagram GSXR750R 1986 (G) USA (E03)

STARTER CLUTCH GSXR750R 1986 (G) USA (E03)

STARTER CLUTCH GSXR750R 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260027821
ref: 3
12600-27825

CLUTCH SET,STARTER

€ 205.00

4

0926114001
ref: 4

PIN(14X13)

€ 5.00

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910314005
ref: 7

BOLT(14X21)

€ 17.00
