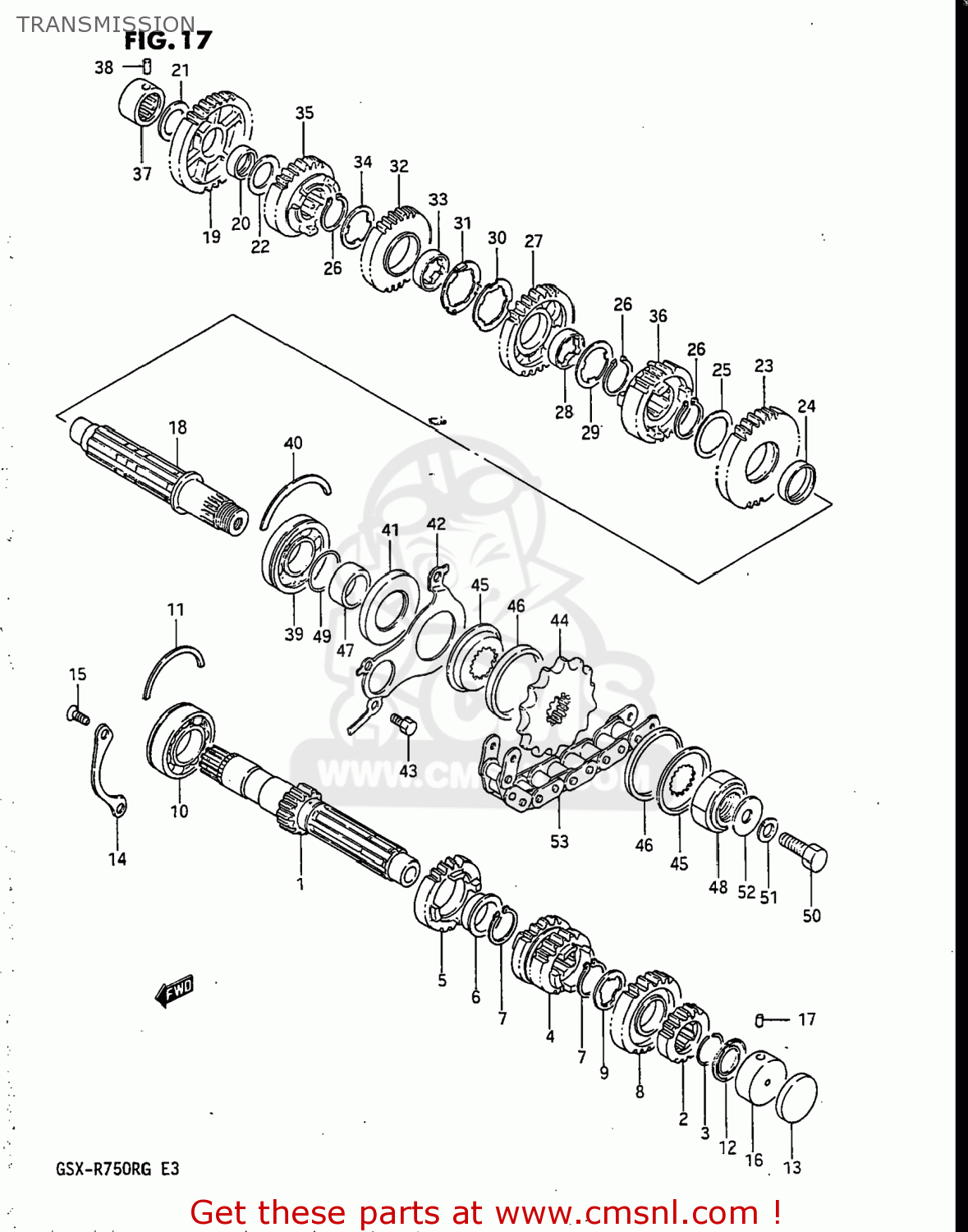

TRANSMISSION

ref

part #

description

quantity

1

2412127A30
ref: 1
24121-27A31

SHAFT,COUNTER

€ 93.00

2

2422127A01
ref: 2

GEAR,2ND DRIVE(NT:16)

€ 93.00

3

0938025006
ref: 3

RING,SNAP

€ 2.00

4

2423127A00
ref: 4

GEAR,3RD & 4TH DRIVE(NT:17/20)

€ 162.00

5

2425127A01
ref: 5

GEAR,5TH DRIVE(NT:22)

€ 91.00

6

0930125001
ref: 6
24322-19F00

BUSHING

€ 12.50

7

0938025003
ref: 7

RING,SNAP

€ 3.00

8

2426127A00
ref: 8
24261-17C02

GEAR,SIXTH DRIVE

€ 119.50

9

0916725012
ref: 9

WASHER,LOCK

€ 3.50

10

0926225051
ref: 10
09262-25105

BEARING(25X62X17)

€ 59.50

11

0939062006
ref: 11
09390-62012

C-RING

€ 5.00

12

0928520006
ref: 12

SEAL,OIL(20X31.2X2.7)

€ 7.00

13

2311627A30
ref: 13

CAP,COUNTER SHAFT,L

€ 10.00

14

2474127A00
ref: 14

RETAINER,CNTR SHAFT BEARING

€ 7.00

15

0212206167
ref: 15

SCREW

€ 2.00

16

0926320049
ref: 16

BEARING(20X34X17.5)

€ 58.00

17

0422107129
ref: 17

PIN

€ 1.50

18

2413127A02
ref: 18

SHAFT,DRIVE

€ 188.50

19

2431127A01
ref: 19

GEAR,1ST DRIVEN(NT:36)

€ 145.00

20

0930022008
ref: 20

BUSH(22X26X9)

€ 10.50

21

0821120341
ref: 21

WASHER

€ 2.00

22

0821122341
ref: 22

WASHER

€ 3.00

23

2432127A01
ref: 23
24321-27A02

GEAR,SECOND DRIVEN

€ 143.50

24

0930028001
ref: 24

BUSH(28X32X8)

€ 11.50

25

0821128381
ref: 25
09181-28195

WASHER, THRUST

€ 3.50

26

0833111289
ref: 26
08331-3128A

CIRCLIP

€ 2.50

27

2433127A00
ref: 27

GEAR,3RD DRIVEN(NT:28)

€ 129.00

28

2433227A00
ref: 28

BUSH

€ 13.50

29

0916728001
ref: 29

WASHER,LOCK

€ 3.00

30

0916728002
ref: 30

WASHER,LOCK

€ 3.00

31

0916928001
ref: 31

WASHER

€ 3.00

32

2434127A00
ref: 32
24341-27A01

GEAR,FOURTH DRIVEN

€ 80.00

33

2433227A00
ref: 33

BUSH

€ 13.50

34

0916728001
ref: 34

WASHER,LOCK

€ 3.00

35

2435127A00
ref: 35

GEAR,5TH DRIVEN(NT:27)

€ 117.00

36

2436127A00
ref: 36
24361-27A02

GEAR,SIXTH DRIVEN

€ 114.00

37

0926320040
ref: 37

BEARING(20X34X20)

€ 42.50

38

0422107209
ref: 38

PIN

€ 1.50

39

0926225065
ref: 39
09262-25105

BALL BEARING 25X62X17

€ 59.50

40

0939062006
ref: 40
09390-62012

C-RING

€ 5.00

41

0928334005
ref: 41

SEAL,OIL(34X62X6)

€ 14.50

42

2475127A00
ref: 42
24751-27A01

RETAINER,DRIVESHAFT O

€ 8.00

43

0110706108
ref: 43
01500-06107

BOLT

€ 2.00

44

2751127A11
ref: 44
27510-21E00

SPROCKET,ENGINE

€ 45.00

45

2751631301
ref: 45
27516-19C00

HOLDER,SPROCKET DAMPER

€ 3.50

46

2751731300
ref: 46

DAMPER,SPROCKET

€ 14.00

47

0918025080
ref: 47

SPACER (25X34X16.1)

€ 13.00

48

0915920004
ref: 48

NUT

€ 12.00

49

0928025001
ref: 49

O RING(D:1,ID:24.5)

€ 2.50

50

0110706166
ref: 50
01500-0616A

BOLT

€ 2.00

51

0832131067
ref: 51
08321-01067

WASHER,LOCK

€ 2.50

52

0821206222
ref: 52

WASHER

€ 1.50

53

2760027A31110
ref: 53

CHAIN ASSEMBLY,DRIVE

€ 0.00
