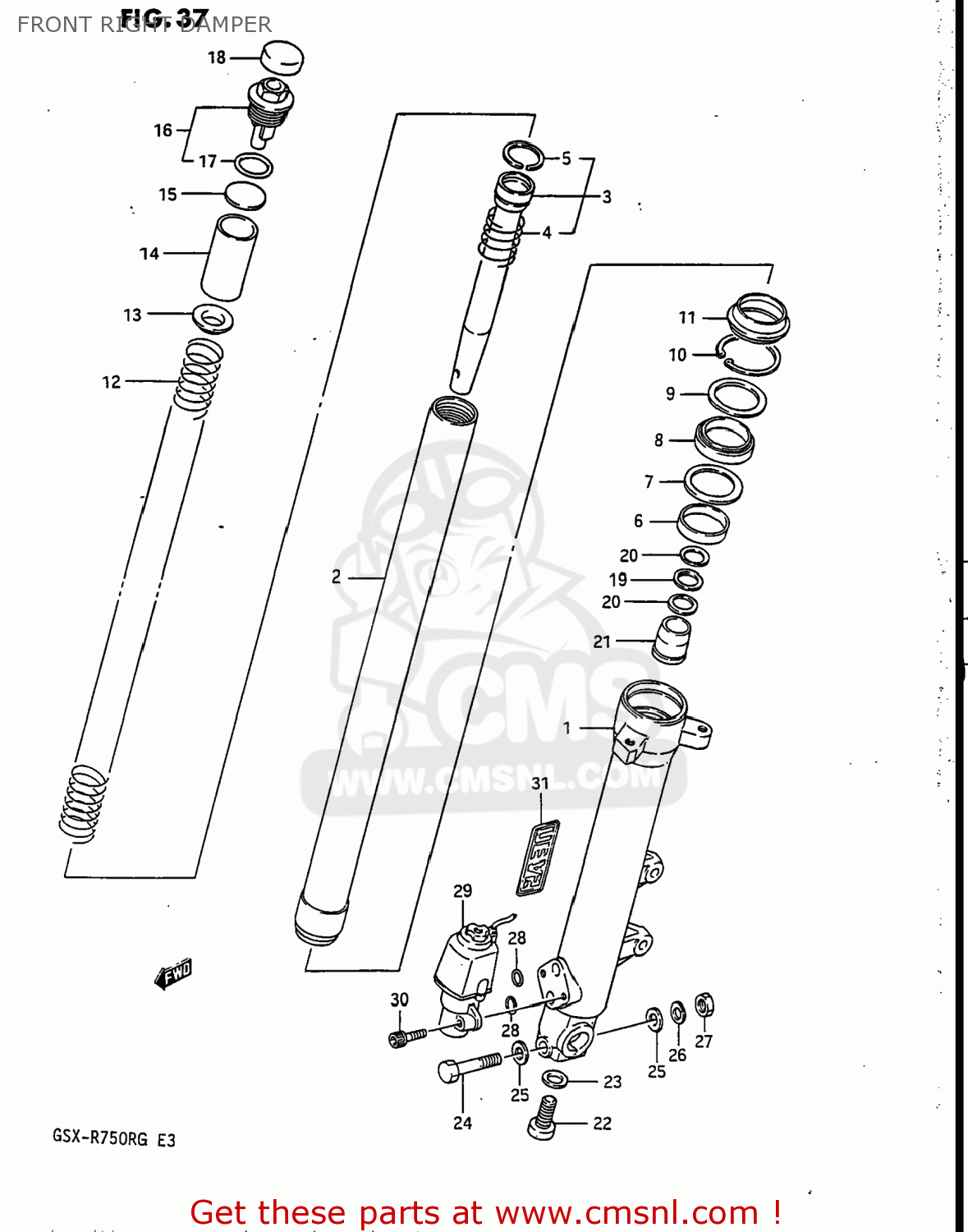

FRONT RIGHT DAMPER

ref

part #

description

quantity

5110327A60
ref:

DAMPER ASSEMBLY,RIGHT

€ 420.00

1

5113006B00
ref: 1

TUBE,OUTER,RIGHT

€ 373.50

2

5111027A40
ref: 2

TUBE,FORK INNER

€ 304.50

3

5114606B00
ref: 3

CYLINDER

€ 77.00

4

5117706B00
ref: 4

SPRING,REBOUND

€ 6.50

5

5119624A00
ref: 5

RING,FR FORK PISTON

€ 6.50

6

5116705A00
ref: 6
51167-26E10

METAL,SLIDE

€ 20.50

7

5115805A00
ref: 7

WASHER,FORK OIL SEAL

€ 5.00

8

5115305A00
ref: 8
51153-27C20

OIL SEAL,FRONT FORK

€ 22.00

9

5115827A00
ref: 9

WASHER,FORK OIL SEAL

€ 6.00

10

5115649440
ref: 10

RING,OIL SEAL STOPPER

€ 5.50

11

5117305A00
ref: 11
51173-14F00

DUST SEAL,FRONT FORK

€ 18.50

12

5117127A40
ref: 12

SPRING,FRONT FORK

€ 66.50

13

5117227A00
ref: 13

WASHER

€ 5.50

14

5117627A00
ref: 14

SPACER

€ 9.00

15

5119227A00
ref: 15

WASHER,FR FORK SPRING

€ 5.50

16

5135127A40
ref: 16

CAP,FORK INNER TUBE

€ 0.00

17

5111724A00
ref: 17

O RING

€ 6.00

18

5118927A40
ref: 18

CAP

€ 7.50

19

5112327A00
ref: 19

WASHER,OIL LOCK PIECE

€ 4.50

20

5112527A00
ref: 20

SPRING,FORK OIL LOCK PIECE

€ 4.50

21

5119527A00
ref: 21

PIECE,OIL LOCK

€ 24.50

22

5114714200
ref: 22

BOLT(14X25)

€ 5.50

23

5114814200
ref: 23

GASKET (NAS)

€ 2.00

24

0110710608
ref: 24
01500-1060A

BOLT 10X60

€ 3.50

25

0832211107
ref: 25
08322-01107

WASHER

€ 2.50

26

0832131108
ref: 26
08321-01107

LOCK WASHER

€ 2.00

27

0831012108
ref: 27
08310-00107

NUT

€ 2.50

28

5179906B00
ref: 28
09280-14011

O RING

€ 3.50

29

5177006B00
ref: 29

P.D.F. ASSEMBLY

€ 327.50

30

5179627A40
ref: 30
07130-08257

BOLT

€ 2.50

31

6868106B00
ref: 31

EMBLEM

€ 0.00

all assemblies
