FRONT FENDER

GSXR750R 1986 (G) USA (E03)

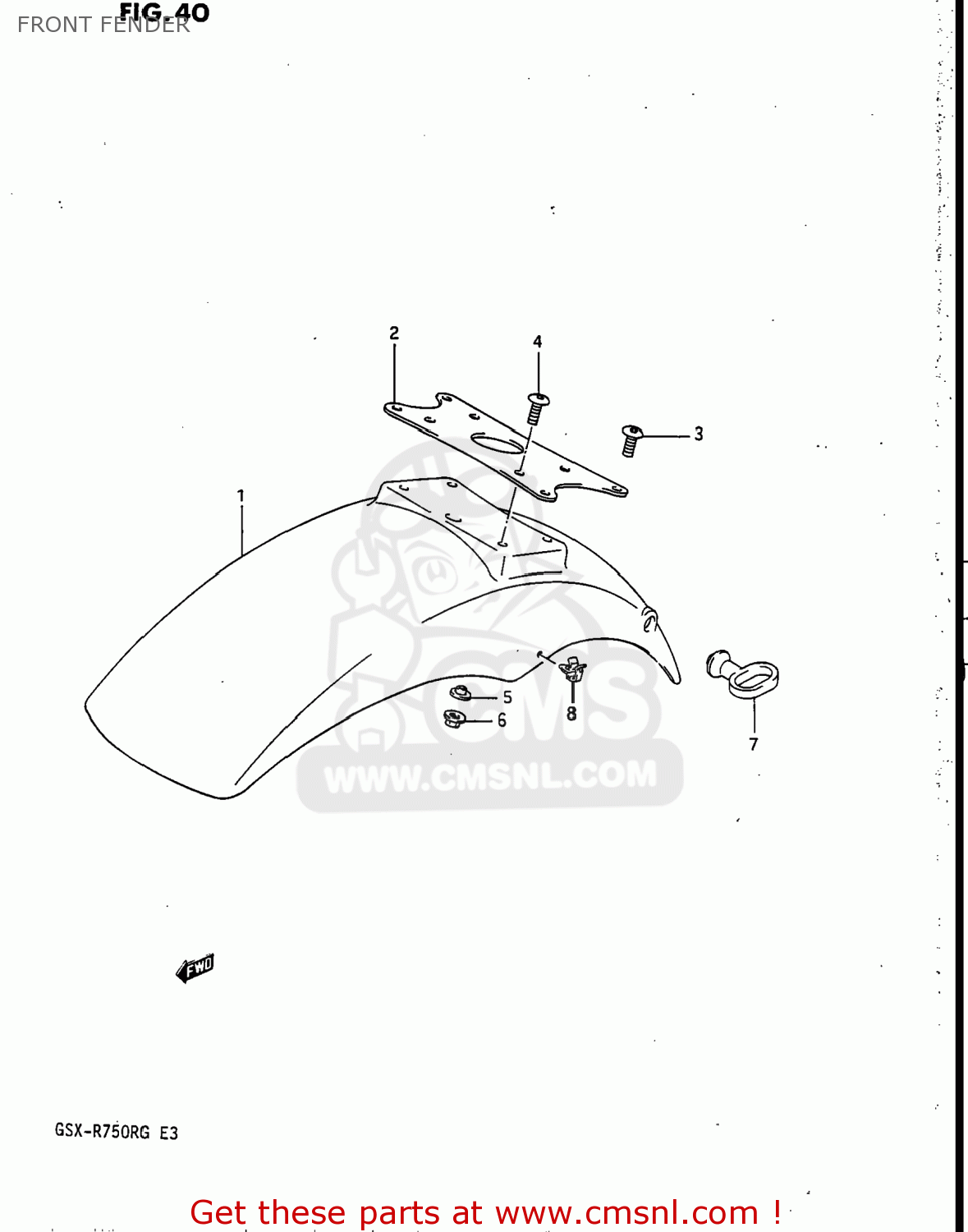

Front fender diagram GSXR750R 1986 (G) USA (E03)

FRONT FENDER GSXR750R 1986 (G) USA (E03)

FRONT FENDER GSXR750R 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5311127A3014L
ref: 1
53111-27A50-13L

FENDER,FRONT

€ 169.00

2

5311406B00
ref: 2

BRACE,FRONT FENDER

€ 20.50

3

0913908007
ref: 3

SCREW(8X16)

€ 4.50

4

0913905025
ref: 4

SCREW(5X14)

€ 2.00

5

0916905008
ref: 5

WASHER

€ 3.00

6

0831931056
ref: 6
08319-3105B

NUT

€ 3.00

7

5862121203
ref: 7
58621-21204

GUIDE,CABLE

€ 7.50

8

0940305305
ref: 8

CLIP

€ 3.00
