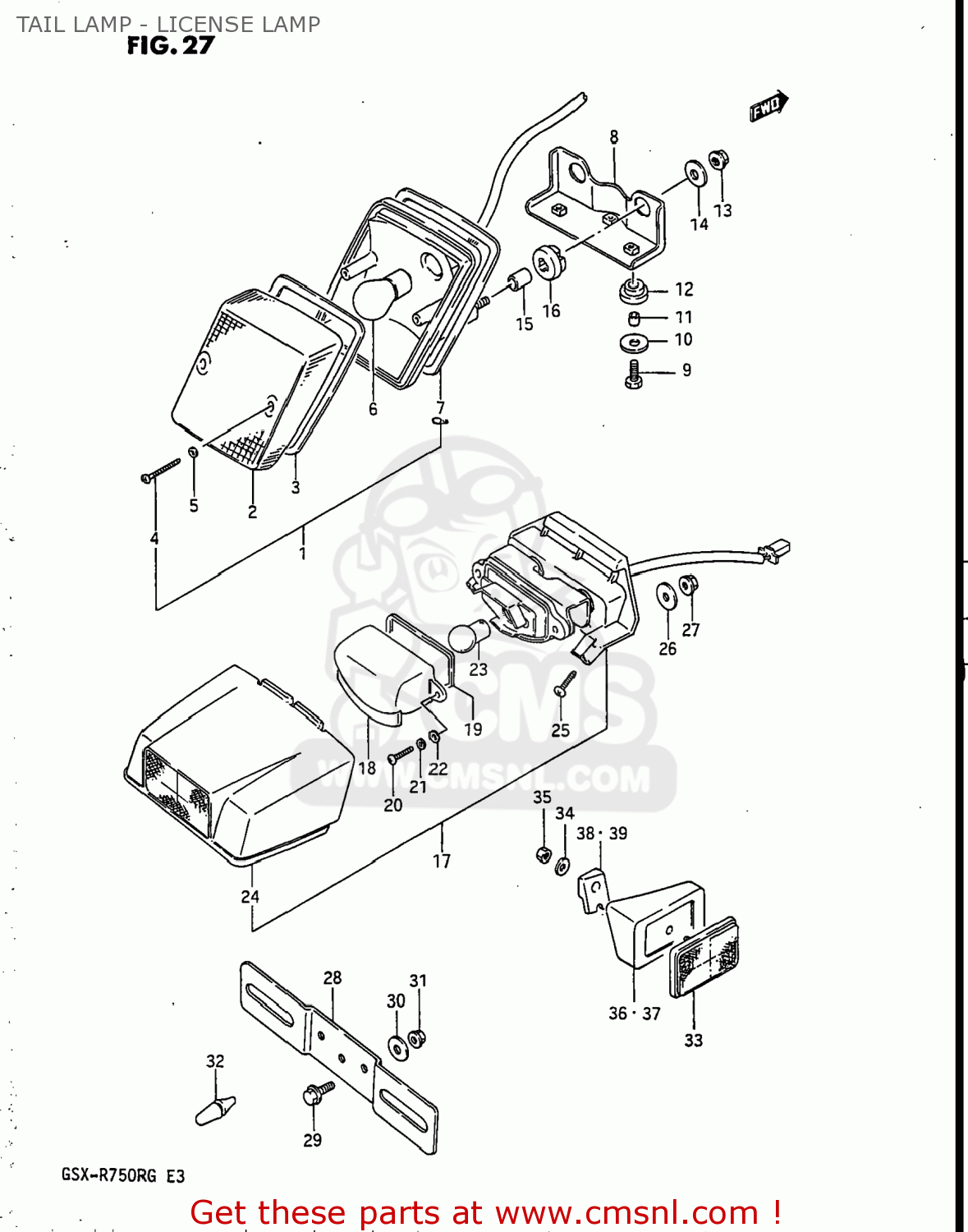

TAIL LAMP - LICENSE LAMP - GSXR750R 1986 (G) USA (E03)

ref

part #

description

quantity

1

3571028A30
ref: 1
35710-28A20-999

LAMP ASSEMBLY,REAR COMBINATION

€ 159.00

2

3571214A00
ref: 2

LENS,RR COMBI

€ 44.00

3

3571314A00
ref: 3
35713-31D00

GASKET,REAR COMBINATION LAMP

€ 9.50

4

0321104258
ref: 4
03211-0425B

SCREW TAPP.

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112084
ref: 6

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

7

3573328A00
ref: 7

GASKET

€ 0.00

8

3572628A00
ref: 8
35726-28A01

BRACKET,REAR COMBINATION LAMP

€ 7.00

9

0110706206
ref: 9
01500-0620A

BOLT,M6X1X20

€ 2.00

10

0916006020
ref: 10
09160-06066

WASHER

€ 2.00

11

0918006084
ref: 11
09180-06038

SPACER (6.1X9X7.5)

€ 2.00

12

0932009028
ref: 12

CUSHION

€ 3.00

13

0831626066
ref: 13
08316-1006B

NUT

€ 2.00

14

0916006060
ref: 14
09160-06077

WASHER

€ 2.00

15

0918006090
ref: 15
09180-06264

SPACER (6.4X9X10.5)

€ 2.00

16

0932009018
ref: 16

CUSHION

€ 2.00

17

3591028A30
ref: 17

LAMP ASSY,LICENSE

€ 139.00

18

3591200A10
ref: 18

LENS,LICENSE LAMP

€ 16.00

19

3591304A00
ref: 19

GASKET,LICESE LAMP (NAS)

€ 4.00

20

0211204167
ref: 20
02112-0416A

SCREW

€ 1.00

21

0832121047
ref: 21
08321-0104A

WASHER,LOCK 4M

€ 2.00

22

0832221047
ref: 22
08322-01047

WASHER 4MM

€ 2.00

23

0947112037
ref: 23
09471-12141

BULB

€ 7.00

24

3591706B30
ref: 24

COVER,LICENSE LAMP

€ 35.50

25

0324104165
ref: 25
03242-0416B

SCREW

€ 4.50

26

0916005011
ref: 26
09160-05501

WASHER (5.5X20X1.2)

€ 2.00

27

0831626056
ref: 27
08316-2005A

NUT

€ 2.00

28

3592727A30
ref: 28

BRACKET,LICENSE PLATE

€ 10.00

29

0151706164
ref: 29
01550-0616A

BOLT

€ 2.50

30

0916006020
ref: 30
09160-06066

WASHER

€ 2.00

31

0831626066
ref: 31
08316-1006B

NUT

€ 2.00

32

0932106023
ref: 32

CUSHION

€ 2.00

33

3597008A30
ref: 33

REFLEX REFLECTOR,REAR SI

€ 16.50

34

0916005013
ref: 34

WASHER(5.2X16X1)

€ 1.50

35

0831012055
ref: 35
08310-0005A

NUT ,5MM

€ 2.50

36

3597728A00
ref: 36

SPACER

€ 0.00

37

3597828A00
ref: 37

SPACER

€ 0.00

38

3599728A00
ref: 38

WASHER

€ 0.00

39

3599828A00
ref: 39

SPACER, INNER LH

€ 0.00
