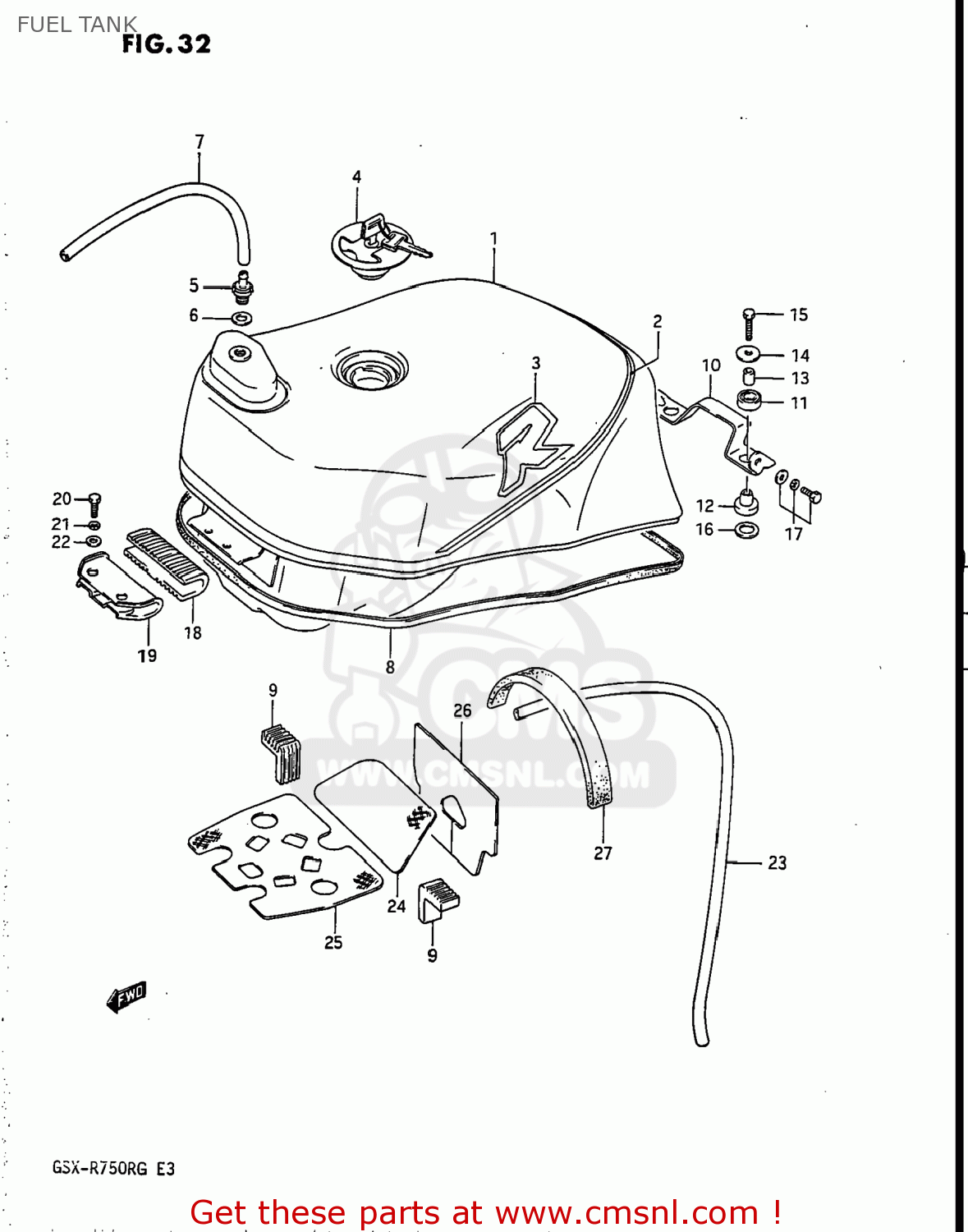

FUEL TANK

ref

part #

description

quantity

1-1

4410028A208JZ
ref: 1-1
44100-28A20-A7N

TANK ASSEMBLY,FUEL

€ 458.00

1-2

4410028A308JZ
ref: 1-2

TANK ASSEMBLY,FUEL

€ 288.50

2

6811028A1029W
ref: 2

TAPE SET,FUEL TANK

€ 0.00

3

6811127A10765
ref: 3

EMBLEM

€ 0.00

4

4420020A00KEY
ref: 4
44200-20841

CAP SET,FUEL TANK

€ 174.00

5-1

4424040A00
ref: 5-1
44240-06B10

PLUG, FUEL TANK BREATHER

€ 36.00

5-2

4424028A00
ref: 5-2
44240-28A01

(CA) VALVE,FUEL TANK BREATHER

€ 65.00

6-1

0916812012
ref: 6-1

GASKET(12.5X20X2.5) (NAS)

€ 2.00

6-2

0916827001
ref: 6-2

GASKET 27X40X2.5 (NAS)

€ 2.50

7

0934305165
ref: 7
09352-50823-00B

HOSE,FUEL

€ 13.00

8

6824127A00
ref: 8
68241-04X50-00B

MOLDING,FUEL TANK

€ 23.00

9

4454527A10
ref: 9

CUSHION,FUEL TANK SIDE

€ 4.00

10

4521127A00
ref: 10

BRACKET,SEAT SUPPORT,FRONT

€ 9.50

11

0932014017
ref: 11

CUSHION

€ 3.00

12

0932010038
ref: 12

CUSHION

€ 4.00

13

0918006072
ref: 13
09180-06271

SPACER

€ 2.00

14

0916006072
ref: 14
09160-06501

WASHER (6.5X24X1.6)

€ 2.00

15

0110706356
ref: 15
01500-0635A

BOLT ,6X35

€ 2.50

16

0916012004
ref: 16
09160-12088

WASHER (12.5X24X1.6)

€ 2.00

17

0913806038
ref: 17

SCREW(6X16)

€ 3.00

18

4451127A10
ref: 18

CUSHION,FUEL TANK FR

€ 7.00

19

4452127A00
ref: 19

BRACKET,FUEL TANK FR

€ 16.00

20

0110706205
ref: 20
01500-0620A

BOLT

€ 2.00

21

0832121064
ref: 21
08321-0106A

WASHER,LOCK

€ 2.00

22

0832221064
ref: 22
08322-0106B

WASHER

€ 2.00

23

0934305165
ref: 23
09352-50823-00B

HOSE,FUEL

€ 13.00

24

4419127A00
ref: 24
47166-03D00

SHIELD,FUEL TANK HEAT

€ 15.50

25

4419227A00
ref: 25
44192-27A01

SHIELD,FUEL TANK HEAT

€ 25.50

26

4419406B00
ref: 26

SHIELD,HEAT NO.1

€ 14.50

27

4419327A02
ref: 27

SHIELD,TANK & CLEANER

€ 12.50

all assemblies
