SEAT
GSXR750R 1986 (G) USA (E03)

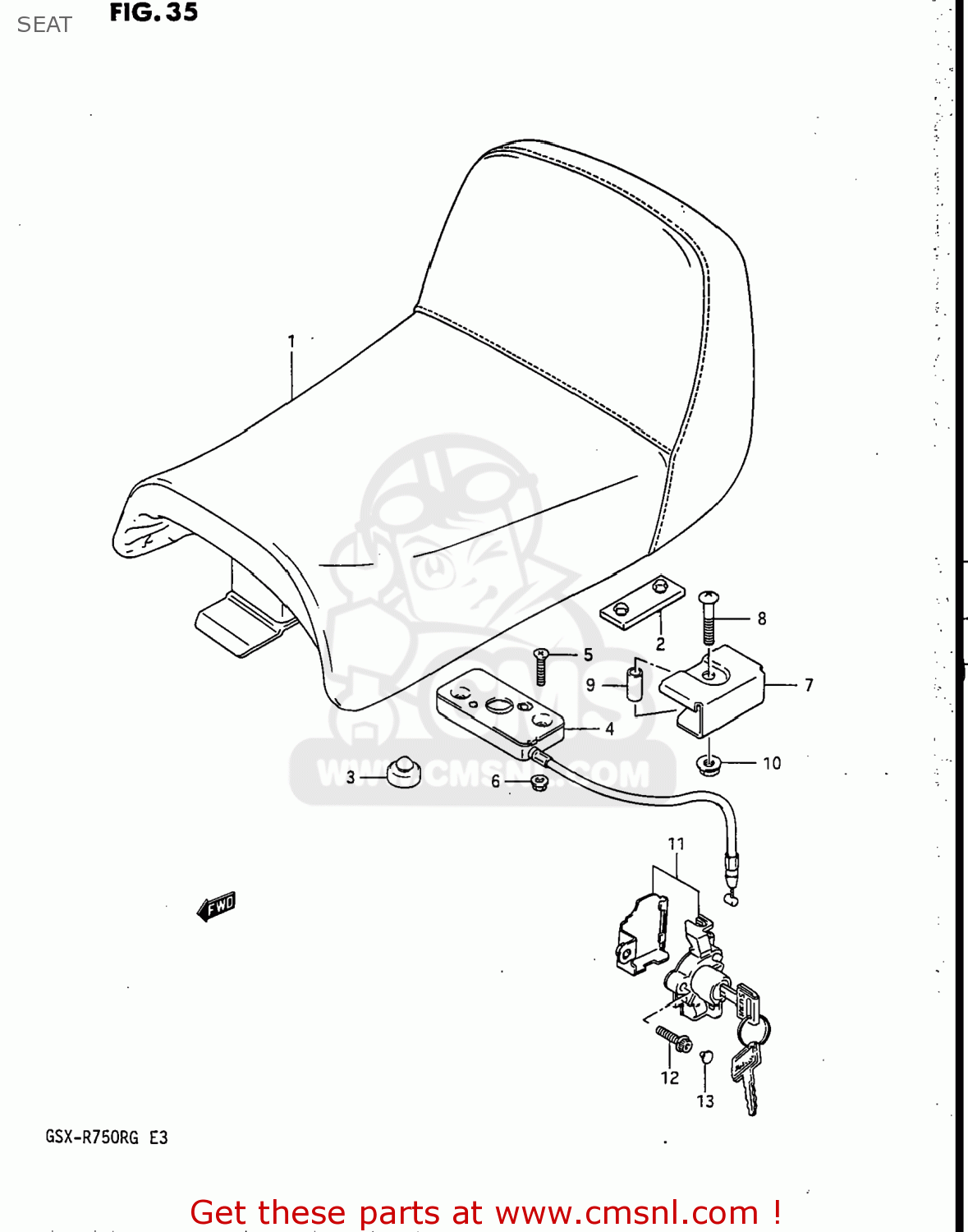

Seat diagram GSXR750R 1986 (G) USA (E03)
SEAT GSXR750R 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510027A4054G
ref: 1
45100-27A31-48H
SEAT ASSEMBLY
€ 370.00
2
0932110002
ref: 2
CUSHION(11.5X22X20)
€ 2.00
3
0932116710
ref: 3
45149-16710
CUSHION
€ 4.00
4
4522027A01
ref: 4
BRACKET,SEAT SUPPORT,R
€ 20.50
5
0212206305
ref: 5
02122-0630B
SCREW
€ 2.00
6
0831626065
ref: 6
08316-2006A
NUT
€ 2.00
7
4513827A30
ref: 7
PLATE,SEAT CUSHION
€ 0.00
8
0214206357
ref: 8
SCREW
€ 2.00
9
0918006185
ref: 9
09180-06270
SPACER (6.4X9X17.5)
€ 0.00
10
0831931067
ref: 10
NUT
€ 2.50
11
9570027A00KEY
ref: 11
95700-27820
LOCK SET
€ 65.50
12
0712006205
ref: 12
07120-0620B
PLUG ,6X20
€ 3.50
13
0925005009
ref: 13
CAP(OD:10)
€ 2.50
