CLUTCH
GSXR750W 1995 (S) USA (E03)

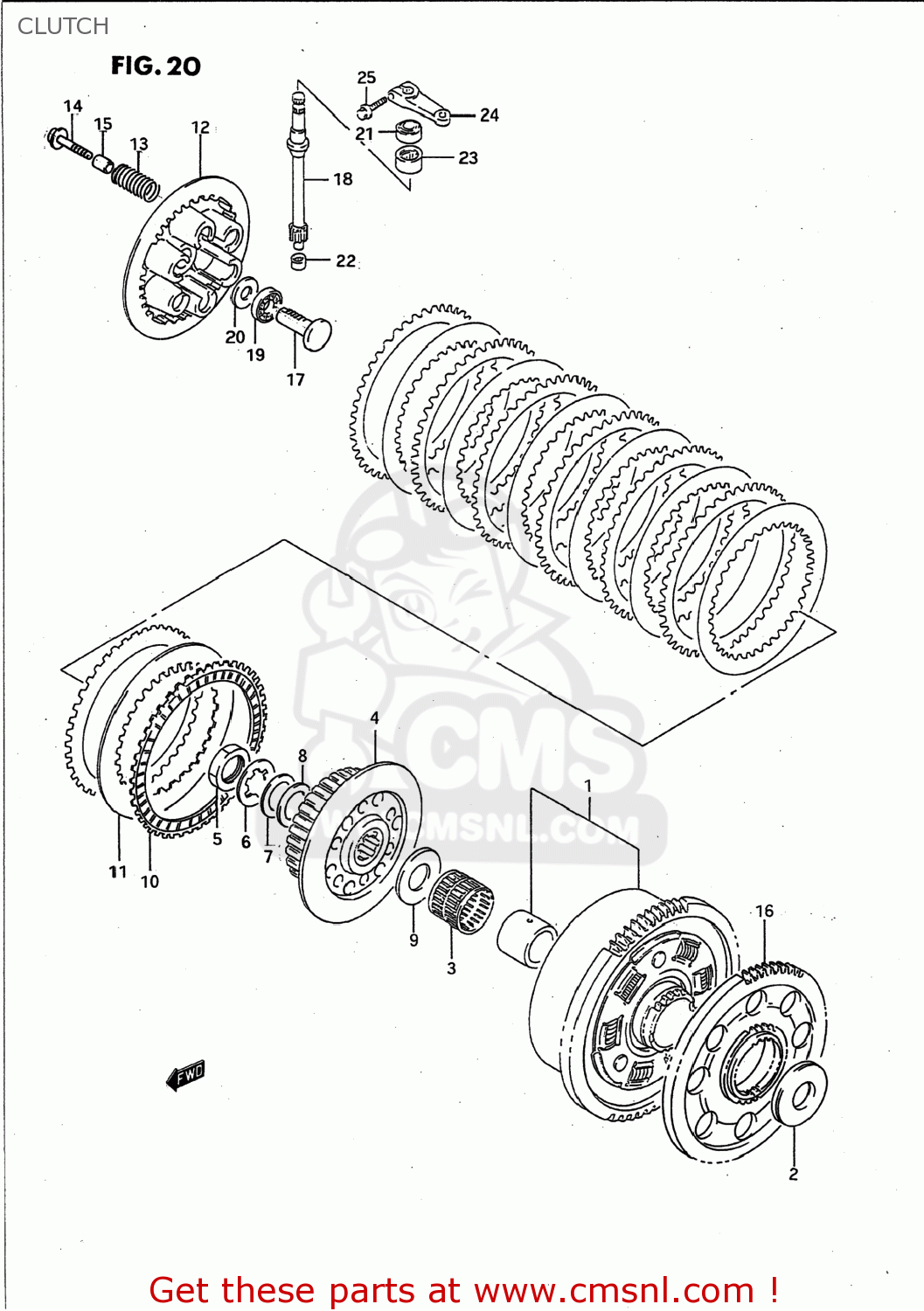

Clutch diagram GSXR750W 1995 (S) USA (E03)
CLUTCH GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120017841
ref: 1-1
GEAR ASSY,PRI DRIVEN
€ 354.50
1-2
2120021841
ref: 1-2
21200-21842
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.50
2
0916025067
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4-1
2141017E10
ref: 4-1
HUB,CLUTCH SLEEVE
€ 111.00
4-2
2141117E20
ref: 4-2
21410-17E10
HUB,CLUTCH SLEEVE
€ 111.00
5
0914024012
ref: 5
NUT
€ 6.00
6
0916725007
ref: 6
WASHER,LOCK
€ 7.50
7
0916425001
ref: 7
WASHER
€ 4.50
8
0821125441
ref: 8
WASHER
€ 2.00
9
0916025056
ref: 9
WASHER(25X50X2.5)
€ 9.50
10-1
2144117E10
ref: 10-1
21441-17E21
PLATE,CLUTCH DRIVE
€ 22.00
10-2
2144117E21
ref: 10-2
PLATE,CLUTCH DRIVE (NAS)
€ 22.00
11
2145117E00
ref: 11
PLATE,CLUTCH DRIVEN
€ 9.00
12-1
2146217D01
ref: 12-1
21462-17E01
DISC,CLUTCH PRESSURE
€ 76.00
12-2
2146217E01
ref: 12-2
DISC,CLUTCH PRESSURE
€ 76.00
13
0944020020
ref: 13
SPRING
€ 8.50
14
0911606161
ref: 14
BOLT(6X40)
€ 3.50
15
0918006198
ref: 15
SPACER(6.2X12X16)
€ 3.50
16-1
2272117E01
ref: 16-1
22721-21E02
GEAR,GENERATOR DRIVE
€ 192.50
16-1
2272117E01
ref: 16-1
22721-21E02
GEAR,GENERATOR DRIVE
€ 192.50
16-2
2272121E01
ref: 16-2
22721-21E02
GEAR,GENERATOR DRIVE
€ 192.50
16-2
2272121E01
ref: 16-2
22721-21E02
GEAR,GENERATOR DRIVE
€ 192.50
17-1
2316507D00
ref: 17-1
23165-21E00
RACK,CLUTCH RELEASE
€ 82.00
17-2
2316521E00
ref: 17-2
RACK,CLUTCH RELEASE
€ 82.00
18-1
2326117C00
ref: 18-1
PINION,CLUTCH RELEASE
€ 38.00
18-2
2326121E00
ref: 18-2
PINION,CLUTCH RELEASE
€ 40.50
19
0926315003
ref: 19
BEARING(15X28X2)
€ 7.00
20-1
0916015015
ref: 20-1
09160-15045
WASHER
€ 4.00
20-2
0916015045
ref: 20-2
WASHER(15.5X28X1)
€ 4.00
21
0928512002
ref: 21
09285-12006
OIL SEAL
€ 7.00
22
0926310013
ref: 22
09263-10014
BEARING 10X14X10
€ 12.00
23
0926315012
ref: 23
BEARING(15X22X12)
€ 11.50
24
2327140000
ref: 24
ARM,CLUTCH RELEASE
€ 40.50
25-1
0154706207
ref: 25-1
BOLT
€ 2.50
25-2
0150006203
ref: 25-2
01500-0620A
BOLT
€ 2.00
