GEAR SHIFTING
GSXR750W 1995 (S) USA (E03)

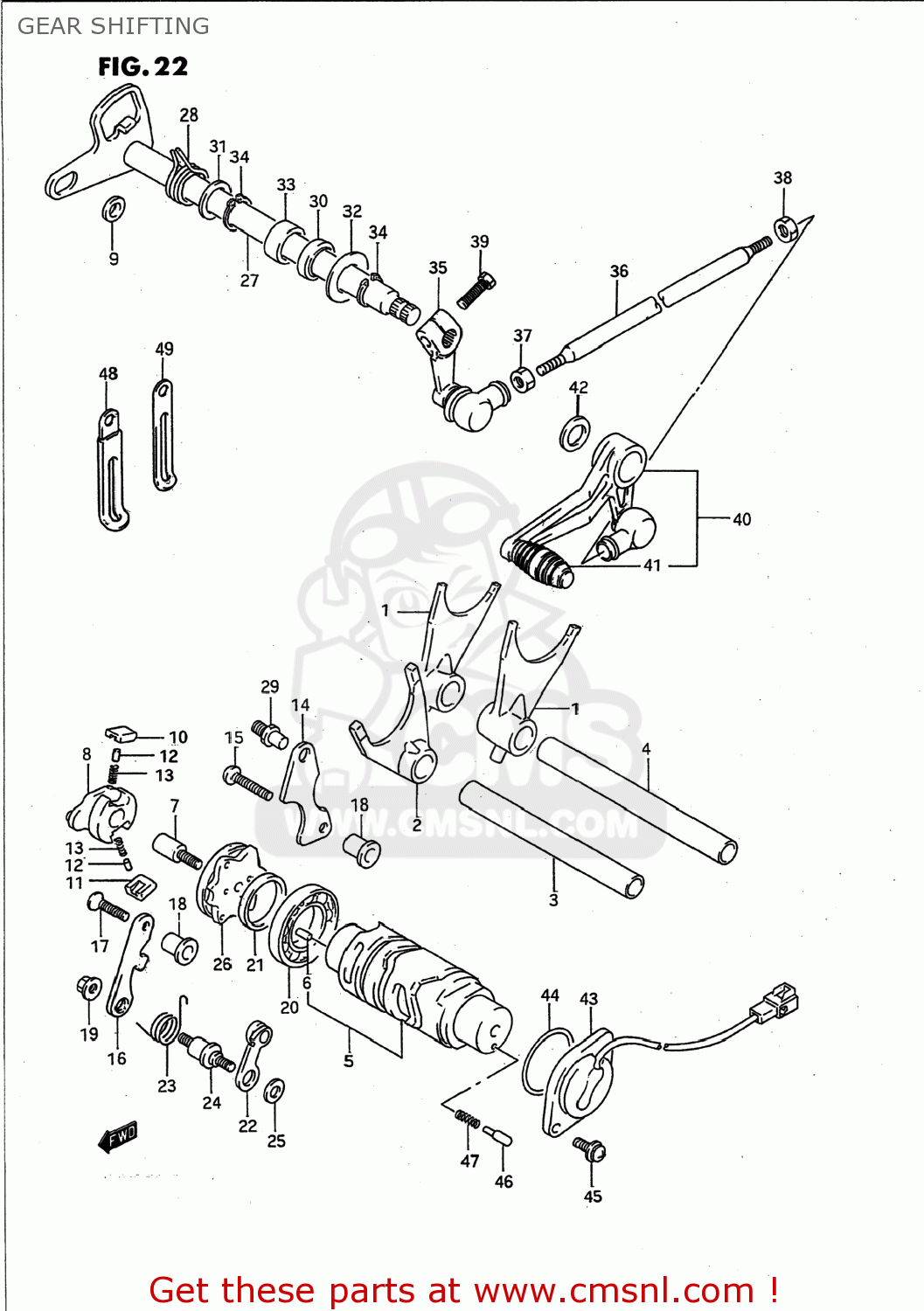

Gear shifting diagram GSXR750W 1995 (S) USA (E03)
GEAR SHIFTING GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521117E00
ref: 1
25211-17E01
FORK,GEAR SHIFT NO.1
€ 64.50
2
2523117E00
ref: 2
25231-35F00
FORK,GEAR SHIFT NO.3
€ 108.50
3
2541126D01
ref: 3
SHAFT,GEAR SHIFT FORK
€ 16.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531017E01
ref: 5
25310-17E02
CAM,GEAR SHIFT
€ 147.00
6
0422104089
ref: 6
PIN
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
8
2532233C00
ref: 8
25322-33C01
SHIFTER,GEAR SHIFT CAM
€ 49.50
9
0918007014
ref: 9
SPACER(7X10X5)
€ 4.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
€ 1.50
13
0944004003
ref: 13
SPRING
€ 1.50
14
2533126D00
ref: 14
LIFTER,GEAR SHIFT PAWL
€ 6.00
15-1
0211206308
ref: 15-1
02112-06307
SCREW 6X30
€ 2.50
15-2
0211206303
ref: 15-2
02112-0630A
SCREW 6X30
€ 2.50
16
2534117E00
ref: 16
GUIDE,GEAR SHIFT CAM
€ 7.50
17-1
0212206308
ref: 17-1
02122-0630B
SCREW
€ 2.00
17-2
0212206303
ref: 17-2
02122-0630B
SCREW
€ 2.00
18
0918006202
ref: 18
SPACER(6.1X10X16)
€ 4.00
19-1
0915906017
ref: 19-1
08319-31067
NUT
€ 2.50
19-2
0831610063
ref: 19-2
08316-1006B
NUT
€ 2.50
20-1
0926225002
ref: 20-1
09262-25006
BEARING
€ 24.00
20-2
0926225006
ref: 20-2
BEARING(25X47X8)
€ 24.00
21
0916025059
ref: 21
WASHER(25X32X3)
€ 5.00
22
2535026D01
ref: 22
STOPPER,GEAR SHIFT CAM
€ 8.50
23
2535526D10
ref: 23
25355-26D21
SPRING,STOPPER ARM
€ 11.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
€ 9.50
25
0821106141
ref: 25
WASHER
€ 2.50
26
2538012B00
ref: 26
PLATE,GEAR SHIFT CAM
€ 10.00
27-1
2551017E00
ref: 27-1
25510-17E10
SHAFT COMP,GEAR SHIFTING
€ 66.00
27-2
2551017E10
ref: 27-2
SHAFT,GEAR SHIFT
€ 66.00
28
0944420002
ref: 28
09444-20003
SPRING
€ 5.50
29
2567101000
ref: 29
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
30
0928314006
ref: 30
SEAL,OIL(14X22X6)
€ 6.50
31
0821114221
ref: 31
09181-14167
WASHER,THRUST
€ 3.50
32-1
0916014034
ref: 32-1
09160-14060
WASHER
€ 3.00
32-2
0916014016
ref: 32-2
WASHER(14X29X0.8)
€ 1.50
33
0926314027
ref: 33
BEARING(14X20X12)
€ 11.00
34
0833131146
ref: 34
08331-3114A
CIRCLIP
€ 2.00
35
2552022A00
ref: 35
ARM,GEAR SHIFT LINK
€ 46.50
36-1
2552517E00
ref: 36-1
25525-17E11
ROD,GEAR SHIFT LINK
€ 19.00
36-2
2552517E10
ref: 36-2
25525-17E11
ROD,GEAR SHIFT LINK
€ 19.00
37
0914006011
ref: 37
NUT
€ 1.50
38-1
0831011067
ref: 38-1
08310-00067
NUT 6MM
€ 2.50
38-2
0831000067
ref: 38-2
NUT
€ 2.50
39-1
0110706207
ref: 39-1
01500-06207
BOLT
€ 2.00
39-2
0150006207
ref: 39-2
BOLT
€ 2.00
40
2560017C03
ref: 40
25600-33E00
LEVER ASSEMBLY,GEAR SHIFTING
€ 106.00
41
2565216500
ref: 41
RUBBER,GEAR SHIFT PEDAL
€ 4.00
42
0916018022
ref: 42
WASHER(18X24X1)
€ 3.00
43
3772048B00
ref: 43
TERMINAL BASE ASSY,NEUTRAL
€ 57.00
44-1
0928036001
ref: 44-1
O RING(D:2.4,ID:36.5)
€ 4.50
44-2
0928035006
ref: 44-2
O RING(D:2.4,ID:35.5)
€ 4.00
45-1
0211275168
ref: 45-1
02112-7516A
SCREW
€ 2.50
45-2
0211275163
ref: 45-2
02112-7516A
SCREW
€ 2.50
46
0920905011
ref: 46
PIN(5X15.5)
€ 2.00
47
0944004010
ref: 47
SPRING
€ 1.50
48-1
0940406402
ref: 48-1
09404-06432
CLAMP
€ 2.50
48-2
0940406429
ref: 48-2
CLAMP(L:45)
€ 2.50
49-1
0940406422
ref: 49-1
09404-06429
CLAMP
€ 2.50
49-2
0940406426
ref: 49-2
09404-06433
CLAMP
€ 3.00
49-3
0940406433
ref: 49-3
CLAMP(L:80)
€ 3.00
