WIRING HARNESS
GSXR750W 1995 (S) USA (E03)

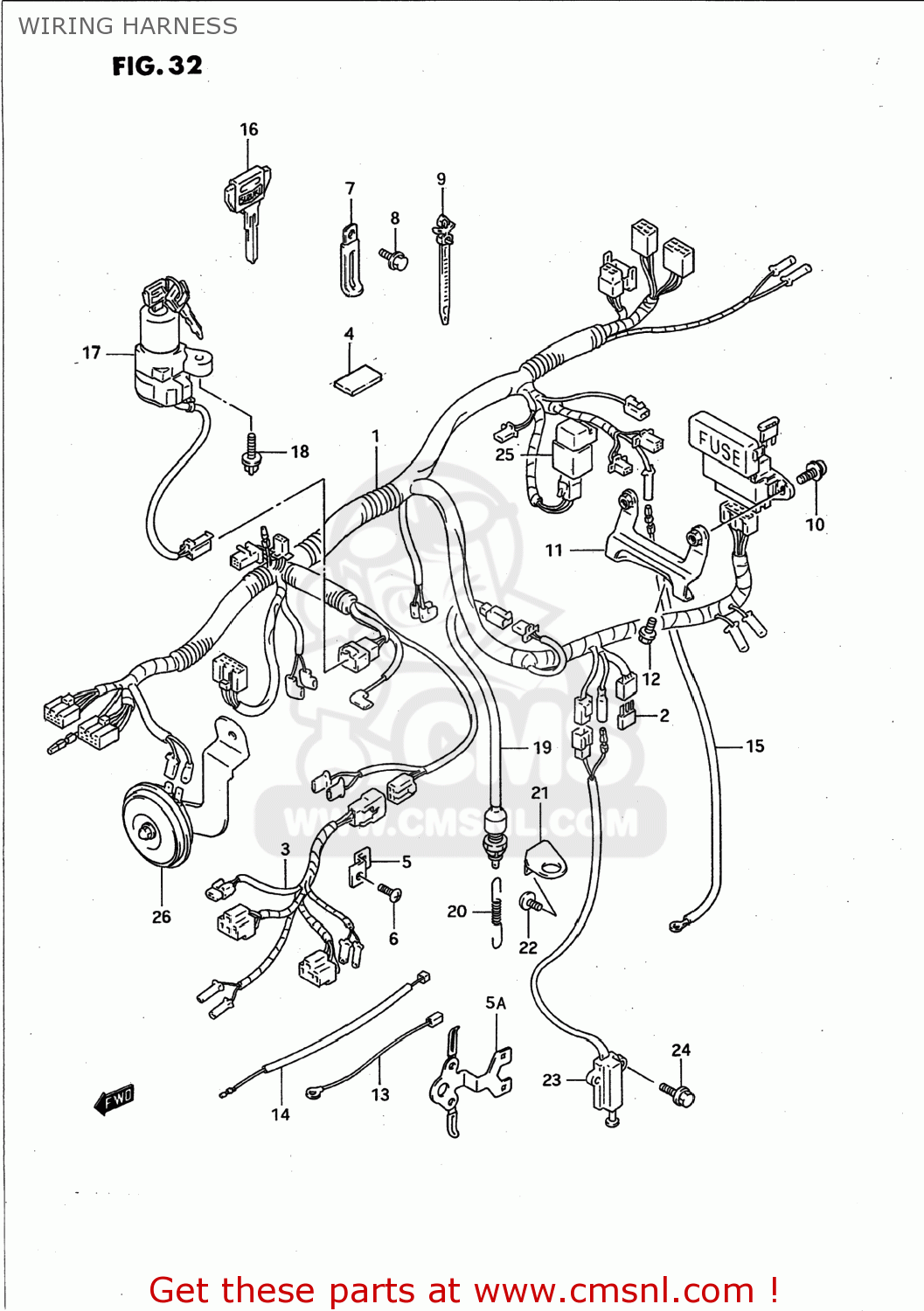

Wiring harness diagram GSXR750W 1995 (S) USA (E03)
WIRING HARNESS GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661017E10
ref: 1-1
36610-17E13
HARNESS,WIRING NO.1
€ 457.50
1-2
3661017E20
ref: 1-2
HARNESS,WIRING NO.1
€ 457.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3-1
3662017E10
ref: 3-1
36856-18D01
HARNESS,WIRING NO.2
€ 95.00
3-2
3662017E00
ref: 3-2
HARNESS,WIRING NO.2
€ 74.50
4
3692010B00
ref: 4
TAPE
€ 3.00
5A
3668017E20
ref: 5A
HOLDER COMP,COUPLER
€ 7.00
5-1
3668717E00
ref: 5-1
HOLDER,COUPLER
€ 6.00
5-2
3668717E10
ref: 5-2
HOLDER,COUPLER
€ 8.50
6
0214205103
ref: 6
02142-0510B
SCREW
€ 2.50
7-1
0940406413
ref: 7-1
09404-06432
CLAMP
€ 2.50
7-10
0940410205
ref: 7-10
CLAMP(L:82)
€ 2.50
7-2
0940406426
ref: 7-2
09404-06433
CLAMP
€ 3.00
7-3
0940406405
ref: 7-3
09404-06433
CLAMP
€ 3.00
7-4
0940406426
ref: 7-4
09404-06433
CLAMP
€ 3.00
7-5
0940406429
ref: 7-5
CLAMP(L:45)
€ 2.50
7-6
0940406431
ref: 7-6
09404-06432
CLAMP(L:65)
€ 2.50
7-7
0940406434
ref: 7-7
CLAMP(L:80 T:1.0)
€ 3.00
7-8
0940408420
ref: 7-8
CLAMP(L:120 T:1.0)
€ 3.50
7-9
0940408418
ref: 7-9
CLAMP(L:65)
€ 3.50
8
0155006107
ref: 8
BOLT
€ 2.50
9-1
0940711402
ref: 9-1
CLAMP(L:90)
€ 2.50
9-2
0940714408
ref: 9-2
09407-17402
CLAMP(L:120)
€ 5.00
9-3
0940714403
ref: 9-3
CLAMP(L:125)
€ 2.50
9-4
0940718403
ref: 9-4
09407-18402
CLAMP L:165
€ 2.50
9-5
0940725401
ref: 9-5
CLAMP(L:235)
€ 4.00
10-1
0211276165
ref: 10-1
02112-7616A
VIS
€ 2.00
10-2
0214206123
ref: 10-2
02142-0612A
SCREW 6X12
€ 2.00
11
4741017E00
ref: 11
BRACKET,FUSE BOX
€ 13.50
12
0155006127
ref: 12
BOLT
€ 2.50
13
3685102900
ref: 13
WIRE,LEAD
€ 4.00
14-1
3685317E00
ref: 14-1
36851-46E00
WIRE
€ 14.00
14-2
3685117E10
ref: 14-2
WIRE,OIL PRESSURE SWITCH LEAD
€ 13.50
15-1
3685117E00
ref: 15-1
WIRE,WATER TEMP GAUGE LEAD
€ 7.50
15-2
3685246E10
ref: 15-2
WIRE,WATER TEMPERATURE GAUGE
€ 9.50
16-1
3714626D10
ref: 16-1
KEY,BLANK
€ 41.50
16-2
3714618E00
ref: 16-2
37146-33E00
KEY,BLANK
€ 13.00
16-3
3714646E00
ref: 16-3
37146-33E00
KEY,BLANK
€ 13.00
17-1
3710033D00
ref: 17-1
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
17-2
3710018E00
ref: 17-2
37100-46E21
LOCK ASSEMBLY,STEERING
€ 110.00
17-3
3710018E01
ref: 17-3
37100-46E21
LOCK ASSEMBLY,STEERING
€ 110.00
18-1
0913906026
ref: 18-1
SCREW(6X18)
€ 2.50
18-2
0911908082
ref: 18-2
09119-08100
BOLT M8X20
€ 3.00
19-1
3774045D00
ref: 19-1
37740-31D00
SWITCH ASSY,STOP LAMP
€ 20.50
19-2
3774024A00
ref: 19-2
SWITCH ASSY,STOP LAMP
€ 20.50
20
0944306012
ref: 20
SPRING
€ 3.00
21
4325033C00
ref: 21
BRACKET,STOP LAMP SWITCH
€ 5.00
22
0913906027
ref: 22
SCREW(6X12)
€ 3.00
23-1
3784048B21
ref: 23-1
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
23-2
3784012D00
ref: 23-2
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
23-3
3784012X50
ref: 23-3
SWITCH ASSY,SIDE STAND WARNING
€ 76.00
24-1
0151706204
ref: 24-1
01550-0620A
BOLT 6X20
€ 2.50
24-2
0155006203
ref: 24-2
01550-0620A
BOLT
€ 2.50
24-3
0155006163
ref: 24-3
01550-0616A
BOLT
€ 2.50
25-1
3874024B10
ref: 25-1
38740-24X50
RELAY ASSEMBLY
€ 37.50
25-2
3874024X50
ref: 25-2
RELAY ASSY
€ 37.50
26-1
3850217E00
ref: 26-1
38502-17E12
HORN ASSEMBLY,LOW PITCH
€ 78.00
26-2
3850217E10
ref: 26-2
38502-17E12
HORN ASSEMBLY,LOW PITCH
€ 78.00
26-3
3850217E11
ref: 26-3
38502-17E12
HORN ASSEMBLY,LOW PITCH
€ 78.00
