CRANKSHAFT
GSXR750W 1995 (S) USA (E03)

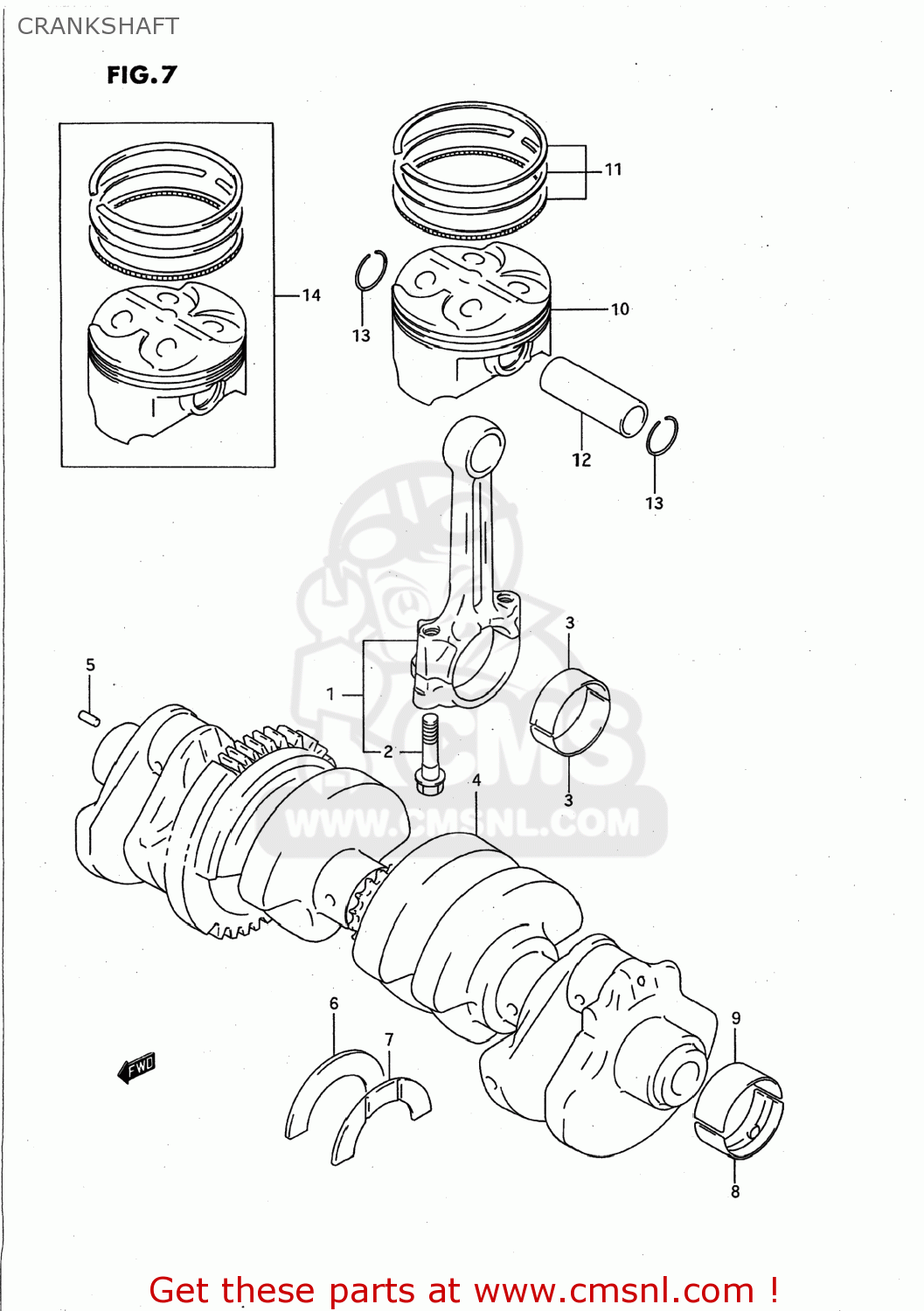

Crankshaft diagram GSXR750W 1995 (S) USA (E03)
CRANKSHAFT GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1216017D00
ref: 1-1
12160-17E01
ROD ASSEMBLY,CONNECTING
€ 197.00
1-2
1216017E00
ref: 1-2
12160-17E01
CONNECTING ROD ASSEMBLY
€ 197.00
2
1216327A52
ref: 2
BOLT,CONNECTING ROD
€ 20.00
3-1
1216417E000A0
ref: 3-1
12164-17E01-0A0
BEARING,CRANK PIN (GREEN)
€ 14.50
3-2
1216417E010A0
ref: 3-2
BEARING,CRANK PIN
€ 14.50
3-3
1216417E000B0
ref: 3-3
12164-17E01-0B0
BEARING,CRANK PIN
€ 14.50
3-4
1216417E010B0
ref: 3-4
BEARING,CRANK PIN
€ 14.50
3-5
1216417E000C0
ref: 3-5
12164-17E01-0C0
BEARING,CRANK PIN
€ 15.00
3-6
1216417E010C0
ref: 3-6
BEARING,CRANK PIN
€ 15.00
3-7
1216417E000D0
ref: 3-7
12164-17E01-0D0
BEARING,CRANK PIN
€ 15.50
3-8
1216417E010D0
ref: 3-8
BEARING,CRANK PIN
€ 15.50
4
1200017821
ref: 4
CRANKSHAFT SET
€ 1,346.00
5
0422104089
ref: 5
PIN
€ 1.50
6
1222817E000D0
ref: 6
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-1
1222817E000A0
ref: 7-1
BEARING,CRANK THRUST(RED)
€ 7.50
7-2
1222817E000B0
ref: 7-2
BEARING,CRANK THRUST(BLACK)
€ 7.50
7-3
1222817E000C0
ref: 7-3
BEARING,CRANK THRUST(BLUE)
€ 7.50
7-4
1222817E000D0
ref: 7-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-5
1222817E000E0
ref: 7-5
BEARING,CRANK THRUST(YELLOW)
€ 7.50
7-6
1222817E000F0
ref: 7-6
BEARING,CRANK THRUST(WHITE)
€ 7.50
8-1
1222917E000A0
ref: 8-1
BEARING,CRANKSHAFT(GREEN)
€ 15.50
8-2
1222917E000B0
ref: 8-2
BEARING,CRANKSHAFT(BLACK)
€ 16.50
8-3
1222917E000C0
ref: 8-3
BEARING,CRANKSHAFT(BROWN)
€ 16.50
8-4
1222917E000D0
ref: 8-4
BEARING,CRANKSHAFT(YELLOW)
€ 15.50
9-1
1222917E100A0
ref: 9-1
BEARING,CRANKSHAFT(GREEN)
€ 14.00
9-2
1222917E100B0
ref: 9-2
BEARING,CRANKSHAFT(BLACK)
€ 16.50
9-3
1222917E100C0
ref: 9-3
BEARING,CRANKSHAFT(BROWN)
€ 16.50
9-4
1222917E100D0
ref: 9-4
BEARING,CRANKSHAFT(YELLOW)
€ 15.00
10-1
1211117E040F0
ref: 10-1
12111-17E20-0F0
PISTON (70.00MM)
€ 84.00
10-2
1211117E200F0
ref: 10-2
PISTON (70.00MM)
€ 84.00
11-1
1214007D10
ref: 11-1
RING SET,PISTON
€ 103.50
11-2
1214017E10
ref: 11-2
RING SET,PISTON
€ 83.50
12
1215107D00
ref: 12
PIN,PISTON
€ 13.50
13
0938118003
ref: 13
09381-18005
CIRCLIP
€ 3.00
14-1
1210317820050
ref: 14-1
PISTON SET(OS:0.5)
€ 127.50
14-2
1210317820100
ref: 14-2
PISTON SET (OS:1.0)
€ 162.00
14-3
1210017E20050
ref: 14-3
PISTON SET(OS:0.5)
€ 206.00
14-4
1210017E20100
ref: 14-4
PISTON SET (OS:1.0)
€ 125.00
