TRANSMISSION
GSXR750W 1995 (S) USA (E03)

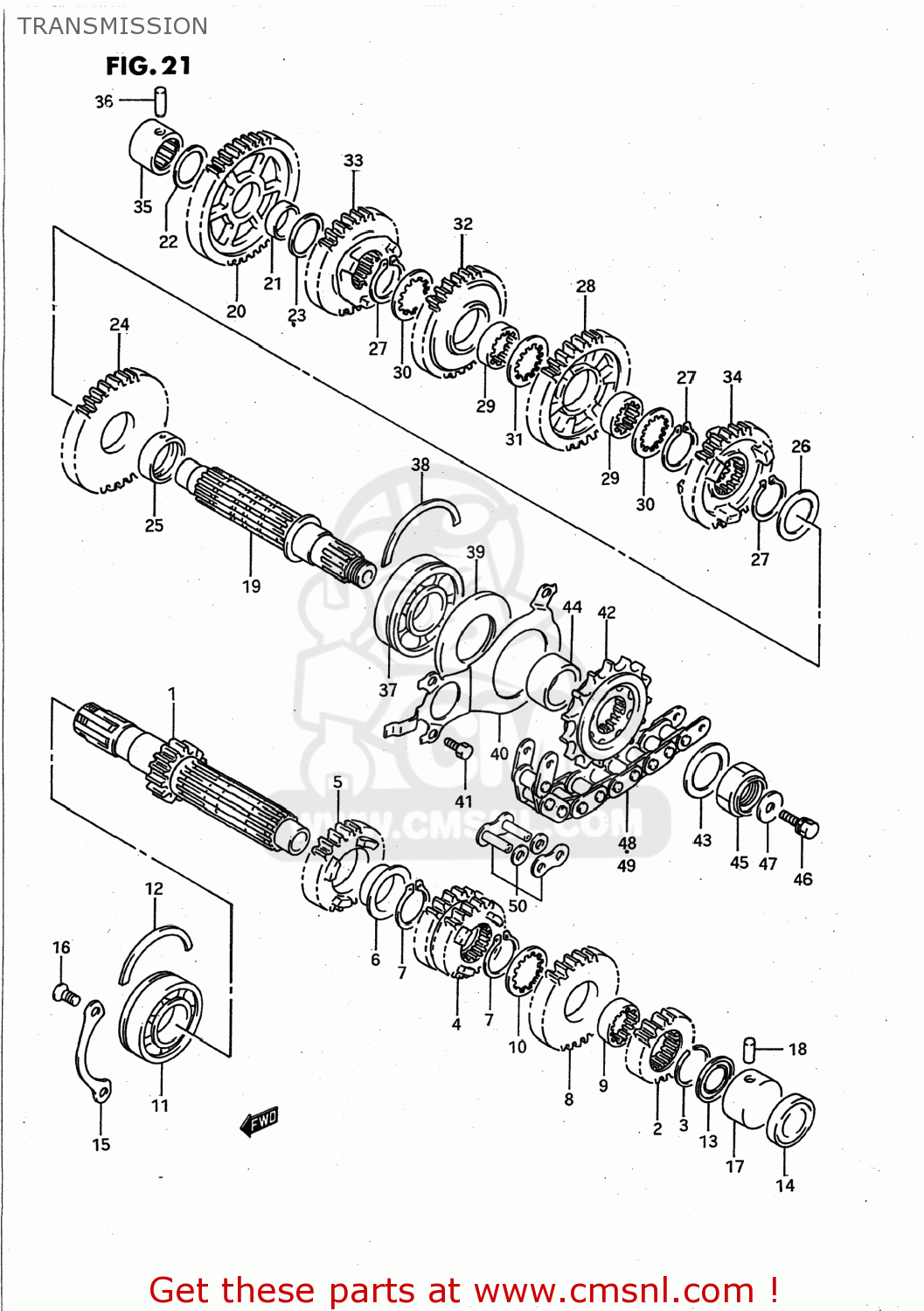

Transmission diagram GSXR750W 1995 (S) USA (E03)
TRANSMISSION GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412117E01
ref: 1-1
24120-17E20
SHAFT,COUNTER
€ 205.50
1-2
2412017E20
ref: 1-2
SHAFT,COUNTER
€ 205.50
2
2422117E00
ref: 2
GEAR,SECOND DRIVE
€ 70.00
3
0938027004
ref: 3
CIRCLIP
€ 3.50
4
2423117E00
ref: 4
GEAR,THIRD & FOURTH DRIVE
€ 146.50
5-1
2425117E01
ref: 5-1
24251-17E11
GEAR,FIFTH DRIVE
€ 146.00
5-2
2425117E10
ref: 5-2
24251-17E11
GEAR,FIFTH DRIVE
€ 146.00
6
0930128001
ref: 6
BUSH(28X32X2)
€ 19.50
7
0938027001
ref: 7
CIRCLIP
€ 2.00
8-1
2426117E01
ref: 8-1
24261-17E10
GEAR,SIXTH DRIVE
€ 153.50
8-2
2426117E10
ref: 8-2
GEAR,SIXTH DRIVE
€ 153.50
9
2426217E00
ref: 9
24262-17E01
BUSHING,SIXTH DRIVE GEAR
€ 29.00
10
0916727001
ref: 10
WASHER,LOCK
€ 3.50
11-1
0926225051
ref: 11-1
09262-25105
BEARING(25X62X17)
€ 59.50
11-2
0926225105
ref: 11-2
BEARING(25X62X17)
€ 59.50
12
0939062006
ref: 12
09390-62012
C-RING
€ 5.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
€ 7.00
14
2311627A30
ref: 14
CAP,COUNTER SHAFT,L
€ 10.00
15
2474127A00
ref: 15
RETAINER,CNTR SHAFT BEARING
€ 7.00
16-1
0212206167
ref: 16-1
SCREW
€ 2.00
16-2
0212206163
ref: 16-2
02122-0616A
SCREW ,6X16
€ 2.00
17
0926320069
ref: 17
BEARING(20X34X17.5)
€ 39.50
18
0422107129
ref: 18
PIN
€ 1.50
19-1
2413117E01
ref: 19-1
24131-17E10
SHAFT,DRIVE
€ 212.50
19-2
2413117E10
ref: 19-2
SHAFT,DRIVE
€ 212.50
20
2431117E01
ref: 20
GEAR,1ST DRIVEN(NT:43)
€ 109.00
21
0930022008
ref: 21
BUSH(22X26X9)
€ 10.50
22
0821120341
ref: 22
WASHER
€ 2.00
23
0821122341
ref: 23
WASHER
€ 3.00
24-1
2432117E020A0
ref: 24-1
24321-17E02
GEAR,SECOND DRIVEN
€ 85.50
24-2
2432117E10
ref: 24-2
GEAR,2ND DRIVEN
€ 90.00
25-1
09300280030A0
ref: 25-1
09300-28003
BUSHING
€ 19.50
25-2
0930028003
ref: 25-2
BUSH(28X32X9.5)
€ 19.50
26
0821128381
ref: 26
09181-28195
WASHER, THRUST
€ 3.50
27
0938027001
ref: 27
CIRCLIP
€ 2.00
28
2433117E02
ref: 28
GEAR,3RD DRIVEN(NT:33)
€ 103.00
29
2433217E02
ref: 29
BUSH,3RD DRIVEN GEAR
€ 25.00
30
0916727001
ref: 30
WASHER,LOCK
€ 3.50
31
0916727002
ref: 31
WASHER,LOCK
€ 5.00
32
2434117E02
ref: 32
24341-17E04
GEAR,FOURTH DRIVEN
€ 131.00
33
2435117E02
ref: 33
GEAR,5TH DRIVEN(NT:29)
€ 101.00
34-1
2436117E10
ref: 34-1
GEAR,SIXTH DRIVEN
€ 100.50
34-2
2436117E20
ref: 34-2
GEAR,6TH DRIVEN
€ 110.00
35
0926320040
ref: 35
BEARING(20X34X20)
€ 42.50
36
0422107209
ref: 36
PIN
€ 1.50
37
0926228025
ref: 37
BEARING(28X70X18)
€ 97.50
38
0939070001
ref: 38
C RING
€ 5.50
39
0928336008
ref: 39
SEAL,OIL(34.8X70X6)
€ 16.50
40
2475117E00
ref: 40
RETAINER,DRIVE SHAFT OIL SEAL
€ 9.00
41-1
0110706107
ref: 41-1
01500-06107
BOLT
€ 2.00
41-2
0150006123
ref: 41-2
01500-0612A
BOLT
€ 2.00
42
2751017C00
ref: 42
27510-17C10
SPROCKET,ENGINE (NT:15)
€ 67.00
43
0821125402
ref: 43
09181-25268
WASHER,THRUST
€ 3.00
44
0918025098
ref: 44
SPACER(25X36X17.7)
€ 19.00
45
0915920004
ref: 45
NUT
€ 12.00
46
0114706168
ref: 46
01570-06167
BOLT
€ 2.50
47
0821206222
ref: 47
WASHER
€ 1.50
48
2760017C20108
ref: 48
27600-24F20-108
CHAIN ASSEMBLY,DRIVE 50GSV
€ 258.00
49
2760017E20108
ref: 49
27600-24F20-108
CHAIN ASSEMBLY RK50GSVZ1.1
€ 258.00
50
2762017E20
ref: 50
27620-24F20
JOINT SET,DRIVE CHAIN
€ 8.00
