FRONT DAMPER (MODEL R/S)
GSXR750W 1995 (S) USA (E03)

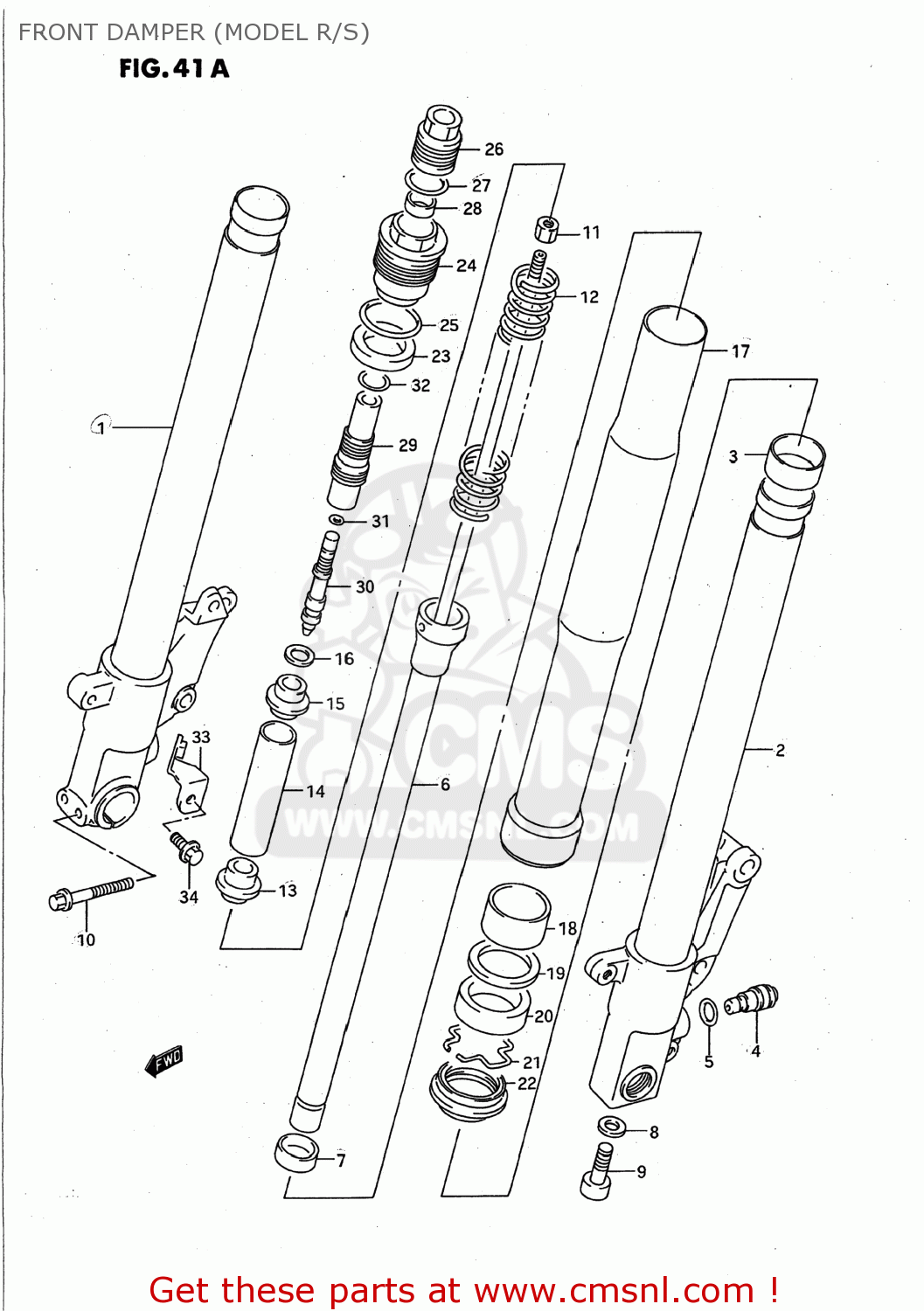

Front damper (model r/s) diagram GSXR750W 1995 (S) USA (E03)
FRONT DAMPER (MODEL R/S) GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110317E30
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110317E70
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110417E30
ref:
DAMPER ASSEMBLY,LEFT
€ 0.00
5110417E70
ref:
DAMPER ASSEMBLY,LEFT
€ 844.00
1
5111017E20
ref: 1
TUBE,INNER,R
€ 533.50
2
5112017E20
ref: 2
TUBE,INNER,L
€ 538.00
3
5112117C00
ref: 3
BUSH,SLIDE
€ 20.50
4
5183017E00
ref: 4
51830-07D00
PIECE,ADJUSTER
€ 71.00
5
5183417C00
ref: 5
09280-14011
O RING
€ 3.50
6
5211017E30
ref: 6
DAMPER,FRONT
€ 177.50
7
5181517D00
ref: 7
PLATE,CENTERING
€ 9.50
8
0916110009
ref: 8
WASHER(10X15X1.5)
€ 2.00
9
5114717C00
ref: 9
BOLT
€ 21.00
10
0155008457
ref: 10
BOLT
€ 4.00
11
5182717C00
ref: 11
NUT
€ 10.50
12
5117117E20
ref: 12
SPRING,MAIN
€ 92.00
13
5117217E00
ref: 13
JOINT,SPRING
€ 25.00
14
5117617E00
ref: 14
SPACER,SPRING
€ 13.50
15
5117522D00
ref: 15
GUIDE,SPRING UPR
€ 15.00
16
5117234370
ref: 16
GUIDE,SPRING
€ 3.50
17-1
5113117E20
ref: 17-1
TUBE,OUTER
€ 512.50
17-2
5113117E40
ref: 17-2
TUBE,OUTER
€ 500.50
18
5115217E20
ref: 18
BUSH,GUIDE
€ 21.00
19
5116817C00
ref: 19
SPACER,SEAL
€ 5.00
20
5115314D00
ref: 20
SEAL,OIL
€ 20.50
21
5155638B00
ref: 21
CIRCLIP,FORK OIL SEAL
€ 4.50
22
5117329E00
ref: 22
SEAL,DUST
€ 23.00
23
5119317D00
ref: 23
RUBBER,SEAT
€ 13.00
24
5118918D00
ref: 24
BOLT,FORK
€ 79.00
25
5118708D00
ref: 25
O RING,FORK BOLT
€ 6.00
26
5182817D00
ref: 26
ADJUSTER,SPRING
€ 42.50
27
5119917D00
ref: 27
O RING
€ 6.00
28
5182322D30
ref: 28
PLATE,SPRING ADJUSTER
€ 33.50
29
5182917E00
ref: 29
CASE,ADJUSTER
€ 69.50
30
5182117E20
ref: 30
PIECE,ADJUSTER
€ 32.50
31
5182417C00
ref: 31
09280-03002
O RING
€ 2.00
32
5183717D00
ref: 32
RING,STOPPER
€ 6.00
33-1
5159017D10
ref: 33-1
51590-17D1V
PLATE,FRONT FENDER,LEFT
€ 10.00
33-2
5158017D10
ref: 33-2
51580-17D1V
PLATE,FRONT FENDER,RIGHT
€ 11.50
34
0155008127
ref: 34
BOLT
€ 3.50
