INSTALLATION PARTS (MODEL P)
GSXR750W 1995 (S) USA (E03)

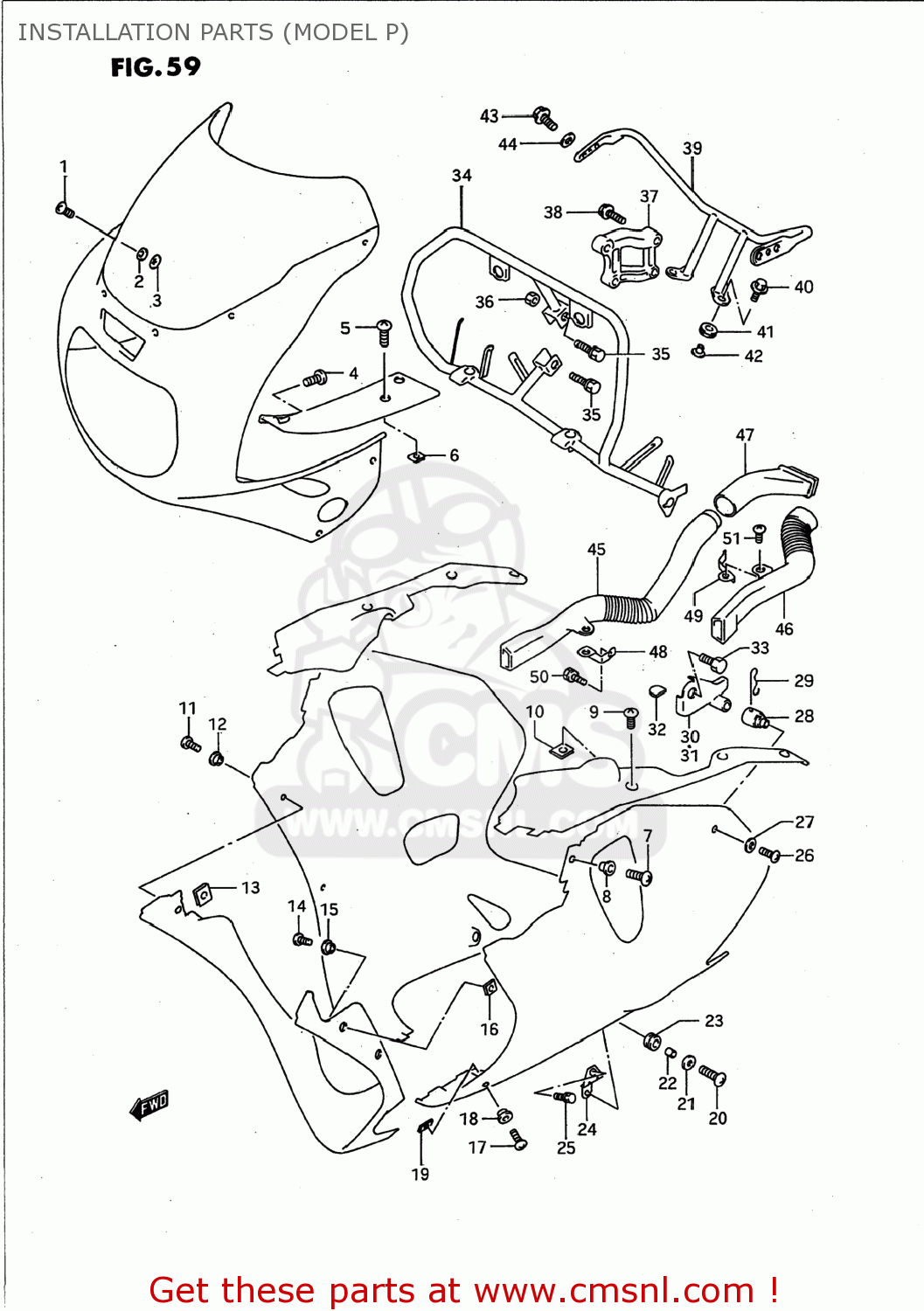

Installation parts (model p) diagram GSXR750W 1995 (S) USA (E03)
INSTALLATION PARTS (MODEL P) GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9461622D00
ref: 1
PIN,WINDSCREEN
€ 2.50
2
0932004007
ref: 2
09320-04501
CUSHION
€ 3.00
3
0914804032
ref: 3
NUT
€ 2.50
4
0214205124
ref: 4
02142-0512A
SCREW, FRONT & REAR
€ 1.50
5
0324205124
ref: 5
03241-0512A
SCREW
€ 1.50
6
0914805004
ref: 6
09148-05013
NUT
€ 1.50
7
0913905032
ref: 7
SCREW(5X18)
€ 2.50
8
0916105018
ref: 8
WASHER(5.2X14X1.5)
€ 6.50
9
0324205124
ref: 9
03241-0512A
SCREW
€ 1.50
10
0914805004
ref: 10
09148-05013
NUT
€ 1.50
11
0913905032
ref: 11
SCREW(5X18)
€ 2.50
12
0916105017
ref: 12
WASHER(5.2X14X1.5)
€ 3.00
13
9448412C11
ref: 13
NUT,RH & CTR UNDER COWLING
€ 6.50
14
0324205165
ref: 14
03241-0516A
SCREW
€ 1.50
15
0916105017
ref: 15
WASHER(5.2X14X1.5)
€ 3.00
16
0914805004
ref: 16
09148-05013
NUT
€ 1.50
17
0913905032
ref: 17
SCREW(5X18)
€ 2.50
18
0916105017
ref: 18
WASHER(5.2X14X1.5)
€ 3.00
19
9448412C11
ref: 19
NUT,RH & CTR UNDER COWLING
€ 6.50
20
0913906029
ref: 20
SCREW(6X25)
€ 5.00
21
0916006056
ref: 21
WASHER(6.5X18X1)
€ 2.00
22
0918006114
ref: 22
09180-06307
SPACER (6.1X9X10)
€ 3.00
23
0932009016
ref: 23
CUSHION
€ 2.50
24-1
9474017E00
ref: 24-1
BRACKET,UNDER COWLING LWR,R
€ 9.50
24-2
9484017E00
ref: 24-2
94840-17E01
BRACKET,UNDER COWLING
€ 9.50
25
0911606027
ref: 25
09116-06024
BOLT
€ 2.00
26
0913906028
ref: 26
SCREW(6X20)
€ 3.50
27
0916006053
ref: 27
09160-06125
WASHER
€ 2.00
28
9452012C00
ref: 28
PLUG,UNDER COWL FTG,CTR
€ 9.00
29
9452312C00
ref: 29
94523-12C0V
PIN,UNDER COWLING FITTING PIPE
€ 2.50
30
9453017E00
ref: 30
94530-17E01
BRACE,UNDER COWLING,UPPER
€ 13.50
31
9454017E00
ref: 31
94540-17E01
BRACE,UNDER COWLING,UPPER
€ 12.50
32
9455117E00
ref: 32
CUSHION,UPR BRACE
€ 4.50
33
0113706125
ref: 33
01570-0612A
BOLT, BRACKET (6X12)
€ 1.50
34
9451017E00
ref: 34
BRACE,COWLING
€ 228.50
35
0113708308
ref: 35
01570-08307
BOLT,BRACE (8X30)
€ 3.50
36
0831321087
ref: 36
08313-20087
NUT 8MM
€ 2.50
37
9453141C00
ref: 37
BRACE,COWLING CTR
€ 46.50
38
0118708408
ref: 38
01580-08407
BOLT,BRACE (8X40)
€ 3.50
39
9452017E00
ref: 39
BRACE,RR VIEW MIRRORR
€ 152.00
40
0911606143
ref: 40
09116-06115
BOLT 6X20
€ 2.00
41
0932009009
ref: 41
CUSHION
€ 5.00
42
0916906062
ref: 42
WASHER
€ 3.00
43
0913606004
ref: 43
SCREW(6X12)
€ 2.00
44
0916106023
ref: 44
WASHER(6.2X19X1.5)
€ 3.50
45
9445117E00
ref: 45
PIPE,AIR INTAKE FR,R
€ 40.50
46
9445217E00
ref: 46
PIPE,AIR INTAKE FR,L
€ 40.50
47
9445317C00
ref: 47
PIPE,AIR INTAKE RR,R
€ 23.50
48
9445417E00
ref: 48
94454-17E01
JOINT,AIR INTAKE
€ 11.50
49
9445517E00
ref: 49
94455-17E01
BRACKET,AIR INTAKE,LEFT
€ 10.00
50
0113706125
ref: 50
01570-0612A
BOLT, BRACKET (6X12)
€ 1.50
51
0214206125
ref: 51
02142-0612A
SCREW 6X12
€ 2.00
