WATER PUMP
GSXR750W 1995 (S) USA (E03)

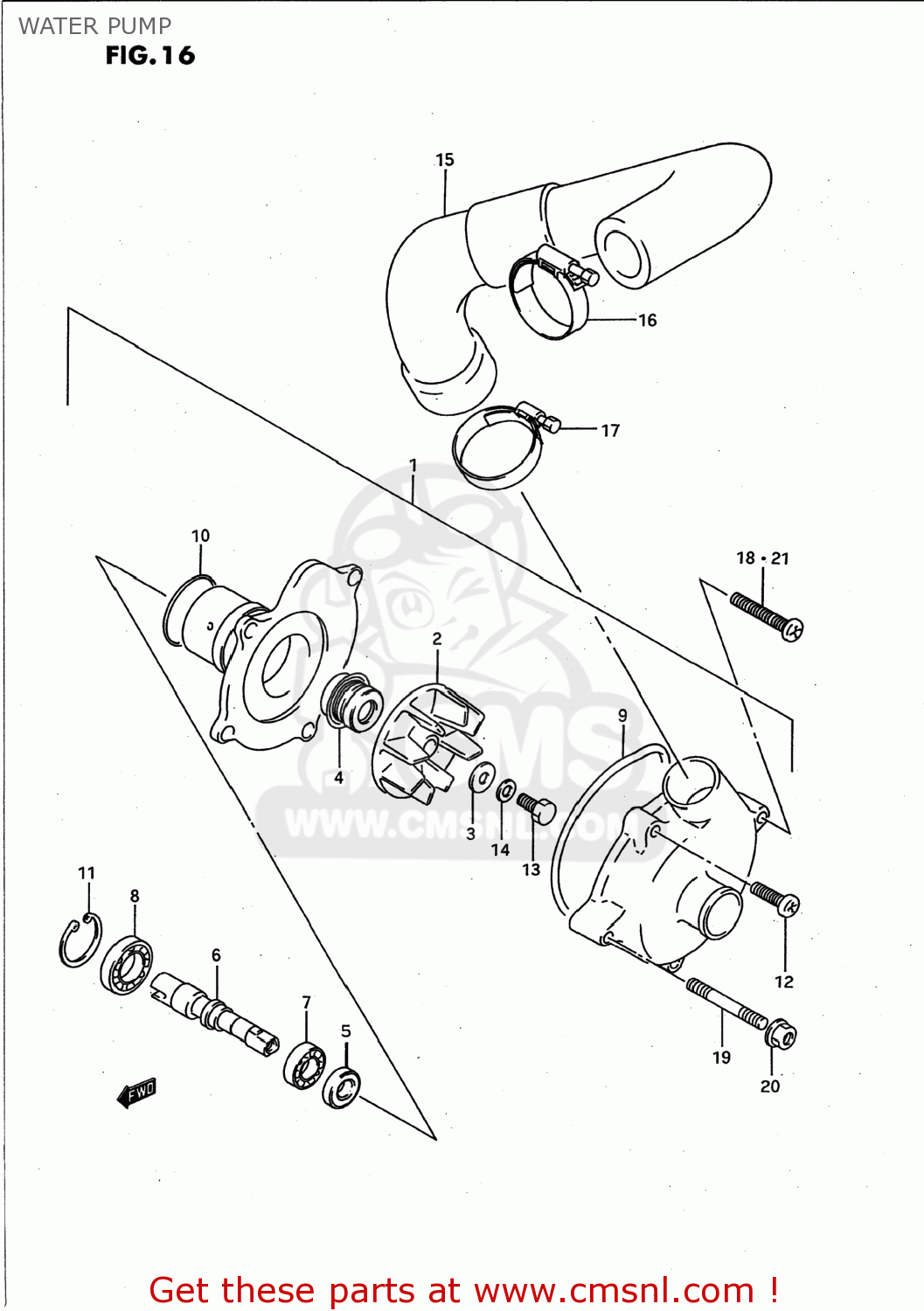

Water pump diagram GSXR750W 1995 (S) USA (E03)
WATER PUMP GSXR750W 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1740017E00
ref: 1-1
17400-17E01
PUMP ASSEMBLY,WATER
€ 385.50
1-2
1740017E01
ref: 1-2
PUMP ASSY,WATER
€ 385.50
2
1749117E00
ref: 2
17491-17E01
IMPELLER
€ 15.00
3
0916806025
ref: 3
GASKET(6X15X2.2) (NAS)
€ 3.00
4
1747046A00
ref: 4
17470-02F00
SEAL,MECHANICAL
€ 21.50
5
1746138A00
ref: 5
09283-10004
OILSEAL
€ 4.50
6-1
1751117E00
ref: 6-1
SHAFT
€ 86.00
6-2
1751117E01
ref: 6-2
SHAFT
€ 109.50
7-1
0811369010
ref: 7-1
BEARING
€ 19.00
7-2
0926210014
ref: 7-2
BEARING(10X26X8)
€ 13.00
8-1
0926215008
ref: 8-1
BALL BEARING 15X28X7
€ 17.00
8-2
0926212001
ref: 8-2
BEARING(12X28X8)
€ 15.00
9
1741833400
ref: 9
O RING
€ 4.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
€ 13.00
11
0833141286
ref: 11
08331-4128A
CIRCLIP
€ 3.50
12-1
0211206166
ref: 12-1
02112-0616A
SCREW
€ 2.00
12-2
0211206163
ref: 12-2
02112-0616A
SCREW 6X16
€ 2.00
13
0910006099
ref: 13
BOLT(6X13)
€ 2.00
14
0916406006
ref: 14
WASHER
€ 2.50
15-1
1785417E00
ref: 15-1
17854-17E01
HOSE,WATER PUMP,OUTLET
€ 24.50
15-2
1785417E01
ref: 15-2
HOSE,WATER PUMP OUTLET
€ 24.50
16-1
0940230502
ref: 16-1
09402-32511
CLAMP
€ 11.50
16-2
0940232511
ref: 16-2
CLAMP
€ 11.50
17-1
0940233502
ref: 17-1
09402-38511
CLAMP
€ 10.50
17-2
0940238511
ref: 17-2
CLAMP
€ 10.50
18
0211206357
ref: 18
SCREW
€ 2.50
19
0910806117
ref: 19
BOLT,STUD
€ 3.00
20
0831610063
ref: 20
08316-1006B
NUT
€ 2.50
21
0211206353
ref: 21
02112-0635B
SCREW
€ 2.50
