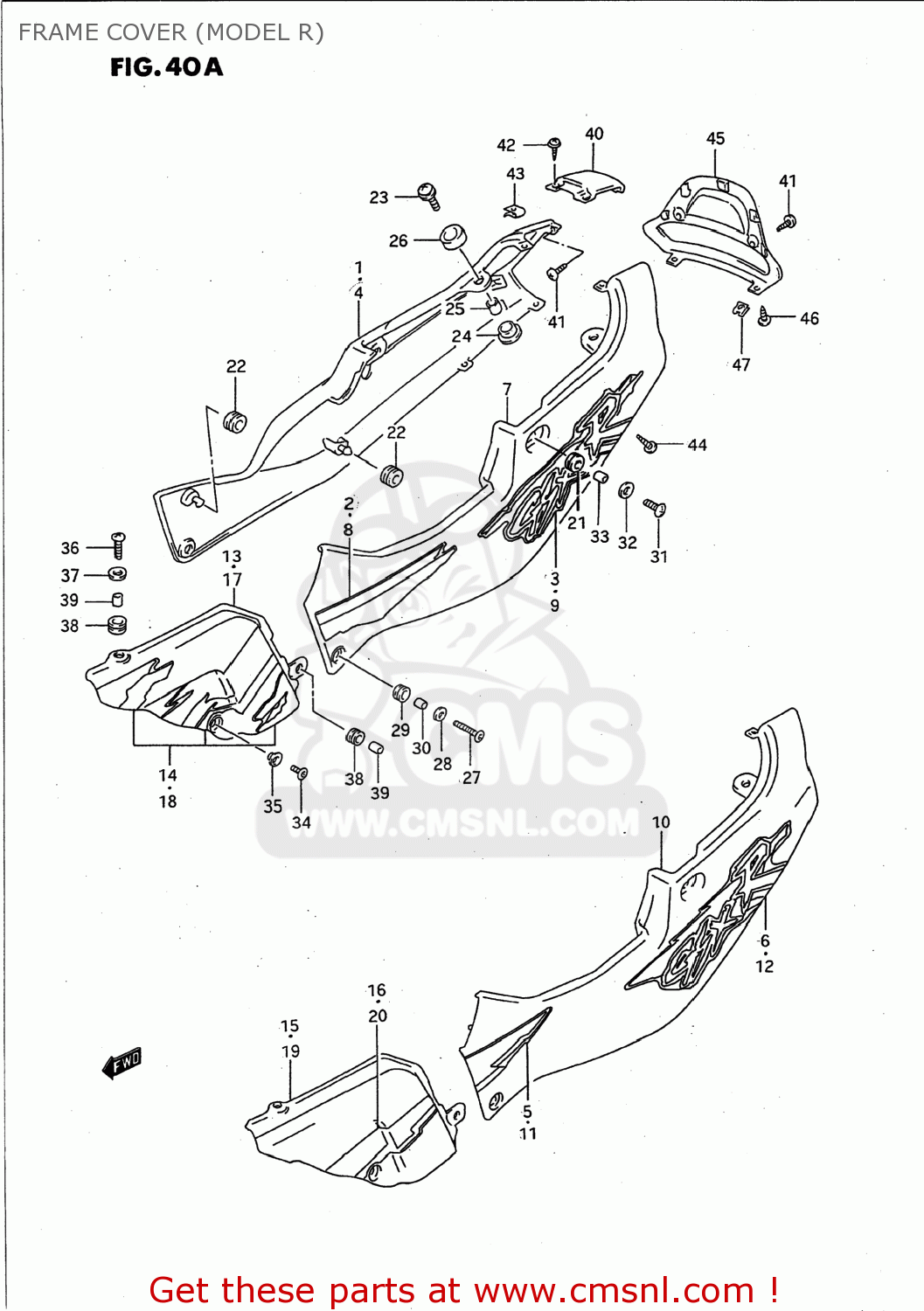

FRAME COVER (MODEL R)

ref

part #

description

quantity

1

4710017EA01LX
ref: 1

COVER ASSEMBLY,FRAME,RIGHT

€ 406.00

2

6813546E10C4P
ref: 2

TAPE,FRAME COVER STRIPE,R

€ 21.00

3

6813146E001WW
ref: 3

EMBLEM,FRAME COVER,R

€ 87.00

4

4710017EB01UJ
ref: 4

COVER ASSEMBLY,FRAME,RIGHT

€ 0.00

5

6813517E10C4S
ref: 5

TAPE,FRAME COVER STRIPE

€ 26.00

6

6813117E201YA
ref: 6

EMBLEM,FRAME COVER,R

€ 95.50

7

4720017EA01LX
ref: 7

COVER ASSY,FRAME,L(WHITE)

€ 329.00

8

6814546E10C4P
ref: 8

TAPE,FRAME COVER STRIPE,L

€ 20.50

9

6814146E001WW
ref: 9

EMBLEM,FRAME COVER,LEFT

€ 96.00

10

4720017EB01UJ
ref: 10

COVER ASSEMBLY,FRAME,LEFT

€ 0.00

11

6814517E10C4S
ref: 11

TAPE,FRAME COVER STRIPE

€ 24.00

12

6814117E201YA
ref: 12

EMBLEM,FRAME COVER,LEFT

€ 82.50

13

4750046E201LE
ref: 13

COVER ASSY,FRAME BODY,R

€ 193.00

14

6866046E10C4P
ref: 14

TAPE SET,FRAME COVER B

€ 64.50

15

4750017E601UJ
ref: 15

COVER ASSEMBLY,FRAME BODY

€ 153.00

16

6866517E00C4S
ref: 16

TAPE,FRAME COVER BODY,R

€ 22.00

17

4760046E201LE
ref: 17

COVER ASSY,FRAME BODY,L

€ 193.00

18

6867046E10C4P
ref: 18

TAPE SET,FRAME COVER B

€ 64.00

19

4760017E601UJ
ref: 19

COVER ASSY,FRAME BODY,L

€ 152.50

20

6867517E00C4S
ref: 20

TAPE,FRAME COVER BODY,L

€ 22.00

21

9443326B00
ref: 21

CUSHION

€ 4.00

22

0932008018
ref: 22

CUSHION

€ 4.00

23

0913606083
ref: 23

SCREW(6X30)

€ 3.00

24

4532617C00
ref: 24

CUSHION,FRAME COVER LWR

€ 7.00

25

0918006167
ref: 25
09180-06286

SPACER (6,8X10X9.4)

€ 2.50

26

4514904A00
ref: 26

CUSHION,TAIL COVER UPR

€ 2.00

27

0913906042
ref: 27

SCREW(6X30)

€ 7.50

28

0916006006
ref: 28
09160-06084

WASHER

€ 2.00

29

0932009016
ref: 29

CUSHION

€ 2.50

30

0918006011
ref: 30
09180-06263

SPACER (6.1X9X9)

€ 2.00

31

0913906050
ref: 31

SCREW(6X20)

€ 5.00

32

0916006054
ref: 32

WASHER(6.5X22X1.6)

€ 2.00

33

0918006027
ref: 33
09180-06258

SPACER (6.3X9.1X6.7)

€ 3.00

34

0913905025
ref: 34

SCREW(5X14)

€ 2.00

35

0916906040
ref: 35

WASHER

€ 2.00

36

0214206253
ref: 36
02142-0625A

SCREW

€ 1.50

37

0916006039
ref: 37
09160-06109

WASHER (6.5X18X1.6)

€ 2.00

38

0932009016
ref: 38

CUSHION

€ 2.50

39

0918006011
ref: 39
09180-06263

SPACER (6.1X9X9)

€ 2.00

40-1

4730017E000JW
ref: 40-1

COVER ASSY,FRAME CTR

€ 48.00

40-2

4730017E001UJ
ref: 40-2

COVER ASSY,FRAME CTR

€ 44.00

41

0913905021
ref: 41

SCREW(5X12)

€ 2.00

42

0314114123
ref: 42
03141-1412B

SCREW

€ 2.00

43

0914804024
ref: 43

NUT

€ 2.00

44

0354104103
ref: 44
03541-0410A

SCREW

€ 1.50

45

4741117E00
ref: 45

COVER,FRAME RR

€ 24.50

46

0913905021
ref: 46

SCREW(5X12)

€ 2.00

47

0914805023
ref: 47
09148-05021

NUT

€ 1.50
