BATTERY

GSXR750Z 2014 (L4) USA (E03)

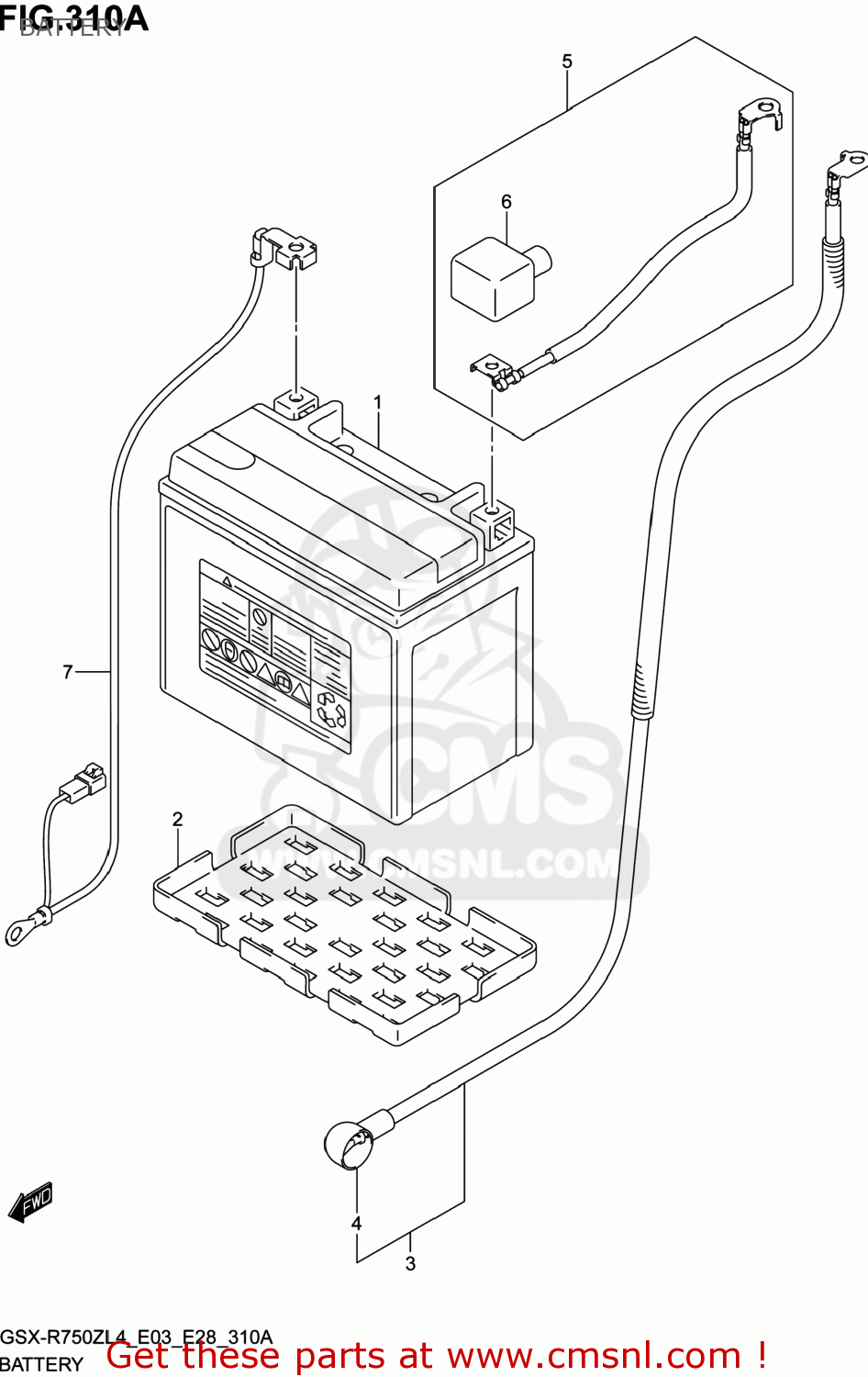

Battery diagram GSXR750Z 2014 (L4) USA (E03)

BATTERY GSXR750Z 2014 (L4) USA (E03)

BATTERY GSXR750Z 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361014G11
ref: 1

BATTERY ASSY(FT12A-BS,12V10AH)

€ 111.00

1

3361014G11
ref: 1

BATTERY ASSY(FT12A-BS,12V10AH)

€ 111.00

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

3381014J00
ref: 3

WIRE,STARTER MOTOR LEAD

€ 24.50

4

3362418H10
ref: 4

CAP,STARTER MOTOR

€ 4.50

5

3382014J00
ref: 5

WIRE,BATTERY PLUS LEAD

€ 15.00

6

3362416G00
ref: 6

CAP,BATTERY PLUS

€ 4.50

7

3386014J00
ref: 7

WIRE,BATTERY MINUS LEAD

€ 19.50
