REAR COMBINATION LAMP
GSXR750Z 2014 (L4) USA (E03)

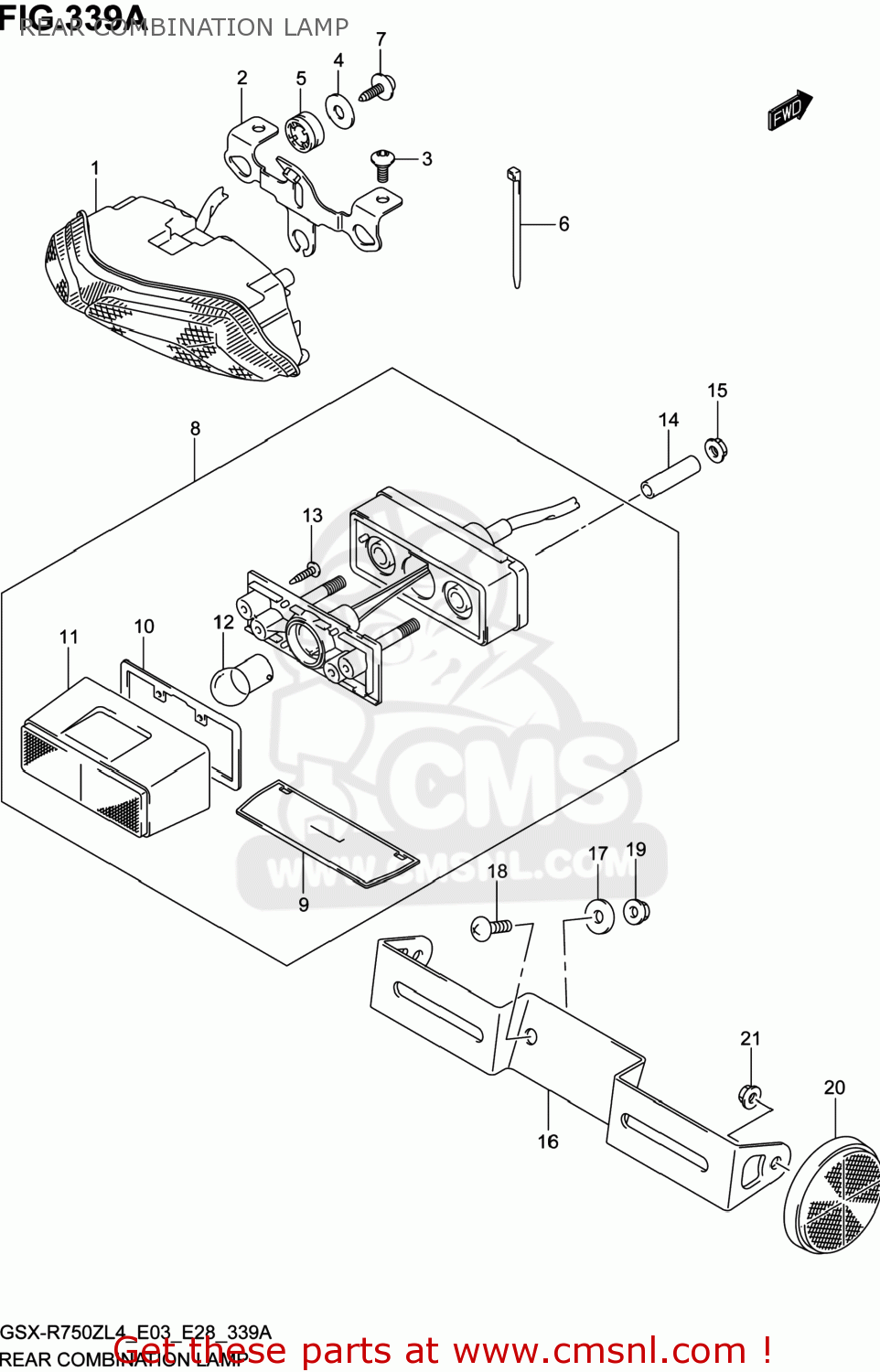

Rear combination lamp diagram GSXR750Z 2014 (L4) USA (E03)
REAR COMBINATION LAMP GSXR750Z 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571014JA0
ref: 1
LAMP ASSY,RR COMBINATION
€ 145.50
2
3572614J00
ref: 2
BRACKET,RR COMBINATION LAMP
€ 7.50
3
0913905074
ref: 3
BOLT(5X13)
€ 3.00
4
0916005501
ref: 4
WASHER(5.5X20X1.2)
€ 2.00
5
0932010049
ref: 5
CUSHION
€ 2.00
6
0940710404
ref: 6
CLAMP(L:100)
€ 4.00
7
035410516A
ref: 7
SCREW
€ 1.50
8
3591041G31
ref: 8
LAMP ASSY,LICENSE
€ 62.50
9
3591241G01
ref: 9
LENS,LICENSE LAMP
€ 19.50
10
3591341G00
ref: 10
GASKET (NAS)
€ 19.00
11
3591741G00
ref: 11
COVER,LICENSE LAMP
€ 27.00
12
0947112140
ref: 12
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
13
032110416A
ref: 13
SCREW
€ 1.50
14
0918006356
ref: 14
SPACER(6.5X9X34)
€ 3.00
15
0915906096
ref: 15
NUT
€ 2.00
16
3592714J30
ref: 16
BRACKET,LICENSE PLATE
€ 9.00
17
0916006077
ref: 17
WASHER(6.5X20X1.2)
€ 2.00
18
021420616A
ref: 18
SCREW
€ 2.50
19
083161006A
ref: 19
NUT
€ 2.50
20
3597014A20
ref: 20
REFLECTOR ASSY,RR SIDE
€ 11.00
21
083161005A
ref: 21
NUT
€ 2.50
