SEAT

GSXR750Z 2014 (L4) USA (E03)

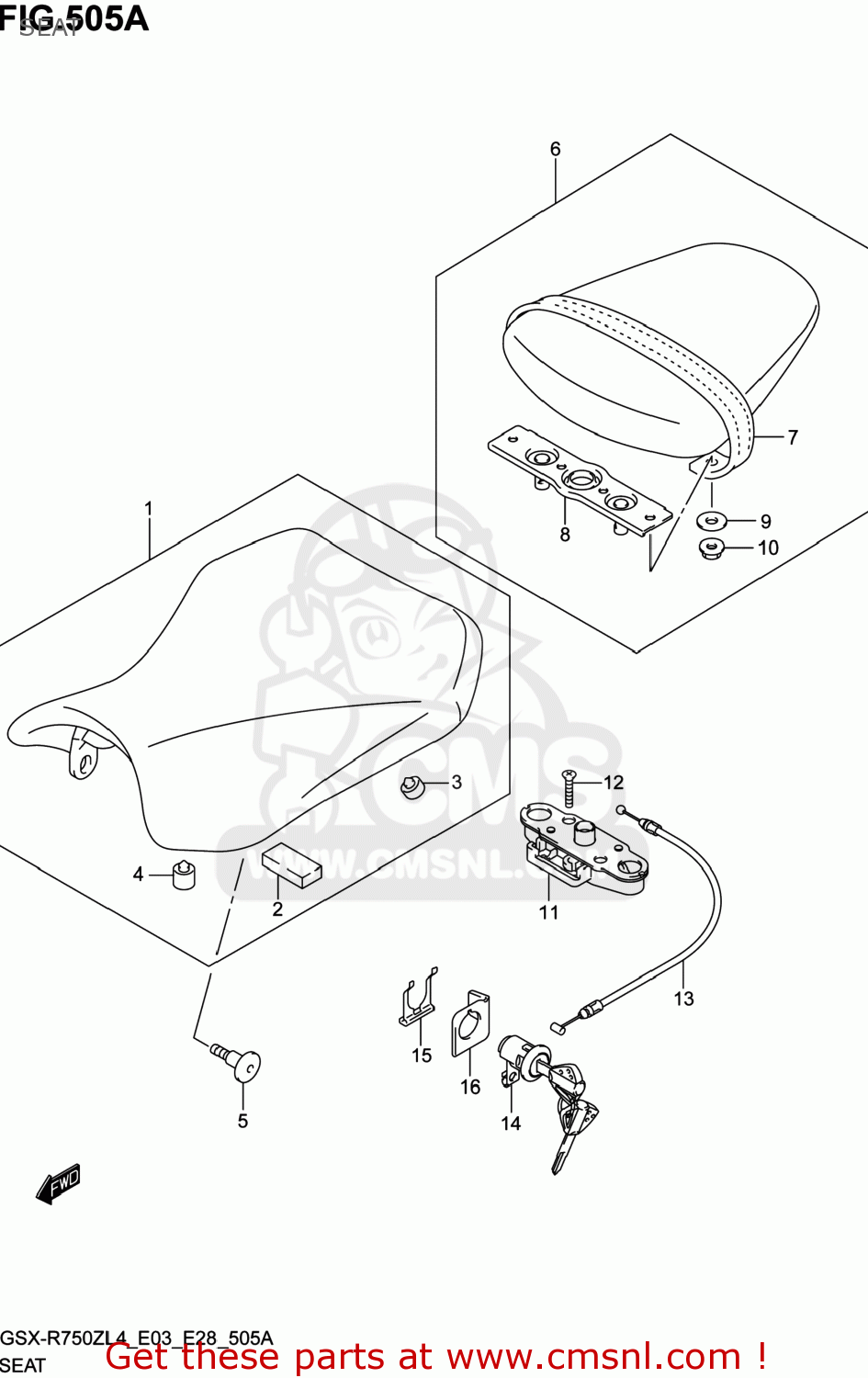

Seat diagram GSXR750Z 2014 (L4) USA (E03)

SEAT GSXR750Z 2014 (L4) USA (E03)

SEAT GSXR750Z 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510014J10AV7
ref: 1

SEAT ASSY

€ 159.00

2

4514937H00
ref: 2

CUSHION

€ 3.00

3

0932110011
ref: 3

CUSHION

€ 3.00

4

0932110034
ref: 4

CUSHION

€ 6.50

5

0913906193
ref: 5

SCREW(6X20)

€ 3.00

6

4530014J10P3H
ref: 6

SEAT ASSY,PILLION

€ 115.00

7

4518014J10P3H
ref: 7

BAND ASSY,SEAT

€ 18.50

8

4529047H01
ref: 8

STRIKER

€ 16.00

9

0916006088
ref: 9

WASHER(6.5X20X1.6)

€ 2.00

10

083161006A
ref: 10

NUT

€ 2.50

11

4522047H00
ref: 11

BRACKET,SEAT SUPPORT

€ 79.50

12

021220630A
ref: 12

SCREW

€ 1.50

13

4528014J00
ref: 13

CABLE,SEAT LOCK

€ 10.50

14

9570014810
ref: 14

LOCK SET,SEAT

€ 75.50

15

4528911F00
ref: 15

PLATE,SEAT LOCK ASSY

€ 3.00

16

4528814F00
ref: 16

GUIDE,SEAT LOCK CABLE

€ 3.00
