FRONT MASTER CYLINDER
GSXR750Z 2014 (L4) USA (E03)

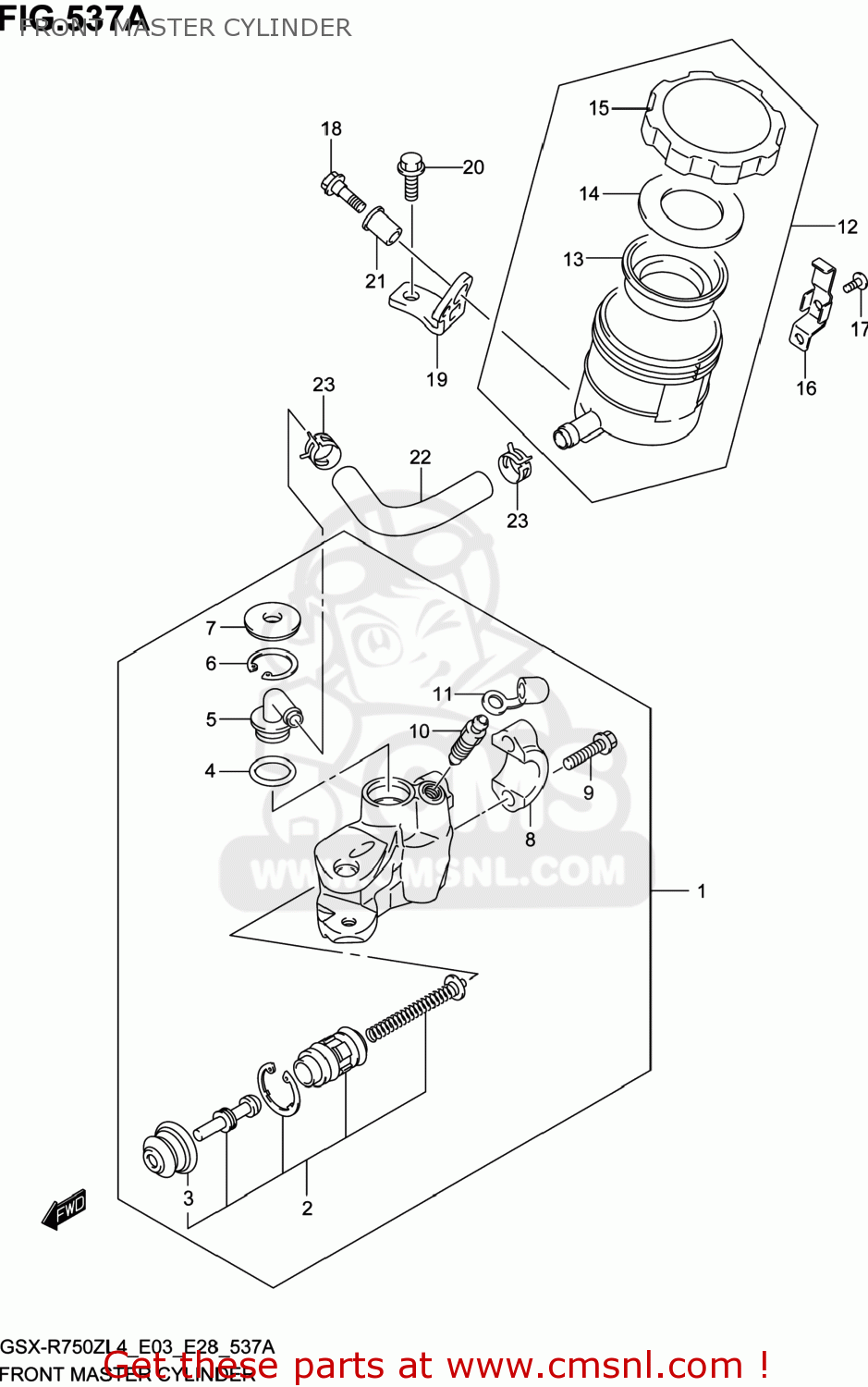

Front master cylinder diagram GSXR750Z 2014 (L4) USA (E03)
FRONT MASTER CYLINDER GSXR750Z 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960047H00
ref: 1
CYLINDER ASSY,FRONT MASTER
€ 169.00
2
5960001810
ref: 2
PISTON & CUP S
€ 45.00
3
5966629G00
ref: 3
BOOT
€ 8.00
4
6968634200
ref: 4
O RING
€ 3.50
5
5967217C00
ref: 5
CONNECTOR
€ 8.00
6
6967400B20
ref: 6
CIRCLIP
€ 3.00
7
5967317C00
ref: 7
COVER,DUST
€ 7.00
8
5967101H00
ref: 8
HOLDER
€ 12.00
9
5967502FA0
ref: 9
BOLT(6X22)
€ 3.00
10
5912101A00
ref: 10
BLEEDER
€ 8.50
11
5912246H00
ref: 11
CAP,BLEEDER
€ 4.50
12
5974047H00
ref: 12
TANK ASSY,RESERVOIR
€ 35.00
13
5966718441
ref: 13
DIAPHRAGM
€ 8.50
14
5966818441
ref: 14
PLATE,DIAPHRAGM
€ 3.50
15
5966907D00
ref: 15
CAP
€ 16.50
16
5974317C00
ref: 16
PLATE,RESERVOIR TANK CAP
€ 8.00
17
021420410A
ref: 17
SCREW
€ 1.50
18
0911105006
ref: 18
BOLT(5X17)
€ 3.00
19
5975147H10
ref: 19
BRACKET,FR RESERVOIR TANK
€ 8.50
20
015470612A
ref: 20
BOLT
€ 2.00
21
0915905048
ref: 21
NUT
€ 6.50
22
5973147H00
ref: 22
HOSE,FRONT RESERVOIR TANK
€ 11.00
23
5973517C00
ref: 23
CLAMP,RESERVOIR TANK FR
€ 4.00
