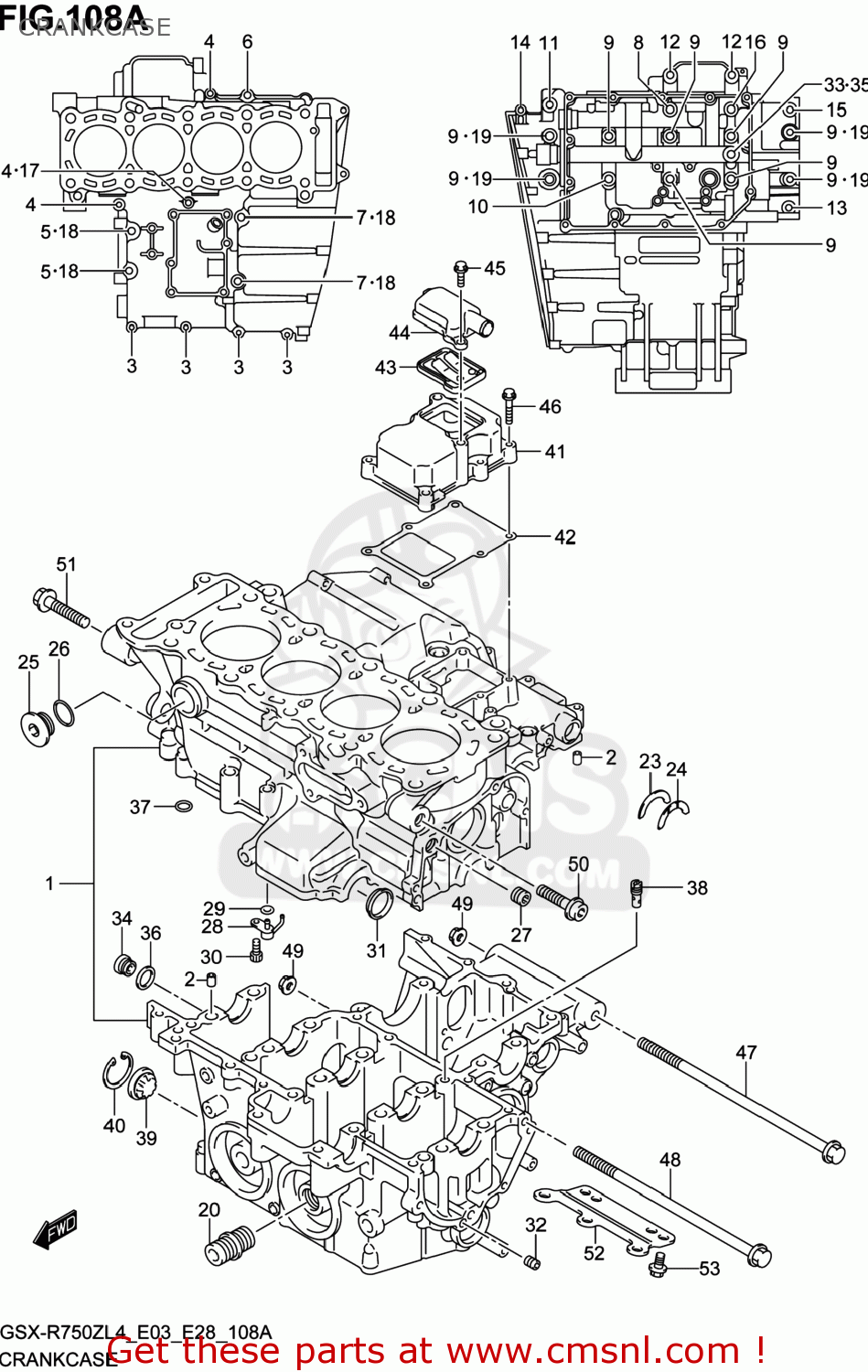

CRANKCASE

ref

part #

description

quantity

1

1130115830
ref: 1

CRANKCASE SET

€ 3,726.50

2

1131933E50
ref: 2

PIN,CRANKCASE

€ 4.00

3

015470635A
ref: 3

BOLT

€ 3.00

4

015470665A
ref: 4

BOLT

€ 2.50

5

015500850A
ref: 5

BOLT

€ 2.50

6

015500860A
ref: 6

BOLT

€ 3.00

7

015500875A
ref: 7

BOLT

€ 3.00

8

0910308097
ref: 8

BOLT(8X105)

€ 3.00

9

0910309012
ref: 9

BOLT(9X95)

€ 7.00

10

0910309014
ref: 10

BOLT(9X80)

€ 6.50

11

015500855A
ref: 11

BOLT

€ 2.00

12

0910308339
ref: 12

BOLT(8X55)

€ 3.50

13

015470630A
ref: 13

BOLT

€ 2.50

14

015470645A
ref: 14

BOLT

€ 2.50

15

015500865A
ref: 15

BOLT

€ 3.00

16

015500885A
ref: 16

BOLT

€ 3.00

17

0916806023
ref: 17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

18

0916808016
ref: 18

GASKET(8.2X14X1) (NAS)

€ 1.00

19

0916810031
ref: 19

GASKET(10.2X20X2).3 (NAS)

€ 2.00

20

1659106B01
ref: 20

UNION,OIL STAND

€ 6.00

21

0928000043
ref: 21

O RING(D:1.9,ID:99.5)

€ 17.50

21

0928000043
ref: 21

O RING(D:1.9,ID:99.5)

€ 17.50

22

0913906151
ref: 22

BOLT(6X20)

€ 2.50

22

0913906151
ref: 22

BOLT(6X20)

€ 2.50

23

1222817E000D0
ref: 23

BEARING,CRANK THRUST(GREEN)

€ 8.00

24-1

1222817E000A0
ref: 24-1

BEARING,CRANK THRUST(RED)

€ 7.50

24-2

1222817E000B0
ref: 24-2

BEARING,CRANK THRUST(BLACK)

€ 7.50

24-3

1222817E000C0
ref: 24-3

BEARING,CRANK THRUST(BLUE)

€ 7.50

24-4

1222817E000D0
ref: 24-4

BEARING,CRANK THRUST(GREEN)

€ 8.00

24-5

1222817E000E0
ref: 24-5

BEARING,CRANK THRUST(YELLOW)

€ 7.50

24-6

1222817E000F0
ref: 24-6

BEARING,CRANK THRUST(WHITE)

€ 7.50

25

1131835F00
ref: 25

PLUG,WATER JACKET

€ 10.50

26

0928020002
ref: 26

O RING(D:3.1,ID:19.4)

€ 2.00

27

1132902F00
ref: 27

JET,OIL GALLERY(3.6)

€ 4.50

28

1139035F00
ref: 28

JET,PISTON COOLING

€ 19.00

29

0928004004
ref: 29

O RING(D:1.2,ID:4)

€ 2.00

30

0910606075
ref: 30

BOLT(6X12)

€ 2.50

31

0924126004
ref: 31

PLUG

€ 8.00

32

0924605006
ref: 32

PLUG(1/8PT,H:5.5)

€ 3.50

33

0924812004
ref: 33

PLUG(L:12)

€ 5.50

34

0924816013
ref: 34

PLUG

€ 4.50

35

0916812002
ref: 35

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

36

0916816002
ref: 36

GASKET(16X22X2) (NAS)

€ 2.00

37

0928008012
ref: 37

O RING(D:1.9,ID:7.8)

€ 4.00

38

0949328012
ref: 38

JET(140)

€ 8.00

39

1197133210
ref: 39

LENS,OIL LEVEL CHECK

€ 13.50

40

083314130A
ref: 40

CIRCLIP

€ 2.00

41

1137101H00
ref: 41

COVER,BREATHER

€ 59.50

42

1148401H00
ref: 42

GASKET,BREATHER COVER (NAS)

€ 4.50

43

1315001H01
ref: 43

VALVE ASSY,BREATHER REED

€ 48.50

44

1137201H00
ref: 44

COVER,BREATHER REED VALVE

€ 35.00

45

015470616A
ref: 45

BOLT

€ 2.00

46

015470630A
ref: 46

BOLT

€ 2.50

47

0910310041A05
ref: 47

BOLT(10X215)

€ 9.00

48

0910310145
ref: 48

BOLT(10X205)

€ 13.00

49

0915910115
ref: 49

NUT

€ 4.00

50

0910610069
ref: 50

BOLT(10X45)

€ 4.50

51

0910610070
ref: 51

BOLT(10X55)

€ 4.50

52

1132201H00
ref: 52

PLATE,CRANKCASE LWR

€ 8.00

53

0910306188
ref: 53

BOLT(6X10)

€ 2.00
