STARTER CLUTCH
GSXR750Z 2014 (L4) USA (E03)

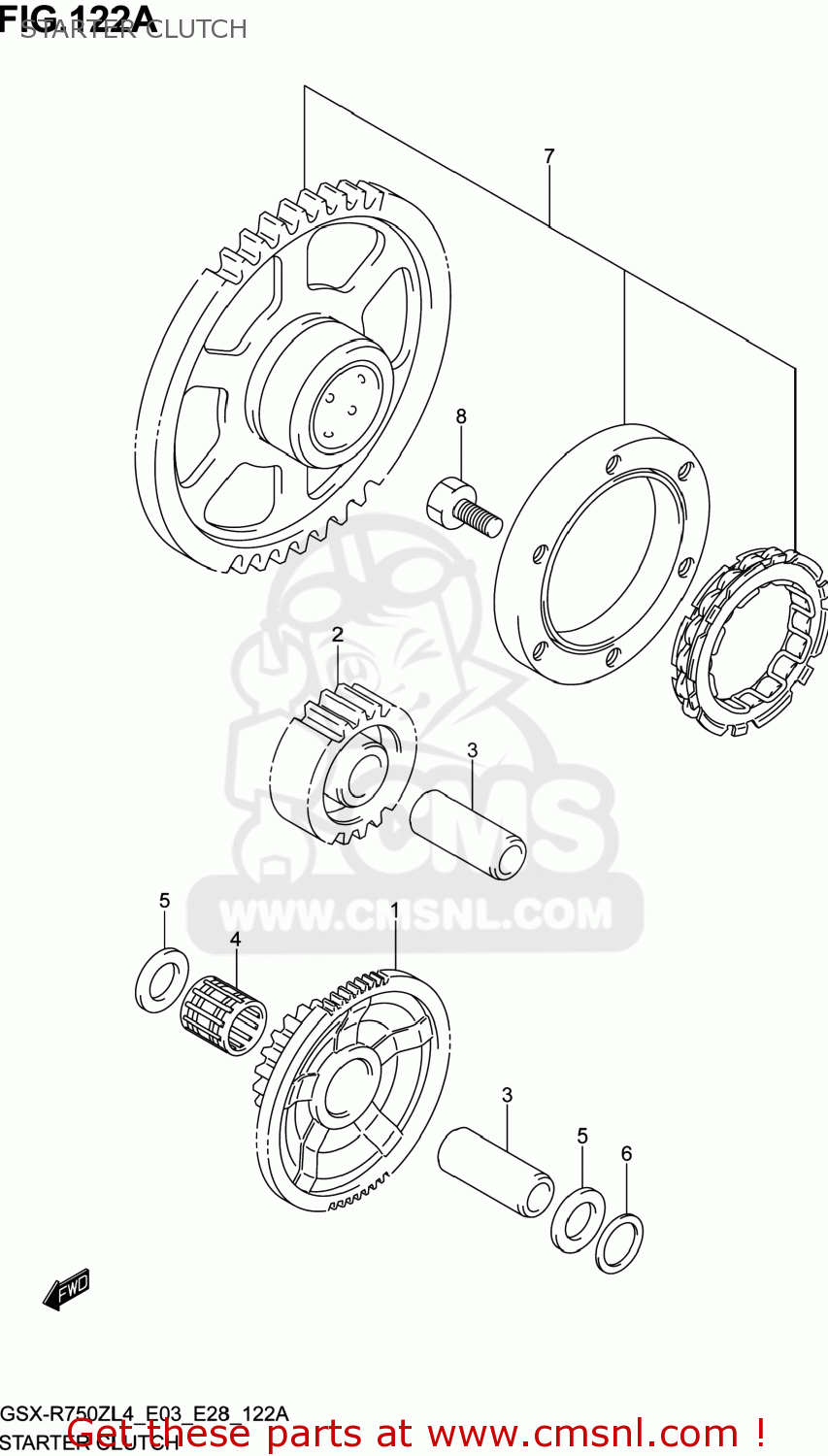

Starter clutch diagram GSXR750Z 2014 (L4) USA (E03)
STARTER CLUTCH GSXR750Z 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261101H00
ref: 1
GEAR,STARTER IDLE NO.1
€ 76.00
1
1261101H00
ref: 1
GEAR,STARTER IDLE NO.1
€ 76.00
2
1261201H00
ref: 2
GEAR,STARTER IDLE NO.2
€ 45.50
2
1261201H00
ref: 2
GEAR,STARTER IDLE NO.2
€ 45.50
3
0920612007
ref: 3
PIN(8X12X33)
€ 6.00
4
0926312023
ref: 4
BEARING(12X16X16)
€ 9.00
5
0918112167
ref: 5
SHIM(12X20X1)
€ 2.50
6
0916412021
ref: 6
WASHER
€ 2.00
7
1260001810
ref: 7
CLUTCH SET,STARTER
€ 227.00
8
0910006171
ref: 8
BOLT(6X13)
€ 3.00
