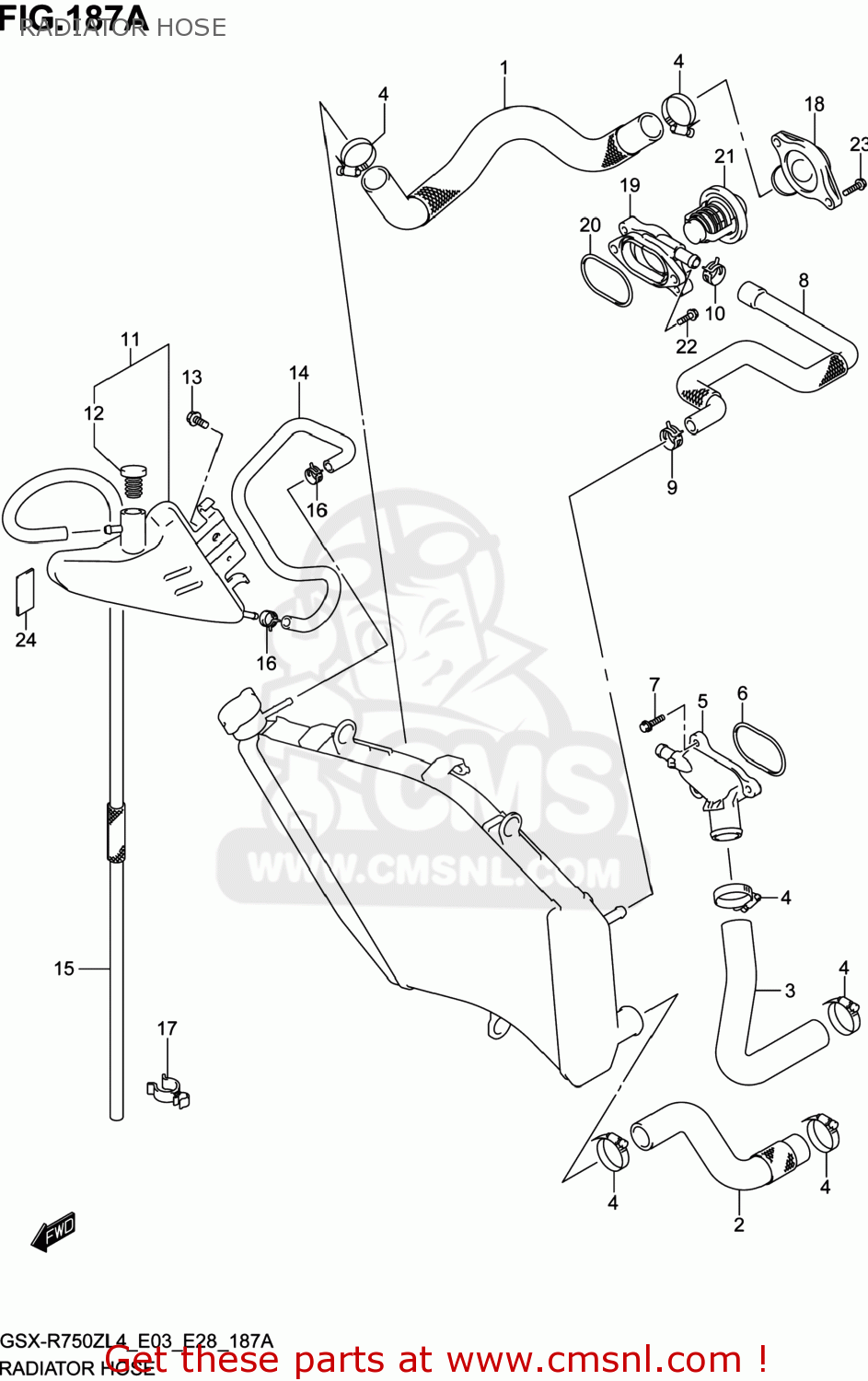

RADIATOR HOSE

ref

part #

description

quantity

1

1785114J00
ref: 1

HOSE,RADIATOR INLET

€ 34.50

2

1785214J00
ref: 2

HOSE,RADIATOR OUTLET

€ 30.00

3

1785314J00
ref: 3

HOSE,CYLINDER INLET

€ 23.50

4

0940235501
ref: 4

CLAMP

€ 7.00

5

1786101H00
ref: 5

CONNECTOR,CYLINDER WATER INLET

€ 42.50

6

1786301H00
ref: 6

O RING,CYL WATER CONNECTOR

€ 5.50

7

015470620A
ref: 7

BOLT

€ 2.50

8

1785414J00
ref: 8

HOSE,WATER BYPASS

€ 24.00

9

0940112409
ref: 9

CLAMP

€ 3.00

10

0940114403
ref: 10

CLIP

€ 3.00

11

1791014J00
ref: 11

TANK ASSY,RESERVOIR

€ 49.00

12

1793102FA0
ref: 12

CAP,RESERVOIR TANK

€ 4.50

13

0911106085
ref: 13

BOLT(6X12)

€ 4.50

14

1798118G00
ref: 14

HOSE,RESERVOIR TANK INLET

€ 9.00

15

1798237H00
ref: 15

HOSE,RESERVOIR TANK OVFL

€ 11.00

16

0940108411
ref: 16

CLIP

€ 3.00

17

0940406429
ref: 17

CLAMP(L:45)

€ 2.50

18

1766137H00
ref: 18

COVER,THERMOSTAT

€ 23.00

19

1766201H00
ref: 19

CONNECTOR,THERMOSTAT

€ 58.50

20

1766301H00
ref: 20

O RING,THERMOSTAT CONNECTOR

€ 6.00

21

1767076G00
ref: 21

THERMOSTAT,WATER 82 DEG

€ 23.50

22

015470620A
ref: 22

BOLT

€ 2.50

23

015500625A
ref: 23

BOLT

€ 2.50

24

4631231D11
ref: 24

CUSHION,FR

€ 3.50
