HANDLEBAR
GSXR750Z 2014 (L4) USA (E03)

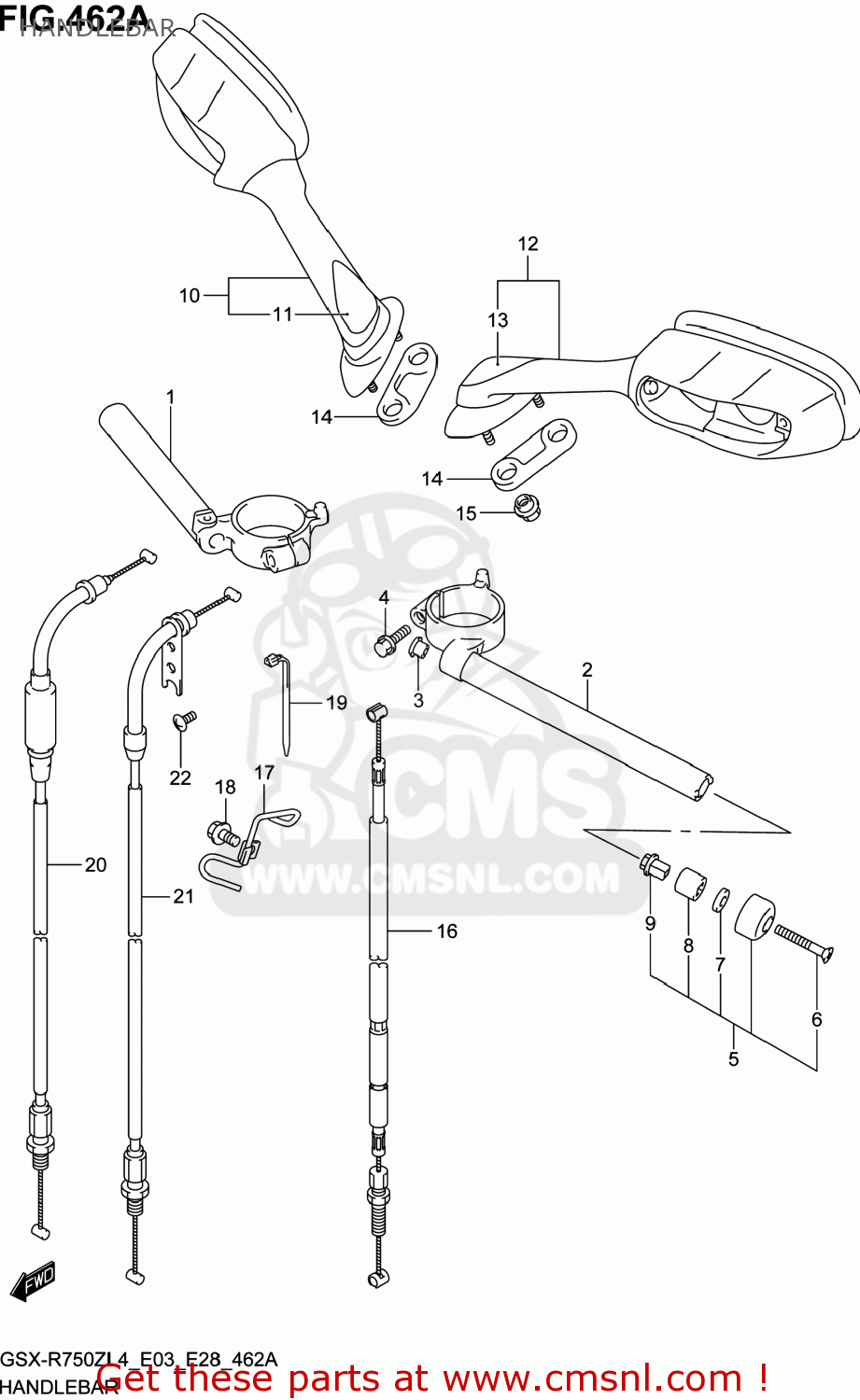

Handlebar diagram GSXR750Z 2014 (L4) USA (E03)
HANDLEBAR GSXR750Z 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611114J00
ref: 1
HANDLEBAR,R
€ 69.50
2
5615114J00
ref: 2
HANDLEBAR,L
€ 70.00
3
5613129G00
ref: 3
CAP,HANDLEBAR
€ 2.50
4
0910608185
ref: 4
BOLT(8X32)
€ 2.00
5
5620041822
ref: 5
BALANCER SET,HANDLEBAR
€ 27.50
6
021220640B
ref: 6
SCREW
€ 2.50
7
0916006131
ref: 7
WASHER(6.5X16X4)
€ 2.50
8
5627210G00
ref: 8
EXPANDER,HANDLE BALANCER
€ 3.00
9
5627310G10
ref: 9
NUT,HANDLE BALANCER
€ 6.50
10
5650047H01
ref: 10
MIRROR ASSY,RR VIEW,R
€ 91.00
11
5651547H01
ref: 11
CAP,R
€ 6.50
12
5660047H01
ref: 12
MIRROR ASSY,RR VIEW,L
€ 91.00
13
5661547H01
ref: 13
CAP,L
€ 6.50
14
9457514J00
ref: 14
CUSHION,RR VIEW MIRRROR,R
€ 4.00
15
5661941G01
ref: 15
NUT,RR VIEW MIRROR
€ 7.00
16
5820014J00
ref: 16
CABLE ASSY,CLUTCH
€ 23.50
17
5862014J00
ref: 17
GUIDE,CABLE
€ 10.50
18
015470612A
ref: 18
BOLT
€ 2.00
19
0940717403
ref: 19
CLAMP(L:154)
€ 5.50
20
5830014J00
ref: 20
CABLE ASSY,THROTTLE NO.1
€ 45.00
21
5830014J10
ref: 21
CABLE ASSY,THROTTLE NO.2
€ 41.50
22
0912505042
ref: 22
SCREW(5X10)
€ 2.50
