HEADLAMP
GSXR750Z 2014 (L4) USA (E03)

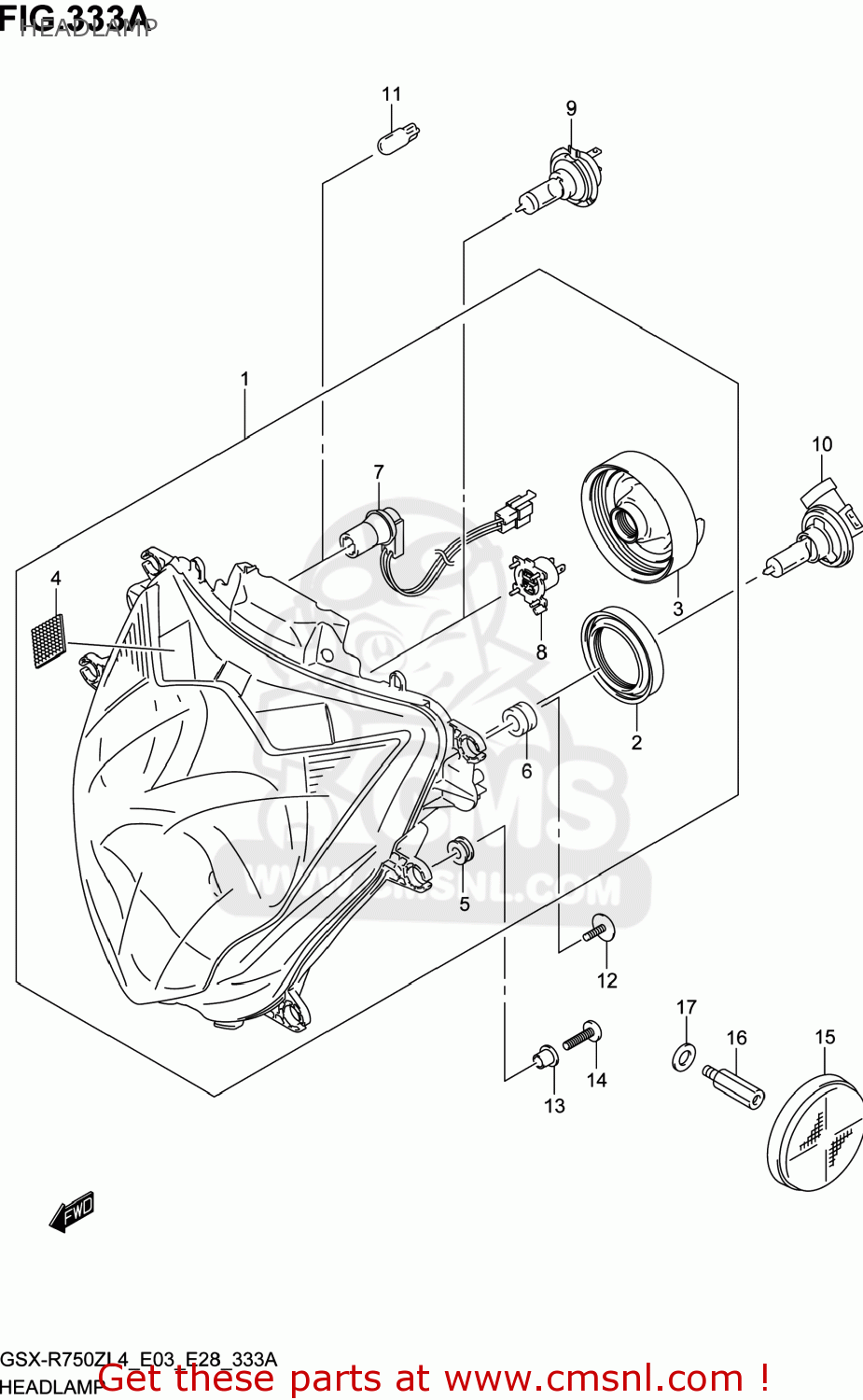

Headlamp diagram GSXR750Z 2014 (L4) USA (E03)
HEADLAMP GSXR750Z 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510014J31999
ref: 1
HEADLAMP ASSY
€ 358.50
2
3517901H00
ref: 2
COVER,SOCKET
€ 16.00
3
3517958J00
ref: 3
COVER,SOCKET
€ 8.50
4
4457202F01
ref: 4
FASTENER
€ 8.50
5
0932007014
ref: 5
CUSHION
€ 3.50
6
0932009039
ref: 6
CUSHION
€ 6.00
7
3611829G51
ref: 7
CORD ASSY
€ 15.00
8
3717514J00
ref: 8
ADAPTER ASSY
€ 16.00
9
0947112222
ref: 9
BULB(12V65W,H9)
€ 35.50
10
0947112188
ref: 10
BULB(12V55W/H7/PX26D/PHILIPS)
€ 12.50
11
0947112216
ref: 11
BULB(12V5W)
€ 5.00
12
0913605062
ref: 12
SCREW(5X15)
€ 2.50
13
0916905018
ref: 13
WASHER
€ 2.50
14
021420520B
ref: 14
SCREW
€ 2.00
15
3595014A11
ref: 15
REFLEX REFLECTOR ASSY,FR SIDE
€ 11.00
16
0911906109
ref: 16
BOLT
€ 8.00
17
0916008043
ref: 17
WASHER(8.5X18X1)
€ 1.50
