CYLINDER

GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

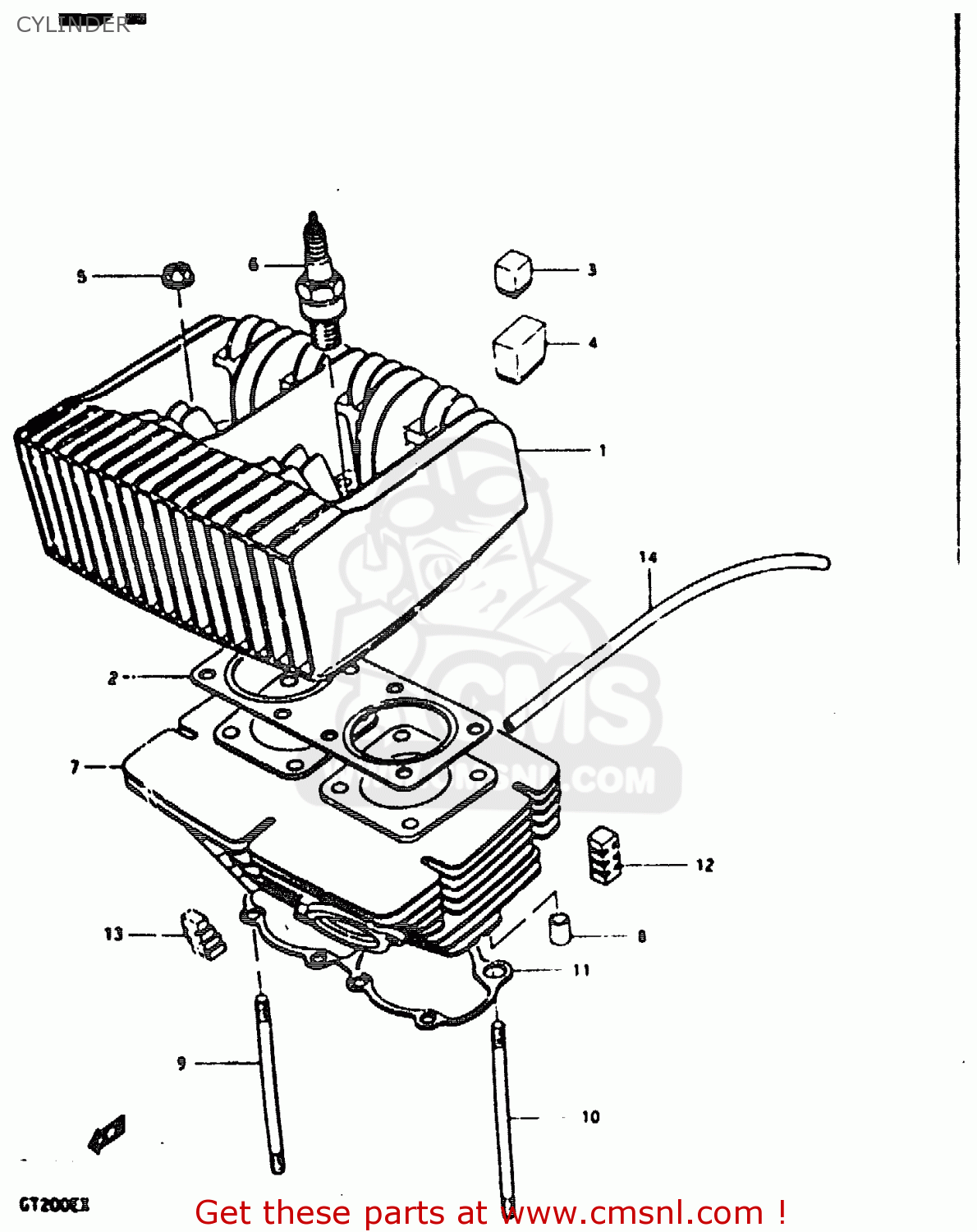

Cylinder diagram GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1111110300
ref: 1

CYLINDER HEAD

€ 0.00

1114110300
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 12.00

1115245000
ref: 3

PAD

€ 3.50

1125129300
ref: 4

PAD,CYLINDER

€ 6.00

0831616088
ref: 5

NUT

€ 2.50

6-1

0948200091
ref: 6-1

PLUG,SPARK

€ 3.00

6-2

0948200196
ref: 6-2

SPARK PLUG W24ES-U

€ 3.50

6-3

NOTUSED
ref: 6-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6-4

NOTUSED
ref: 6-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1121010301
ref: 7

CYLINDER

€ 0.00

0920613001
ref: 8

PIN

€ 2.50

0910808056
ref: 9

BOLT,STUD

€ 4.50

0910808057
ref: 10

BOLT,STUD

€ 5.50

1124110200
ref: 11

GASKET, CYLINDER (MCA)

€ 7.50

1125110200
ref: 12

PAD,CYLINDER

€ 7.00

1125110300
ref: 13

RUBBER PAD, CYLINDER FRONT

€ 6.00

0934305129
ref: 14

HOSE

€ 13.00
