HEADLAMP HOUSING - FRONT FENDER

GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

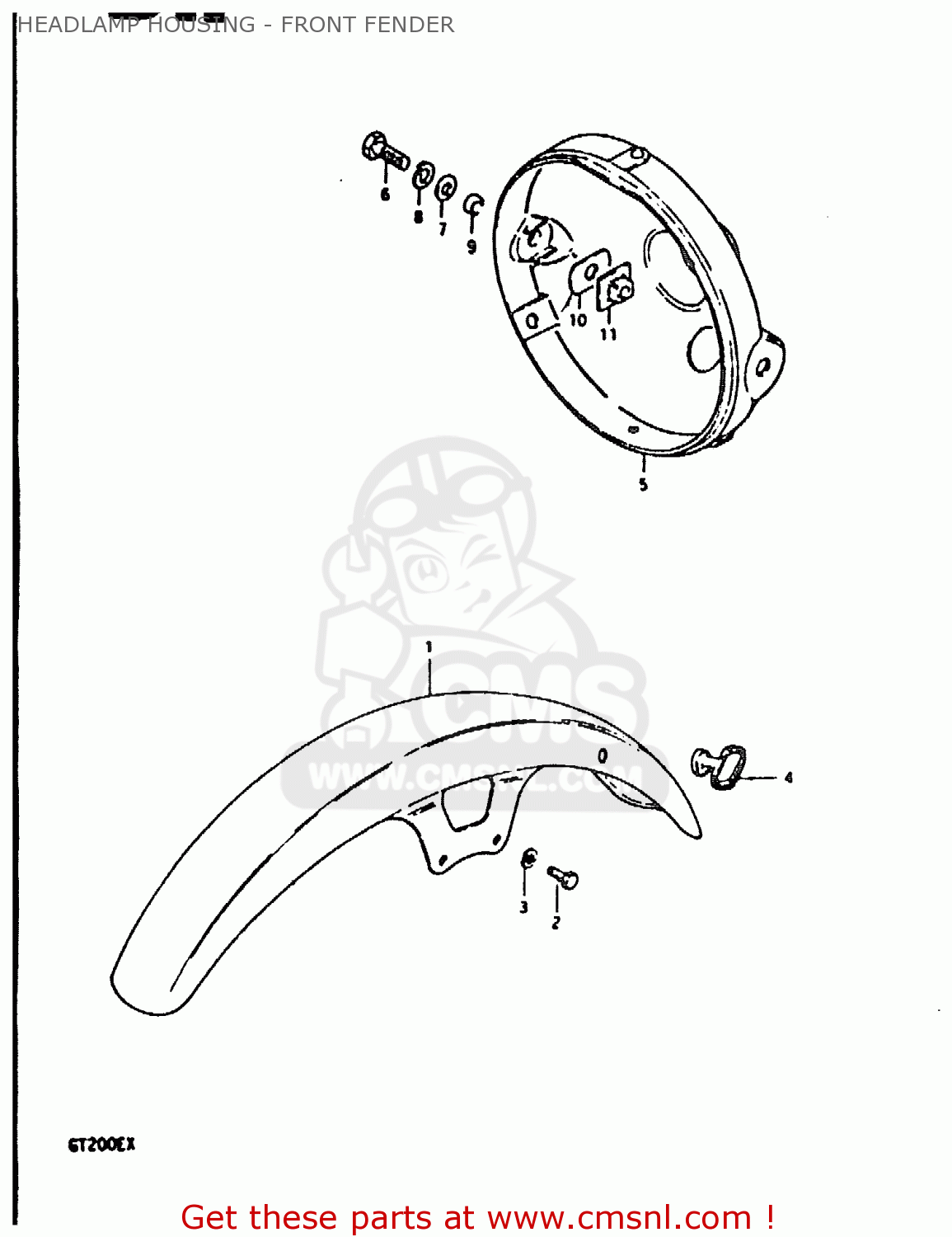

Headlamp housing - front fender diagram GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

HEADLAMP HOUSING - FRONT FENDER GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

HEADLAMP HOUSING - FRONT FENDER GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

5311010310
ref: 1

FENDER,FR

€ 125.00

2

0110708168
ref: 2

BOLT

€ 2.00

3

0832121088
ref: 3

LOCK WASHER

€ 2.00

4

5862121203A
ref: 4

GUIDE,CABLE

€ 7.50

5

5181144000291
ref: 5

HOUSING,HEADLAMP(BLACK)

€ 63.00

6

0120408257
ref: 6

BOLT

€ 2.00

7

0832211088
ref: 7

WASHER

€ 2.00

8

0832121088
ref: 8

LOCK WASHER

€ 2.00

9

0918008030
ref: 9

SPACER (8.8X12X7)

€ 3.50

10

0932912002
ref: 10

CUSHION

€ 3.00

11

5186045000
ref: 11

PLATE,HEADLAMP HOUSING

€ 2.00
