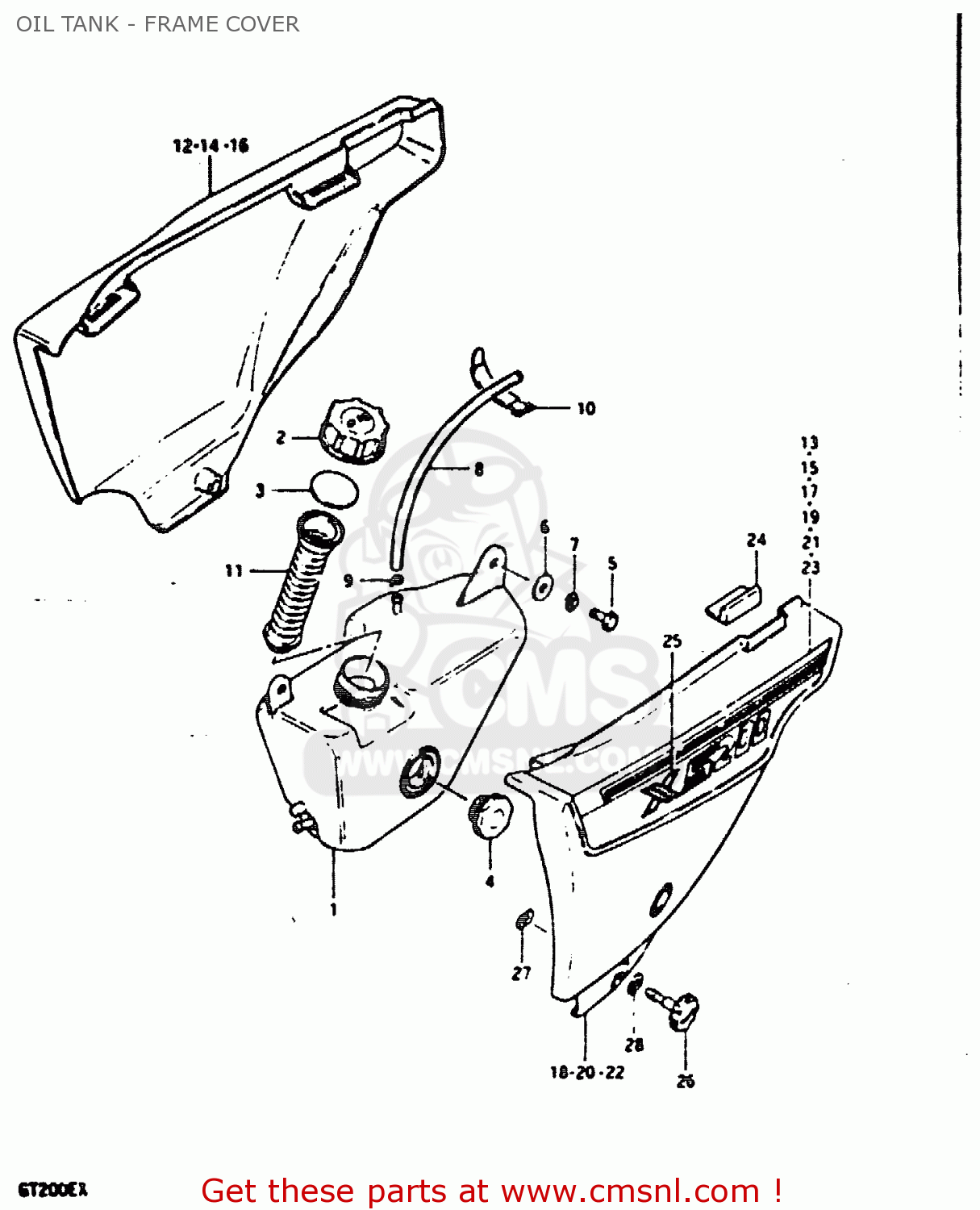

OIL TANK - FRAME COVER - GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

ref

part #

description

quantity

1

4461110200
ref: 1

TANK, OIL

€ 34.50

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4466127000
ref: 3

GASKET,OIL TANK CAP (NAS)

€ 27.50

4

4460031831
ref: 4

LENS SET,OIL LEVEL

€ 18.00

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0916006007
ref: 6

WASHER

€ 2.00

7

0832121068
ref: 7

LOCK WASHER

€ 2.50

8

0934405023
ref: 8

HOSE

€ 10.00

9

0940108402
ref: 9

CLIP

€ 1.50

10

0940711301
ref: 10

CLAMP L:110

€ 6.00

11

4466810200
ref: 11

EXTENTION, OIL TANK INLET

€ 0.00

12

471111031010V
ref: 12

COVER, FRAME RH (WHITE)

€ 35.00

13

681361031070K
ref: 13

TAPE, RH

€ 0.00

14

471111031005K
ref: 14

COVER, FRAME RH (BLUE)

€ 35.00

15

681361031070K
ref: 15

TAPE, RH

€ 0.00

16

471111031007P
ref: 16

COVER, FRAME RH (RED)

€ 35.00

17

681361031069R
ref: 17

TAPE, RH

€ 0.00

18

472111031010V
ref: 18

COVER, FRAME LH (WHITE)

€ 0.00

19

681461031070K
ref: 19

TAPE, LH

€ 0.00

20

472111031005K
ref: 20

COVER, FRAME LH (BLUE)

€ 0.00

21

681461031070K
ref: 21

TAPE, LH

€ 0.00

22

472111031007P
ref: 22

COVER, FRAME LH (RED)

€ 0.00

23

681461031069R
ref: 23

TAPE, LH

€ 0.00

24

4711745000
ref: 24

CUSHION,FRAME COVER

€ 1.50

25

6813110300
ref: 25

EMBLEM, RH

€ 15.50

26

4713010200
ref: 26

KNOB

€ 6.00

27

0214206125
ref: 27

SCREW 6X12

€ 2.00

28

0916106015
ref: 28

WASHER

€ 3.50

OIL TANK - FRAME COVER

all assemblies
