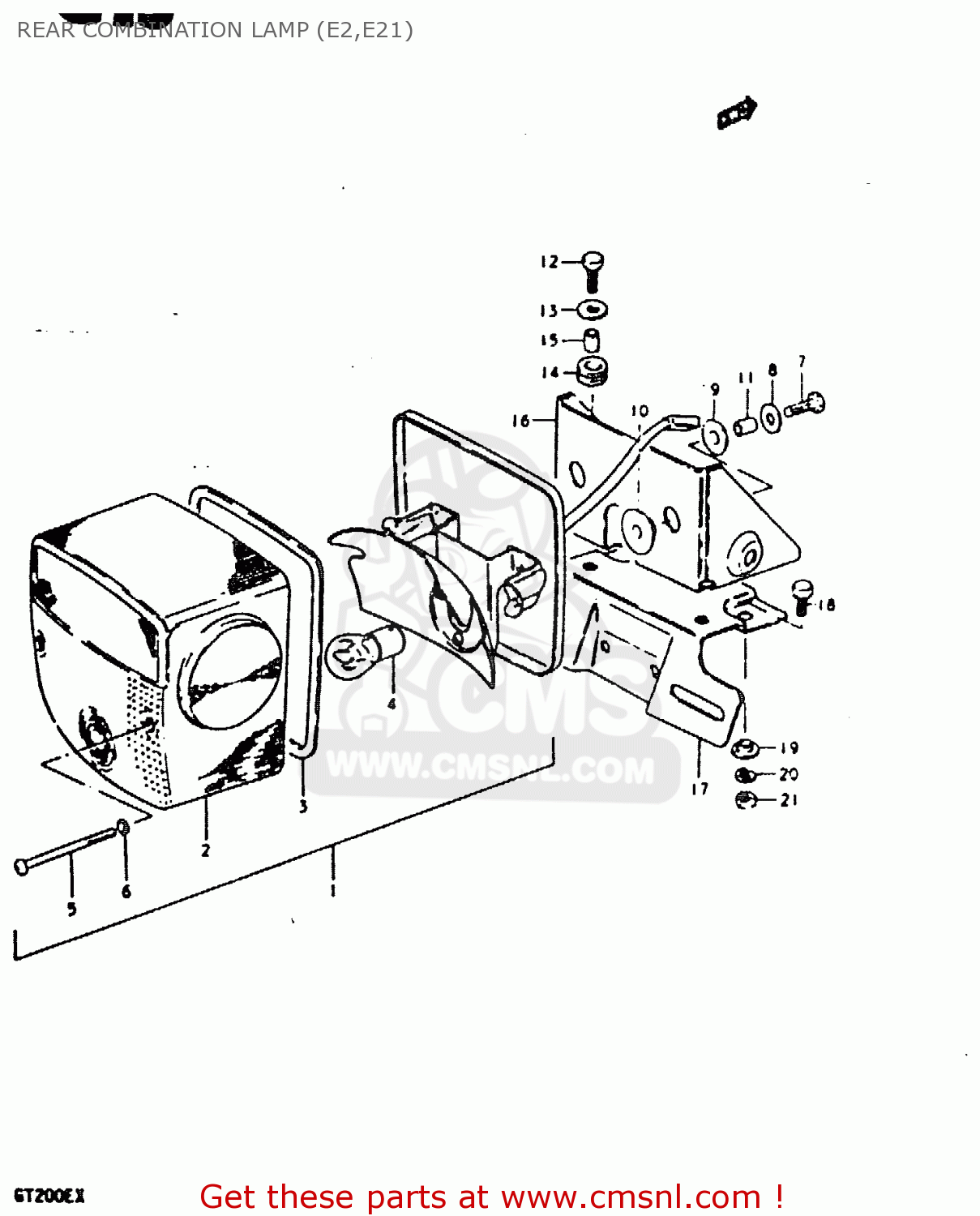

REAR COMBINATION LAMP (E2,E21)

GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

Rear combination lamp (e2,e21) diagram GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

3571011321
ref: 1

LAMP ASSY, REAR COMBINATION

€ 0.00

3571248622
ref: 2

LENS

€ 66.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0110706208
ref: 7

BOLT

€ 2.00

0916006027
ref: 8

WASHER (6.5X20X1.2)

€ 2.00

0932014010
ref: 9

CUSHION

€ 2.50

0932009012
ref: 10

CUSHION

€ 6.00

0918006006
ref: 11

SPACER (6.8X10X11.5)

€ 3.00

0110706168
ref: 12

BOLT, UPPER

€ 3.00

0916006027
ref: 13

WASHER (6.5X20X1.2)

€ 2.00

0932009009
ref: 14

CUSHION

€ 5.00

0918006011
ref: 15

SPACER (6.1X9X9)

€ 2.00

3572610300
ref: 16

BRACKET, COMBINATION LAMP

€ 0.00

3592710301
ref: 17

PLATE, LICENSE

€ 0.00

0110706128
ref: 18

BOLT

€ 2.00

0918006048
ref: 19

SPACER

€ 2.00

0832121068
ref: 20

LOCK WASHER

€ 2.50

0831011068
ref: 21

NUT

€ 2.50
