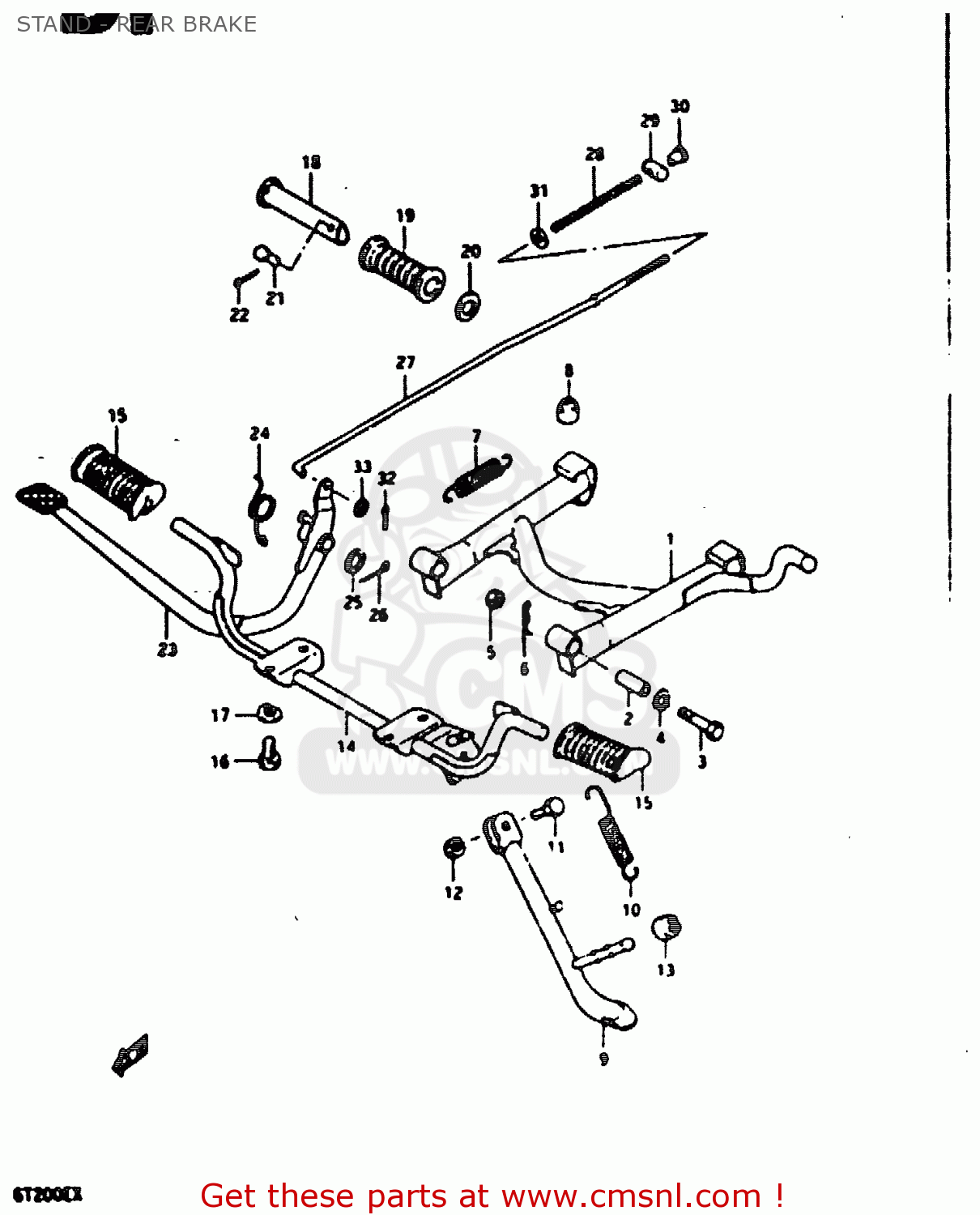

STAND - REAR BRAKE - GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

ref

part #

description

quantity

1

4210010200
ref: 1

STAND, CENTER

€ 0.00

2

0918010001
ref: 2

SPACER(10.5X16X30)

€ 3.50

3

0910110020
ref: 3

BOLT 10X52

€ 9.50

4

0832121108
ref: 4

LOCK WASHER

€ 2.00

5

0831011108
ref: 5

NUT

€ 2.50

6

0938510001
ref: 6

CLIP

€ 1.50

7

0944318005
ref: 7

SPRING

€ 4.00

8

0932110001
ref: 8

CUSHION

€ 2.50

9

4231010300
ref: 9

STAND, PROP

€ 0.00

10

0944319003
ref: 10

SPRING

€ 6.50

11

0910010007
ref: 11

BOLT

€ 4.50

12

0831022108
ref: 12

NUT

€ 2.50

13

0932007001
ref: 13

CUSHION

€ 4.00

14

4351010200
ref: 14

BAR, FRONT FOOTREST

€ 56.50

15

4355139100
ref: 15

RUBBER,FR FOOTREST

€ 7.50

16

0110708168
ref: 16

BOLT

€ 2.00

17

0832121088
ref: 17

LOCK WASHER

€ 2.00

18

4361003001
ref: 18

BAR,FOOTREST RUBBER

€ 5.50

19

4361203001
ref: 19

RUBBER,PILLION FOOTREST

€ 3.50

20

0916019006
ref: 20

WASHER (19.5X32X2)

€ 2.00

21

0920006010
ref: 21

PIN

€ 2.50

22

0411120208
ref: 22

PIN 20X20

€ 1.50

23

4311010200
ref: 23

PEDAL,BRAKE

€ 41.50

24

0944831011
ref: 24

SPRING

€ 3.50

25

0916015002
ref: 25

WASHER(15.5X26X2.3)

€ 2.00

26

0411130308
ref: 26

COTTER PIN

€ 1.50

27

4330010300
ref: 27

ROD ASSY, REAR BRAKE

€ 7.00

28

0944009004
ref: 28

SPRING

€ 2.00

29

0920913003
ref: 29

PIN

€ 3.50

30

0915006001
ref: 30

NUT

€ 3.50

31

0832221068
ref: 31

WASHER

€ 2.00

32

0411120208
ref: 32

PIN 20X20

€ 1.50

33

0832221058
ref: 33

WASHER

€ 2.50

STAND - REAR BRAKE

all assemblies
