FRAME

GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

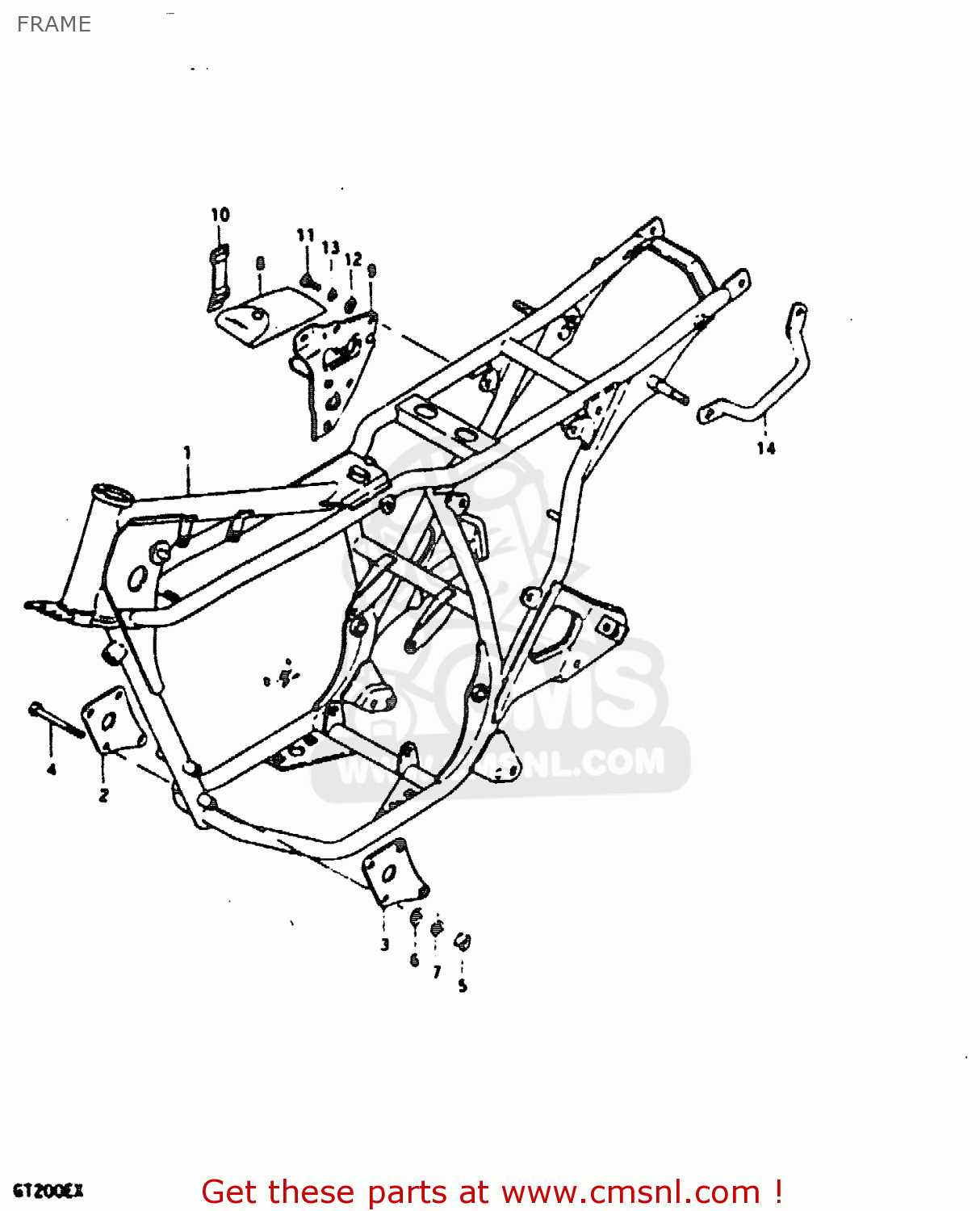

Frame diagram GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4110010300019
ref: 1-1

FRAME

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4191110200
ref: 2

PLATE, ENGINE MOUNTING RH

€ 0.00

4192010200
ref: 3

PLATE, ENGINE MOUNTING LH

€ 0.00

0110708758
ref: 4

BOLT,8X75

€ 3.00

0831022088
ref: 5

NUT 8MM

€ 2.00

0832211088
ref: 6

WASHER

€ 2.00

0832121088
ref: 7

LOCK WASHER

€ 2.00

0980000108
ref: 8
*

TOOL SET

€ 43.50

4155010200
ref: 9

HOLDER, TOOL

€ 0.00

0946200072
ref: 10

BAND

€ 3.50

0110706128
ref: 11

BOLT

€ 2.00

0916006019
ref: 12

WASHER(6.5X16X1.2)

€ 1.50

0832121068
ref: 13

LOCK WASHER

€ 2.50

4161110300
ref: 14

GRIP, FRAME HANDLE

€ 0.00
