HEADLAMP (E21)

GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

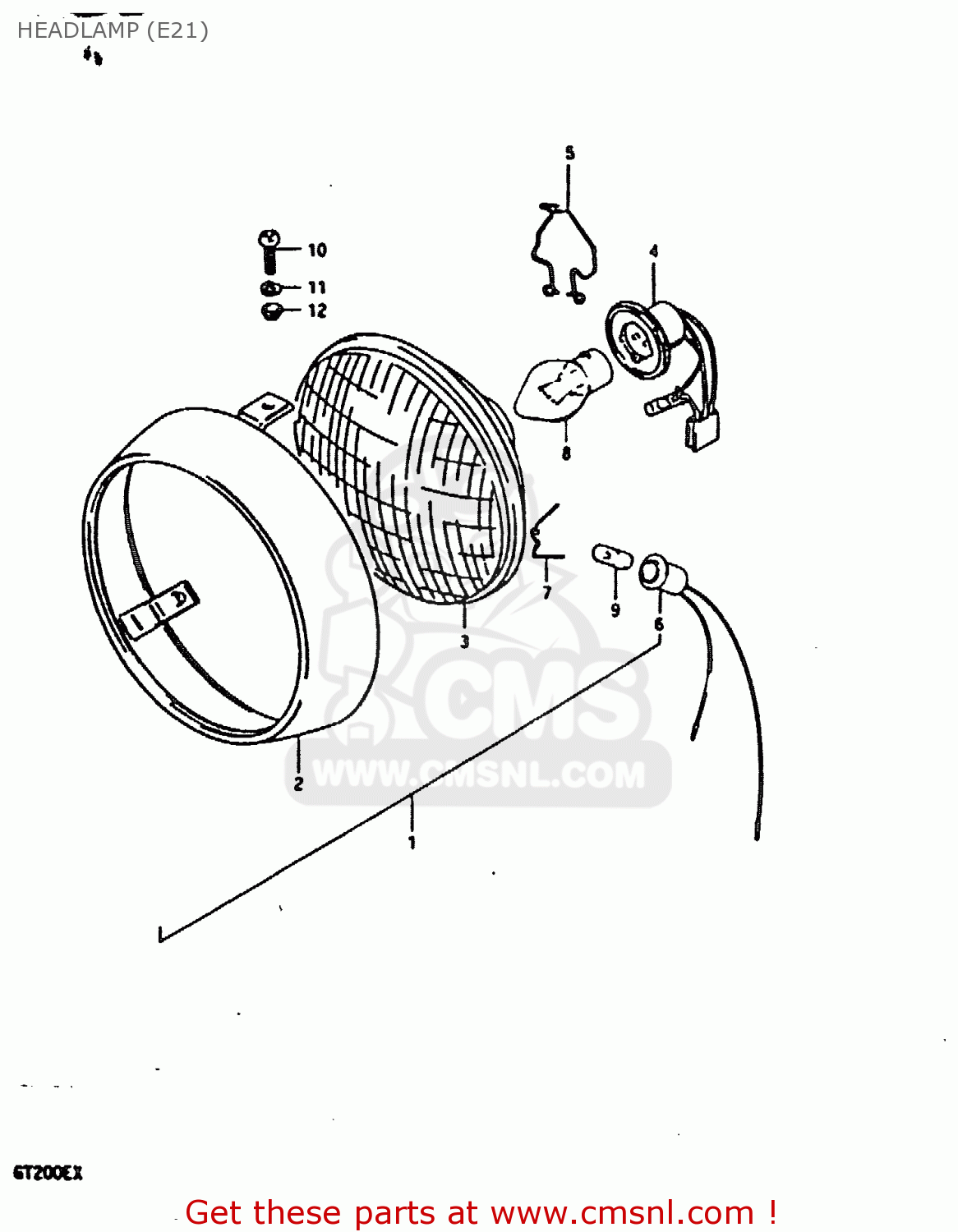

Headlamp (e21) diagram GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

HEADLAMP (E21) GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

HEADLAMP (E21) GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

3510011310999
ref: 1

HEADLAMP ASSY

€ 91.00

2

3511144630
ref: 2

RIM

€ 46.50

3

3512118660
ref: 3

UNIT

€ 87.00

4

3517136650
ref: 4

SOCKET

€ 27.00

5

3517228660
ref: 5

CLAMP,HEADLAMP

€ 7.00

6

3611828660
ref: 6

SOCKET

€ 11.50

7

3512829611
ref: 7

SPRING,HEAD LAMP UNIT

€ 3.50

8

0947112020
ref: 8
EXECUTED LOCALLY

BULB(12V35/35W)

€ 108.50

9

0947112063
ref: 9
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

10

0912505022
ref: 10

SCREW

€ 3.50

11

0916205003
ref: 11

WASHER,LOCK

€ 2.00

12

0916906021
ref: 12

WASHER

€ 2.50
