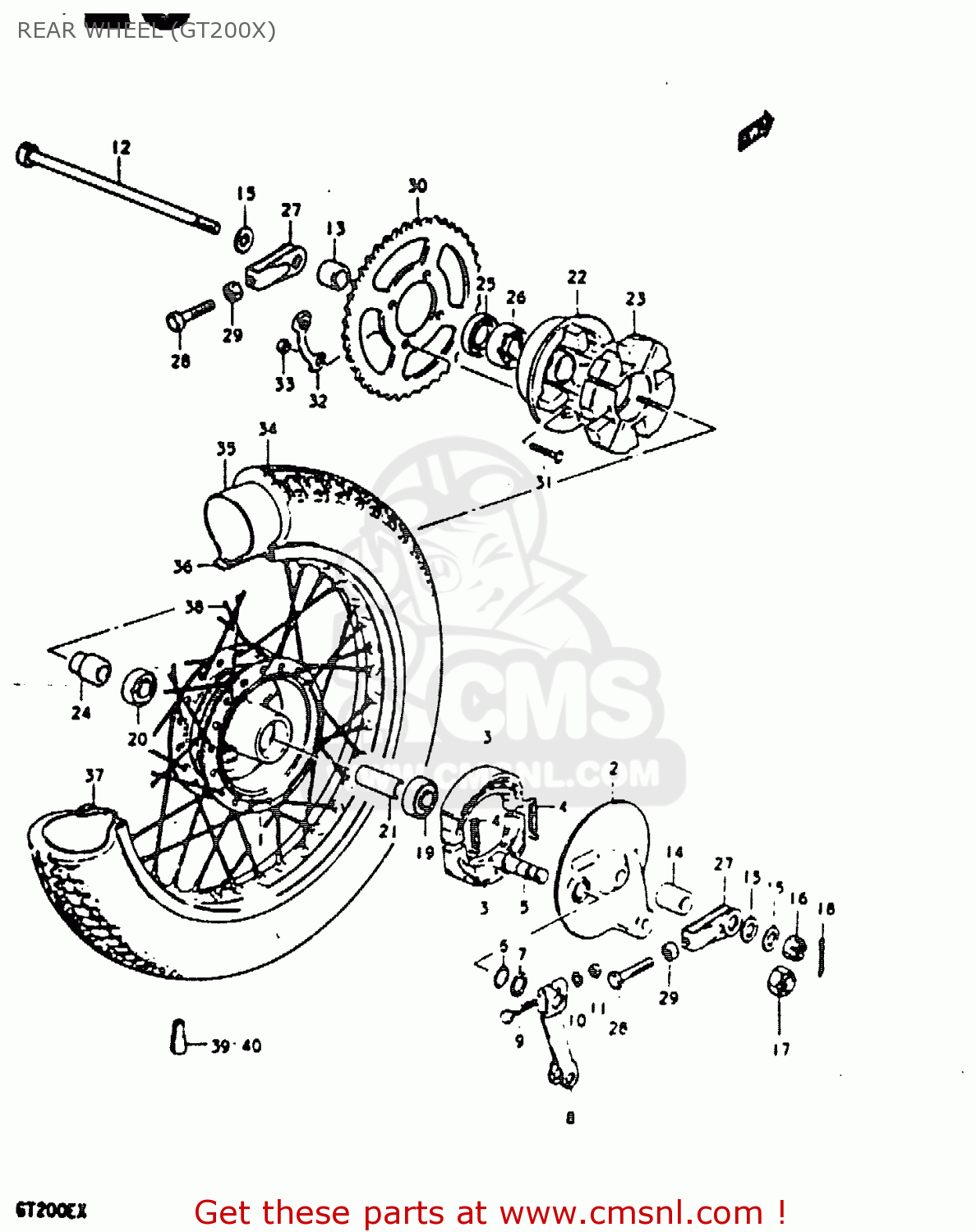

REAR WHEEL (GT200X)

ref

part #

description

quantity

1

6411007603
ref: 1

HUB,REAR WHEEL

€ 149.00

2

6421039100
ref: 2

PANEL, REAR WHEEL

€ 165.50

3

5441007002
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

6445139100
ref: 8

LEVER,RR BRAKE CAM

€ 48.00

9

0910006078
ref: 9

BOLT(6X33)

€ 2.50

10

0832221068
ref: 10

WASHER

€ 2.00

11

0831011068
ref: 11

NUT

€ 2.50

12

6471148000
ref: 12

AXLE,REAR

€ 35.50

13

0918015042
ref: 13

SPACER(15X28X19)

€ 5.50

14

0918015002
ref: 14

SPACER(15.2X26X33)

€ 5.00

15

0832211148
ref: 15

WASHER

€ 2.00

16

0914114001
ref: 16

NUT

€ 4.50

17

NOTUSED
ref: 17

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

18

0411130308
ref: 18

COTTER PIN

€ 1.50

19

0814463027
ref: 19

BEARING

€ 17.50

20

0814362027
ref: 20

BEARING

€ 12.50

21

0918015011
ref: 21

SPACER(15.3X21.7X63)

€ 7.50

22

6461107000
ref: 22

DRUM,RR SPROCKET

€ 47.00

23

6465107001
ref: 23

ABSORBER ASSY,HUB SHOCK

€ 16.00

24

6473339100
ref: 24

RETAINER,RR SPROCKET MTG

€ 17.00

25

0928528001
ref: 25

SEAL,OIL(28X47X7)

€ 11.50

26

0811362040
ref: 26

Bearing

€ 28.00

27

6141036002
ref: 27

ADJUSTER,CHAIN

€ 11.50

28

0910408006
ref: 28

BOLT

€ 3.00

29

0831012088
ref: 29

NUT

€ 2.00

30

6451110300
ref: 30

SPROCKET,RR

€ 62.00

31

0910508001
ref: 31

BOLT(8X33.5)

€ 2.50

32

0916908012
ref: 32

WASHER

€ 2.00

33

0831012088
ref: 33

NUT

€ 2.00

34-1

6510036600
ref: 34-1

TIRE

€ 120.00

34-2

NOTUSED
ref: 34-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

35

5520011601
ref: 35

TUBE,INNER

€ 24.50

36

5526111010
ref: 36

PROTECTOR,INNER TUBE

€ 3.50

37

6531110300
ref: 37

RIM, WHEEL

€ 0.00

38

6530010830
ref: 38

SPOKE SET

€ 35.00

39

5541111000
ref: 39
20G

BALANCER,WHEEL (B)

€ 4.50

40

5541211000
ref: 40
30G

BALANCER,WHEEL (30G)

€ 8.00

all assemblies
