MAGNETO

GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

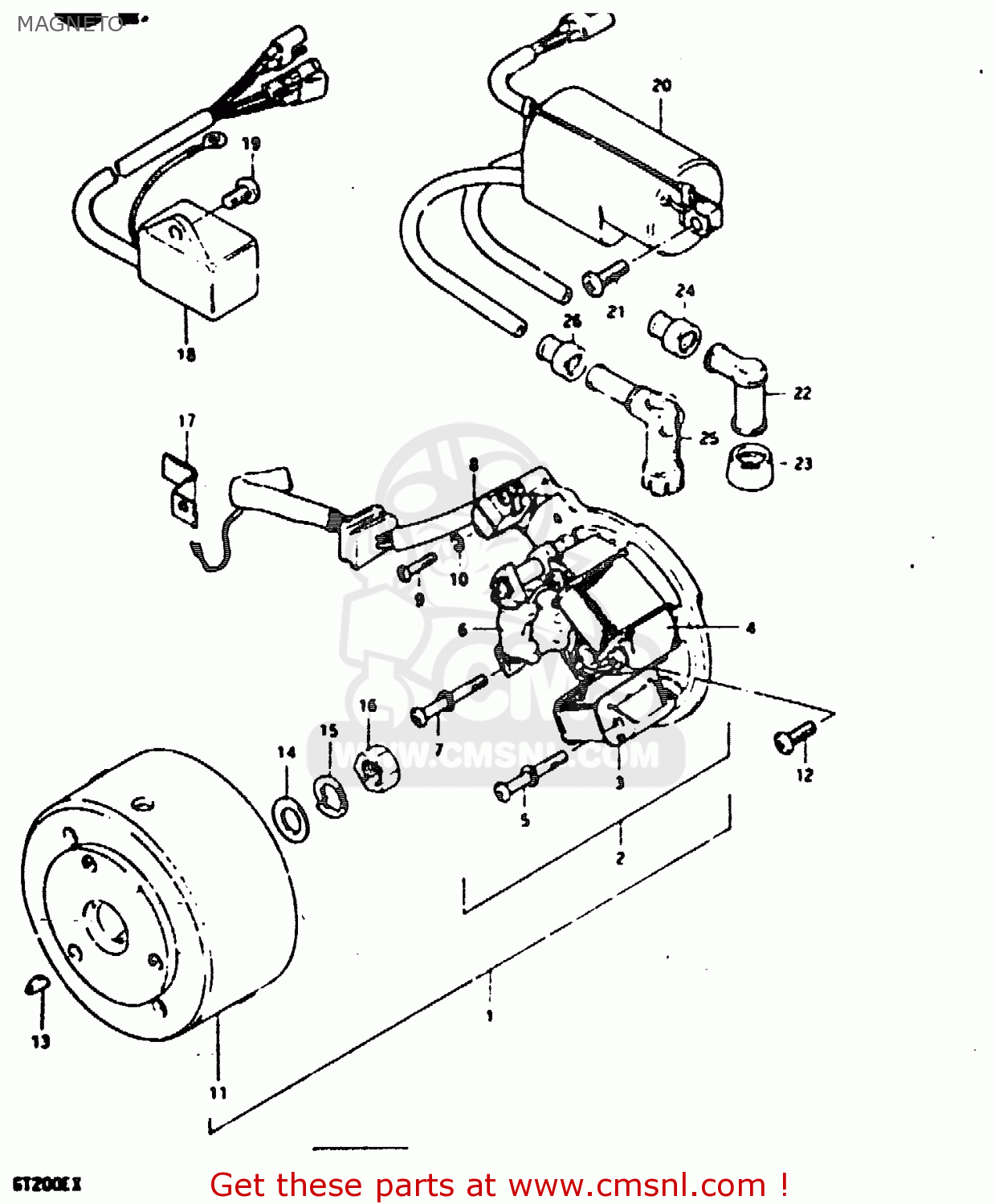

Magneto diagram GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

MAGNETO GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)
MAGNETO GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)
MAGNETO GT200E 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
3210010200
ref: 1
MAGNETO ASSY
€ 0.00
2
3210110200
ref: 2
STATOR ASSY
€ 0.00
3
3213110200
ref: 3
COIL,LIGHTING(A)
3213110200
€ 49.00
4
3213210200
ref: 4
COIL, LIGHTING B
3213210200
€ 61.50
5
3235110200
ref: 5
SCREW
€ 1.50
6
3214010200
ref: 6
COIL, PRINAR,
€ 114.50
7
3235110210
ref: 7
SCREW
€ 1.50
8
3215110200
ref: 8
COIL,PULSER
3215110200
€ 71.00
9
0211204208
ref: 9
SCREW
0211204208
€ 1.00
10
0832121048
ref: 10
LOCK WASHER
0832121048
€ 2.00
11
3210210200
ref: 11
ROTCH
€ 0.00
12
0211206168
ref: 12
SCREW
0211206168
€ 2.50
13
0834131039
ref: 13
KEY
0834131039
€ 2.00
14
0832211128
ref: 14
WASHER
0832211128
€ 2.00
15
0832121128
ref: 15
WASHER,LOCK 12
0832121128
€ 2.50
16
0831012128
ref: 16
NUT
0831012128
€ 3.00
17
3237110200
ref: 17
CLAMP
€ 0.00
18
3290010200
ref: 18
C.D.I. UNIT ASSY
€ 278.50
19
0211206128
ref: 19
SCREW 6X12
0211206128
€ 2.00
20
3341010200
ref: 20
COIL ASSY, IGNITION
3341010200
€ 153.50
21
0211206208
ref: 21
SCREW
€ 2.00
22
NOTUSED
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
23
NOTUSED
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
24
NOTUSED
ref: 24
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
25
3351039110
ref: 25
E2, E6, E21, E22, E2
CAP,SPARK PLUG
3351039110
€ 61.50
26
3354298000
ref: 26
E2, E6, E21, E22, E2
SEAL,SPARK PLU
3354298000
€ 4.50
