CARBURETOR (GT750K)

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

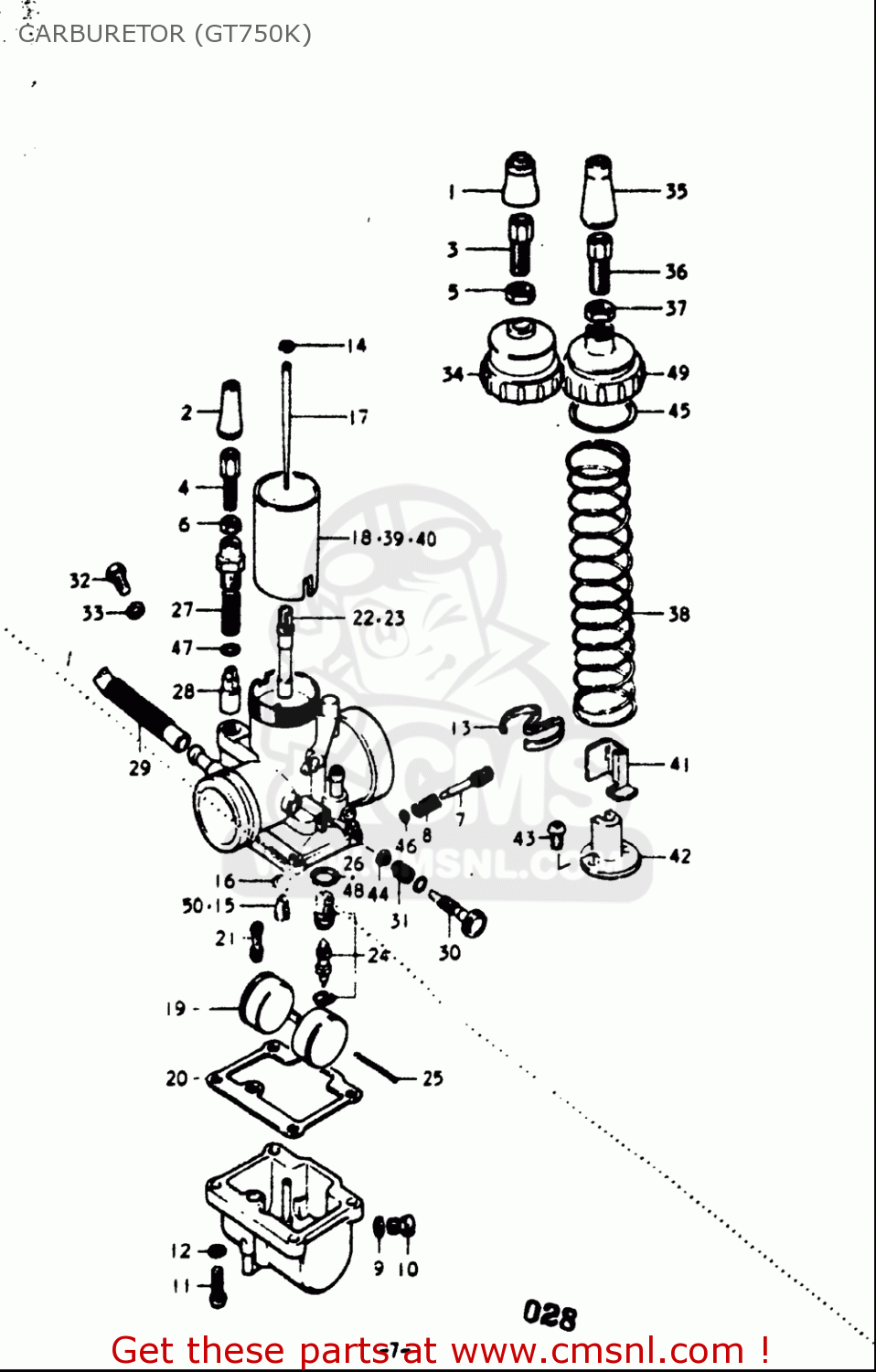

Carburetor (gt750k) diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

CARBURETOR (GT750K) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (GT750K) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (GT750K) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
1368116601
ref: 2
CAP
1368116601
€ 7.00
4
1357748110
ref: 4
ADJUSTER,CABLE
1357748110
€ 8.00
6
1366116600
ref: 6
NUT
1366116600
€ 5.00
7
1326915010
ref: 7
SCREW,PILOT AIR
1326915010
€ 10.50
8
1326801010
ref: 8
SPRING
1326801010
€ 3.50
9
1324905010
ref: 9
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
10
1324705010
ref: 10
PLUG
1324705010
€ 6.00
11
0211204163
ref: 11
SCREW 4X16
0211204163
€ 1.00
12
0832101043
ref: 12
WASHER,LOCK
0832101043
€ 2.00
14
1339410010
ref: 14
CLIP
1339410010
€ 4.50
15-1
0949120012
ref: 15-1
JET,MAIN(102.5)
0949120012
€ 8.50
16
1338203110
ref: 16
WASHER
1338203110
€ 2.50
19
1325218010
ref: 19
FLOAT
1325218010
€ 28.50
20
1325133110
ref: 20
GASKET,FLOAT CAHMBER (NAS)
1325133110
€ 10.50
21
0949230006
ref: 21
JET,PILOT(30)
0949230006
€ 8.50
24
1337041500
ref: 24
VALVE ASSY,NEEDLE
1337041500
€ 61.50
25
1325401010
ref: 25
PIN,FLOAT
1325401010
€ 3.00
26
1339216600
ref: 26
GASKET,MAIN JET HOLDER (NAS)
1339216600
€ 3.00
27
1341718630
ref: 27
SPRING
1341718630
€ 6.00
28
1341101010
ref: 28
PLUNGER,STARTER
1341101010
€ 14.00
31
1326803110
ref: 31
SPRING,THROTTLE SCREW
1326803110
€ 3.50
32
1366418654
ref: 32
BOLT
1366418654
€ 10.50
33
1366331010
ref: 33
GASKET,THRO VALVE INSPECTION (NAS)
1366331010
€ 3.50
35
1368116601
ref: 35
CAP
1368116601
€ 7.00
36
1357748110
ref: 36
ADJUSTER,CABLE
1357748110
€ 8.00
37
1366116600
ref: 37
NUT
1366116600
€ 5.00
42
1358140200
ref: 42
CONNECTOR
1358140200
€ 7.00
43
0211233083
ref: 43
SCREW
€ 2.00
44
1329134010
ref: 44
COVER
1329134010
€ 5.50
46
1329533010
ref: 46
O RING
1329533010
€ 4.50
48
1339216600
ref: 48
GASKET,MAIN JET HOLDER (NAS)
1339216600
€ 3.00
50-1
0949197003
ref: 50-1
JET,MAIN(97.5)
0949197003
€ 8.50
50-2
0949121016
ref: 50-2
JET,MAIN(105)
0949121016
€ 9.50
50-3
0949121014
ref: 50-3
JET,MAIN(107.5)
0949121014
€ 8.50
50-4
0949122016
ref: 50-4
JET,MAIN(110)
0949122016
€ 7.00
50-5
0949122015
ref: 50-5
JET,MAIN(112.5)
0949122015
€ 11.00
