REAR FENDER (GT750A & B)

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

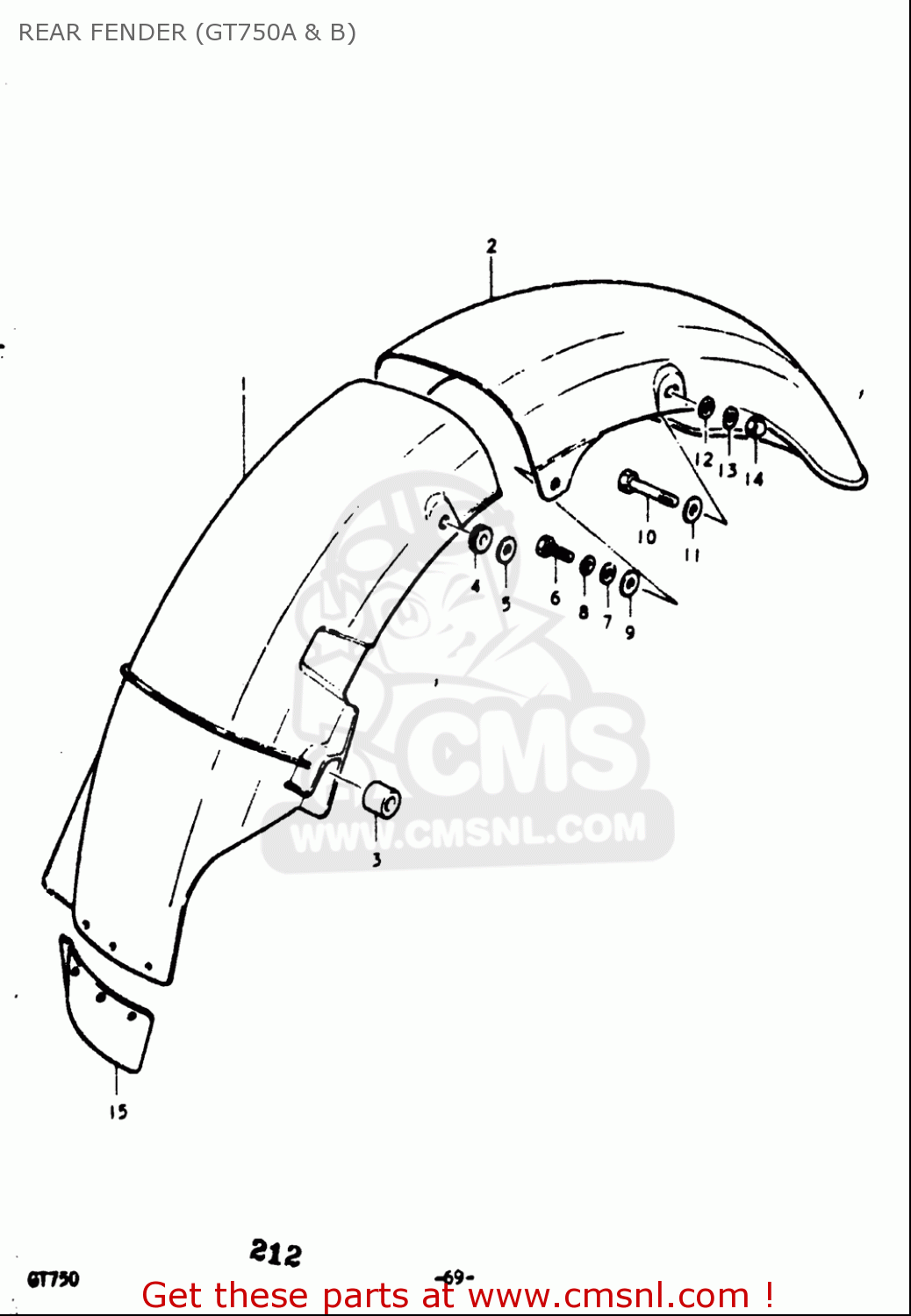

Rear fender (gt750a & b) diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

REAR FENDER (GT750A & B) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

REAR FENDER (GT750A & B) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311231002
ref: 1

BODY,RR FENDER FR

€ 77.00

3

0932905003
ref: 3

CUSHION

€ 4.50

4

0932006504
ref: 4

CUSHION

€ 4.00

5

0916006084
ref: 5

WASHER(6.5X18X1.6)

€ 2.00

6-1

0150006207
ref: 6-1

BOLT

€ 2.00

6-2

0150006127
ref: 6-2

BOLT

€ 2.00

7

0832201067
ref: 7

WASHER

€ 2.00

8

0832101067
ref: 8

WASHER,LOCK

€ 2.50

9

0918006041
ref: 9

SPACER (6.5X20X5)

€ 2.50

10

0150008507
ref: 10

BOLT

€ 3.00

11

0916008080
ref: 11

WASHER (8.2X22X3.2)

€ 2.50

12

0832201087
ref: 12

WASHER

€ 2.00

13

0832101087
ref: 13

WASHER,LOCK

€ 2.00

14

0831310087
ref: 14

NUT

€ 2.50

15

6341115101
ref: 15

GUIDE,RR FENDER MUD

€ 9.00
