RADIATOR COVER

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

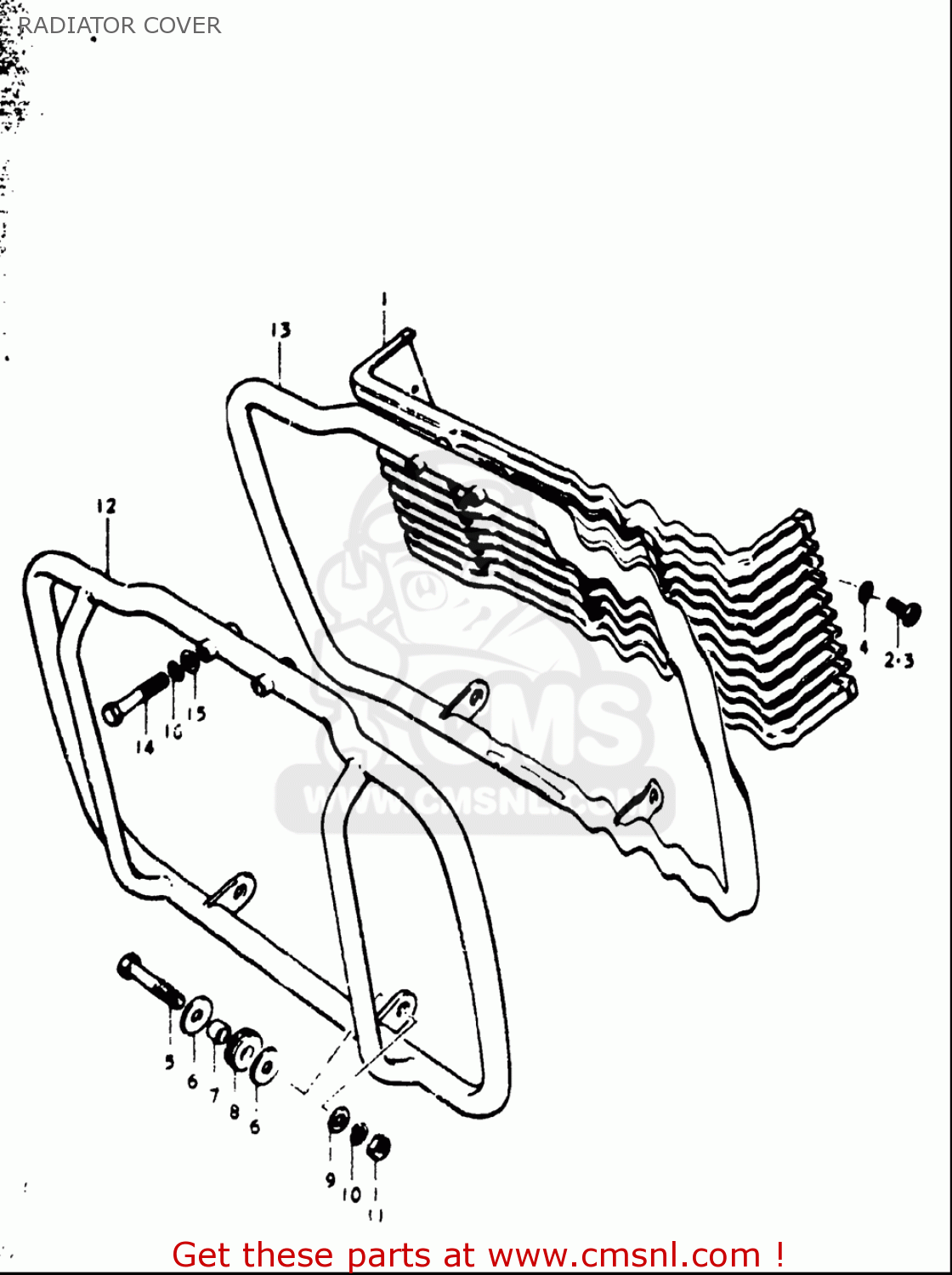

Radiator cover diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

0214205127
ref: 2

SCREW

€ 1.50

0928006004
ref: 4

O RING(D:3.5,ID:5.8)

€ 2.00

015000840A
ref: 5

BOLT

€ 3.00

6-1

0916008135
ref: 6-1

WASHER(8.5X28X1.6)

€ 2.00

0918008199
ref: 7

SPACER,8.5X14X9

€ 2.50

0932013005
ref: 8

CUSHION

€ 4.50

0832201087
ref: 9

WASHER

€ 2.00

0832101087
ref: 10

WASHER,LOCK

€ 2.00

0831000087
ref: 11

NUT

€ 2.00

0150008507
ref: 14

BOLT

€ 3.00

15-1

0832201087
ref: 15-1

WASHER

€ 2.00

15-2

0916008080
ref: 15-2

WASHER (8.2X22X3.2)

€ 2.50

0832101087
ref: 16

WASHER,LOCK

€ 2.00
