SEAT

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

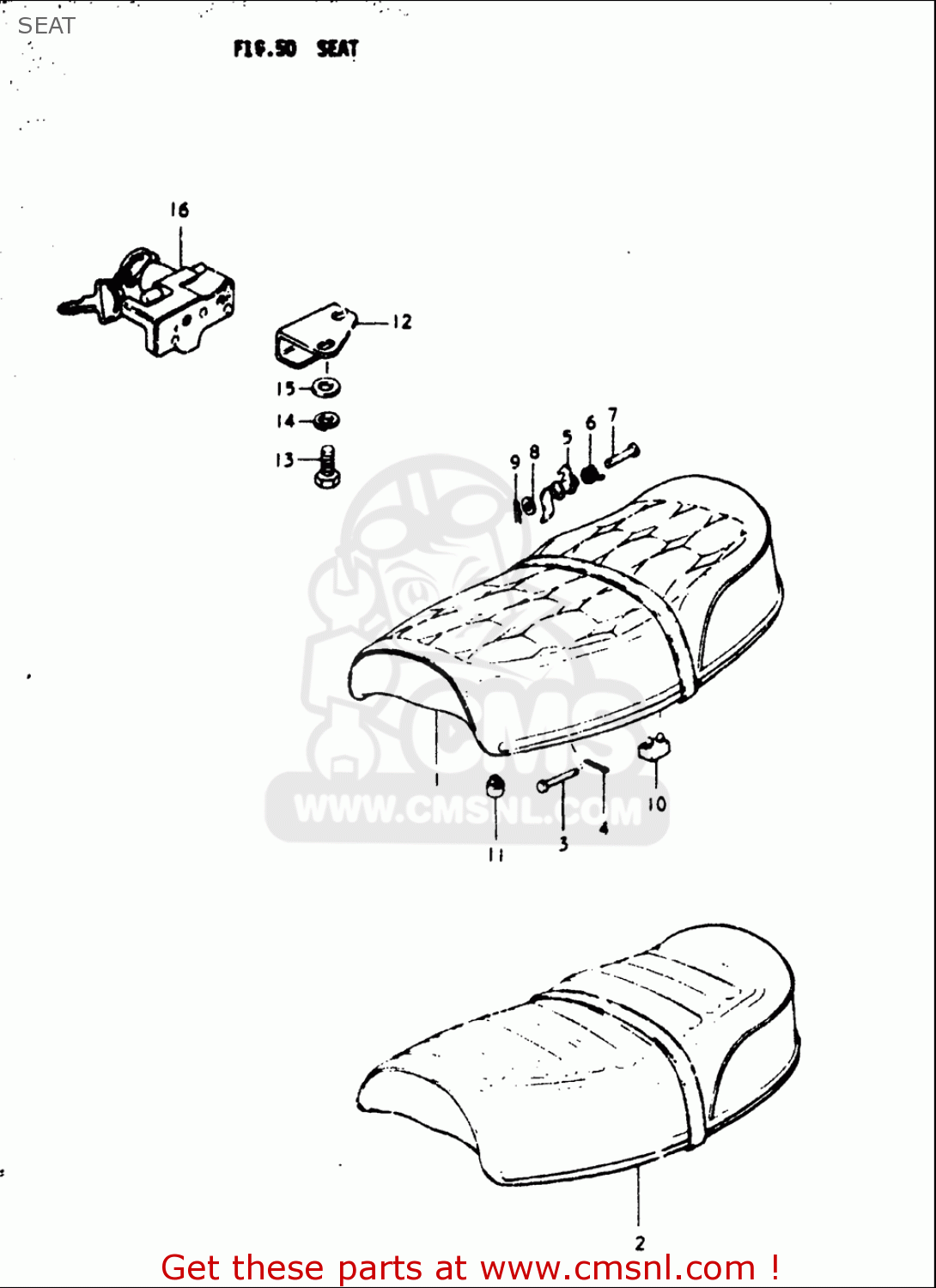

Seat diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

SEAT GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

SEAT GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510031X00865
ref: 1

SEAT ASSY

€ 914.50

2-2

4510031X00865
ref: 2-2

SEAT ASSY

€ 914.50

2-3

4510031X00865
ref: 2-3

SEAT ASSY

€ 914.50

2-4

4510031X00865
ref: 2-4

SEAT ASSY

€ 914.50

3

0920006018
ref: 3

PIN

€ 2.00

4

0411120158
ref: 4

PIN

€ 1.50

6

0944815001
ref: 6

SPRING

€ 3.50

7

0920006018
ref: 7

PIN

€ 2.00

8

0832201067
ref: 8

WASHER

€ 2.00

10

0932108006
ref: 10

CUSHION

€ 3.00

11

0932110001
ref: 11

CUSHION

€ 2.50

12

4521336200
ref: 12

PLATE,SEAT CLAMP GUIDE

€ 4.00

13

0150006127
ref: 13

BOLT

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

0832201067
ref: 15

WASHER

€ 2.00

16-1

9570036811
ref: 16-1

LOCK SET,HELMET

€ 30.50
