Buy Suzuki GT Parts Online


OIL PUMP

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

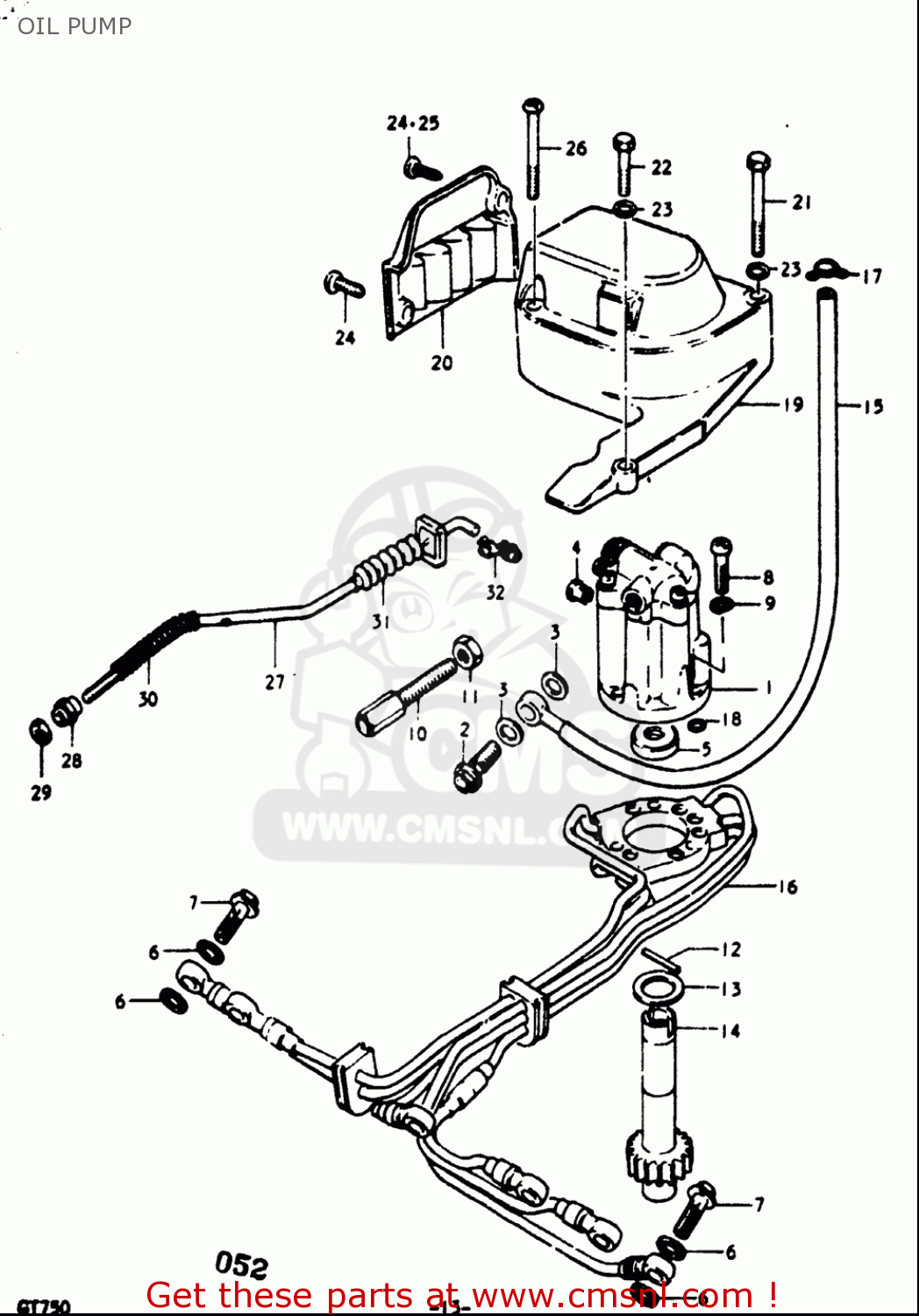

Oil pump diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

OIL PUMP GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
OIL PUMP GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
OIL PUMP GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
0936006003
ref: 2
UNION BOLT
0936006003
€ 5.00
3
0916806004
ref: 3
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
4
1629203112
ref: 4
TERMINAL,CABLE
1629203112
€ 3.50
5
0928508002
ref: 5
SEAL,OIL(8X16X4)
0928508002
€ 16.50
6
0916806004
ref: 6
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
7
0936006003
ref: 7
UNION BOLT
0936006003
€ 5.00
8
0211205257
ref: 8
SCREW
0211205257
€ 2.00
9
0832101057
ref: 9
WASHER,LOCK
0832101057
€ 2.00
10
0911908014
ref: 10
BOLT
0911908014
€ 3.50
11
0831000087
ref: 11
NUT
0831000087
€ 2.00
12
0926103010
ref: 12
PIN(3X13.8)
0926103010
€ 3.00
13
0918114167
ref: 13
SHIM(14X22X1)
0918114167
€ 3.50
17-1
0940010302
ref: 17-1
CLAMP
0940010302
€ 9.50
17-2
0940108401
ref: 17-2
CLIP
0940108401
€ 1.50
18
0928003002
ref: 18
O RING(D:1.9,ID:3.8)
0928003002
€ 2.00
21
0110705458
ref: 21
BOLT 5X45
€ 2.00
22
0150005203
ref: 22
BOLT 5X20
€ 2.50
23
0832201057
ref: 23
WASHER
0832201057
€ 2.50
24
0211205167
ref: 24
SCREW
0211205167
€ 2.50
26
0211205457
ref: 26
SCREW
0211205457
€ 1.50
27
1676131201
ref: 27
ROD,OIL PUMP CONTROL
1676131201
€ 72.50
28
0914004001
ref: 28
NUT
0914004001
€ 5.50
29
0914004002
ref: 29
NUT
0914004002
€ 2.50
31-1
1676531201
ref: 31-1
BOOT,OIL PUMP CONTROL ROD
1676531201
€ 12.50
32-2
1676531201
ref: 32-2
BOOT,OIL PUMP CONTROL ROD
1676531201
€ 12.50
32
1676465010
ref: 32
HOLDER,OIL PUMP ROD
1676465010
€ 6.50
