Buy Suzuki GT Parts Online


TURN SIGNAL LAMP (GT750K

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

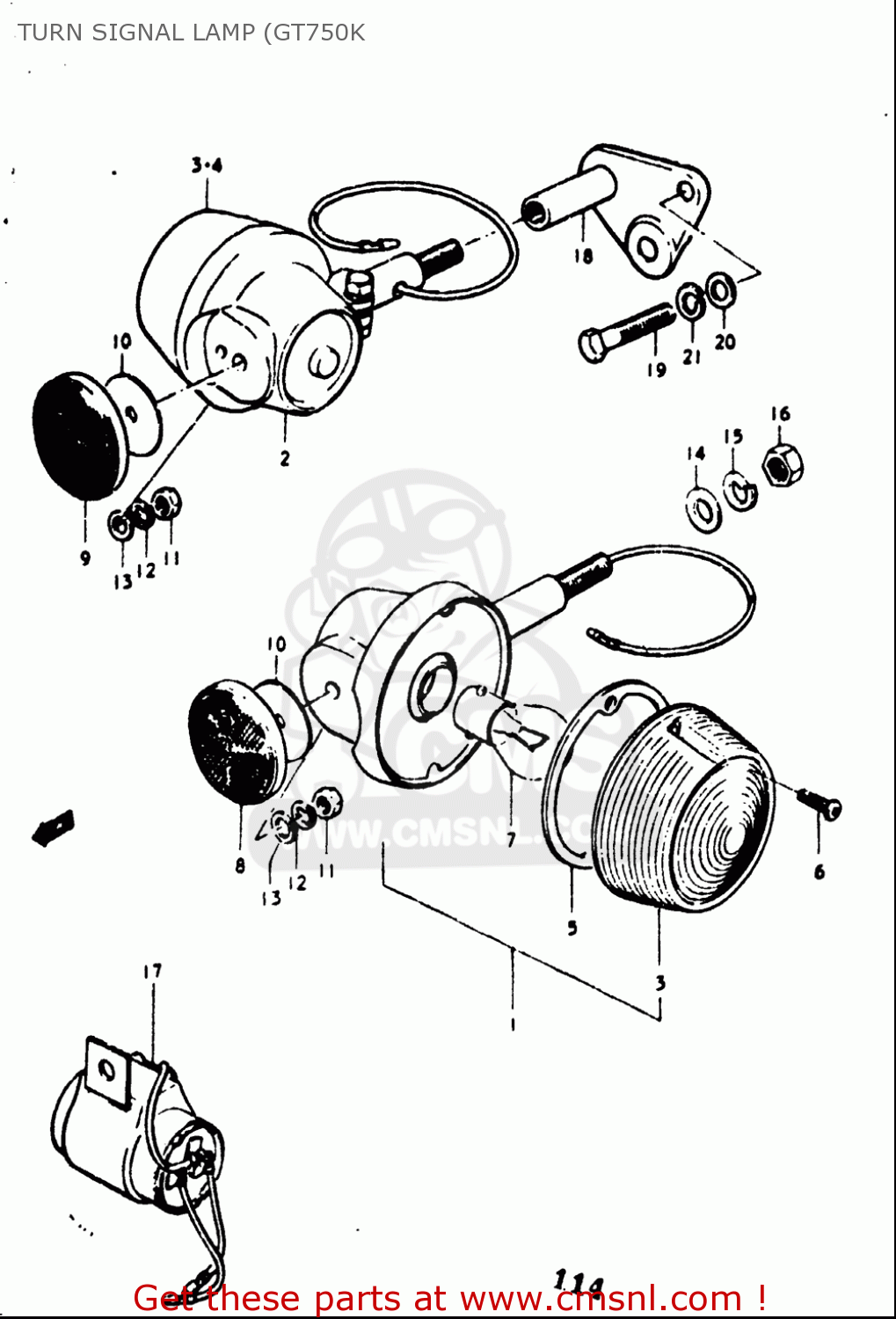

Turn signal lamp (gt750k diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

TURN SIGNAL LAMP (GT750K GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
TURN SIGNAL LAMP (GT750K GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
TURN SIGNAL LAMP (GT750K GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
3561231010
ref: 3
LENS
3561231010
€ 41.00
5
3561303610
ref: 5
GASKET,TURNSIGNAL LENS (NAS)
3561303610
€ 24.00
6
0211203163
ref: 6
SCREW
0211203163
€ 1.50
7
0947112006
ref: 7
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
8
3595049080
ref: 8
REFLEX REFLECTOR,RR
3595049080
€ 17.50
11
0831000057
ref: 11
NUT
0831000057
€ 2.50
12
0832101057
ref: 12
WASHER,LOCK
0832101057
€ 2.00
13
0916005045
ref: 13
WASHER(5.5X18X1)
0916005045
€ 2.00
14
0832201107
ref: 14
WASHER
0832201107
€ 2.50
15
0832101107
ref: 15
WASHER,LOCK
0832101107
€ 2.00
16
0831000107
ref: 16
NUT
0831000107
€ 2.50
17
3861032210
ref: 17
RELAY,TURN SIGNAL
3861032210
€ 79.00
18-1
4164033001
ref: 18-1
BRACKET, REAR TURN SIGNAL RH
4164033001
€ 28.00
19
0150010203
ref: 19
BOLT
€ 3.50
20
0832201107
ref: 20
WASHER
0832201107
€ 2.50
21
0832101107
ref: 21
WASHER,LOCK
0832101107
€ 2.00
